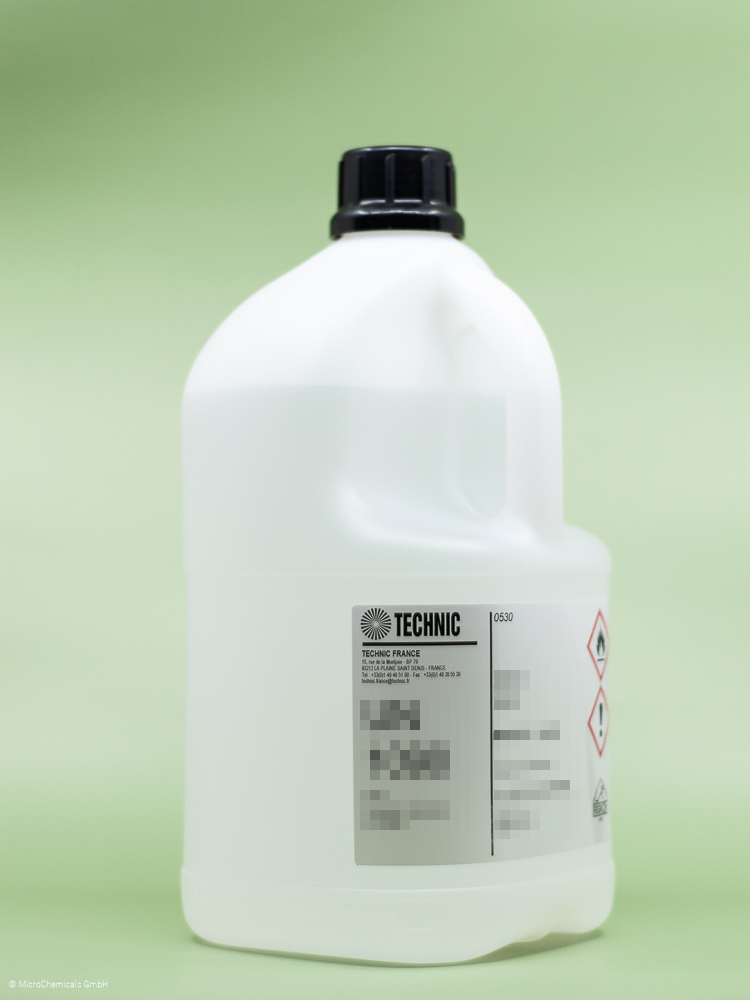

TechniStrip P1331 - 5.00 l - MOS
TECHNIC France
TechniStrip® P1331 is, for alkaline sensitive materials, an alternative to the P1316.
The prices are visible after registration.
Send us an inquiry if you have any questions about articles, purchase quantities, delivery times or sample requests!
Product number:
TP1331M
Manufacturer:
TECHNIC France
Product information "TechniStrip P1331 - 5.00 l - MOS"
TechniStrip® P1331
High Performance Remover
General Information
TechniStrip® P1331 is a remover with very strong stripping power for Novolak-based resists (including all AZ® positive resists), epoxy-based coatings, polyimides and dry films. At a typical application temperatures around 75°C TechniStrip® P1331 may dissolve cross-linked resists without residue also, e.g. through dry etching or ion implantation. The remover can also be used in spraying processes.
TechniStrip® P1331 is, for alkaline sensitive materials, an alternative to the P1316.
Product Properties
- Flashpoint: 100,5°C
- Viscosity (20°C): < 2 cP
- Water Solubility: Totally miscible
- Boiling point: 189°C
- Density (at 20°C): 1.109 g/cm3
Compatibility
- Metals: attacked Al, Cu, Au
- Metals: no attack on Ta, Ni, Ti, TiN
- Substrates: Si, SiO2
Data on selectivity and compatibility are manufacturer information and do not claim to be complete. Please contact us for further details.
Main Features
- Very high stripping rate, >10µm/min
- Great resin dissolution efficiency
- Enhanced resin loading capacity, > 2 times to standard POR
- THB121N, 21µm, 8” wafer- up to 15 wafers/liter
- Bath life up to 72 hours @ 70°C
- Total metal compatibility, <10A/min @60°C
- Complete water miscibility
- Safety: labeled irritant
Some Applications
TechniStrip® P1316 is a powerful NMP-free remover for:
- Novolak-based positive resists such as all positive AZ® resists
- Epoxy-based resists
- Polyimides, bonding glues
- Dry films
Further Information
MSDS:
Safety Data Sheet TechniStrip P1331 (MOS) english
Sicherheitsdatenblatt TechniStrip P1331 (MOS) german
TDS:
Technical Data Sheet TechniStrip P1331 (MOS) english
Specs:
Specs TechniStrip P1331 (MOS)
Application Notes:
Photoresist Removal english
Fotolack entfernen german
Related products
AZ 100 Remover - 5.00 l
1000100
AZ® 100 Remover
Universal Photoresist Stripper
General Information
AZ®100 Remover is based on solvent and amine (alkaline). AZ®100 Remover is used for photoresist stripping with low attack to aluminium. Low hazard is achieved by the use of ethanol amine.
Low evaporation rate allows the use at elevated temperatures (up to 80°C), high efficiency (>3000 wafer per litre) helps saving costs. Where attack to aluminium is of no concern, it may even be diluted with water.
AZ®100 Remover is not compatible with AZ® nLof 2070 (AZ® nLof 2000 series) resists and other heavily cross linked resists.
Product Properties
Density (at 25°C): 0.955 kg/l
Color (Alpha): max. 20
Flashpoint (AP): 72°C
Normality (potentiometric): 3.1 mol/l
Boiling range: 159-194°C
Further Information
MSDS:
Safety Data Sheet AZ® 100 Remover english
Sicherheitsdatenblatt AZ® 100 Remover german
TDS:
Technical Data Sheet AZ® 100 Remover english
Application Notes:
Photoresist removal english
Fotolack entfernen german
AZ Remover 910 - 5.00 l
1000910
AZ® Remover 910
Organic Solvent Based Remover
General Information
AZ® Remover 910 is designed to strip and dissolve positive and negative-tone, chemically amplified and DNQ/Novolak resists. It is a solvent based product that contains acids and is therefore acidic. The formulation is EH&S friendly, it contains no NMP, DMAC, DMSO and no TMAH and it is amine free.
It is especially suited for our cross-linking negative resists such as AZ® nLof 2070, 2035 and 2020, the AZ® nLof 5110 and the AZ® 15nXT series resists.
Compatibility
It is suitable for processes where sensitive metals and other materials are exposed.
It shows low etch rates on:
Al, Cu, Ti, W, TiW, TiN, Sn, Ni
Si, SiO2
Data on selectivity and compatibility are manufacturer information and do not claim to be complete. Please contact us for further details.
Further Information
MSDS:
Safety Data Sheet AZ® Remover 910 english
Sicherheitsdatenblatt AZ® Remover 910 german
TDS:
Technical Data Sheet AZ® Remover 910 english
Application Notes:
Photoresist Removal english
Entfernen von Fotolack german
AZ Remover 920 - 5.00 l
1000920
AZ® Remover 920
Organic Solvent Based Remover
General Information
AZ® Remover 920 is designed for fast delamination and dissolution of photoresist patterns while maintaining broad compatibility with device substrates and metal films.
Merck’s proprietary solvent and additive blend is environmentally friendly and fully compliant with the European Union’s REACH regulatory code. Compatible with most AZ® positive resists (complete dissolution) and most AZ® negative resists (dissolution or delamination depending on degree of cross-linking).
Product Properties
Flashpoint: 84.4°C
Viscosity (20°C): 1.84 cSt
Boiling point: 188°C
Density (at 25°C): 1.084 g/cm3
Compatibility
Metals: no attack on Al, Cu, Ti, W, TiW, TiN, Sn, Ni
Substrates: Si, SiO2, GaAs
Data on selectivity and compatibility are manufacturer information and do not claim to be complete. Please contact us for further details.
Main Features
Fast delamination of photoresist patterns
Broad compatibility
Environmentally friendly
Some Applications
Bulk Photoresist Removal
Metal Lift-off Lithography
Cu Pillar Metallization Cleans
RDL Metallization Cleans
Delamination of Heavily Cured Photoresist Patterns & Organic Residues
Further Information
MSDS:
Safety Data Sheet AZ® Remover 920 english
Sicherheitsdatenblatt AZ® Remover 920 german
TDS:
Technical Data Sheet AZ® Remover 920 english
Application Notes:
Photoresist Removal english
Entfernen von Fotolack german

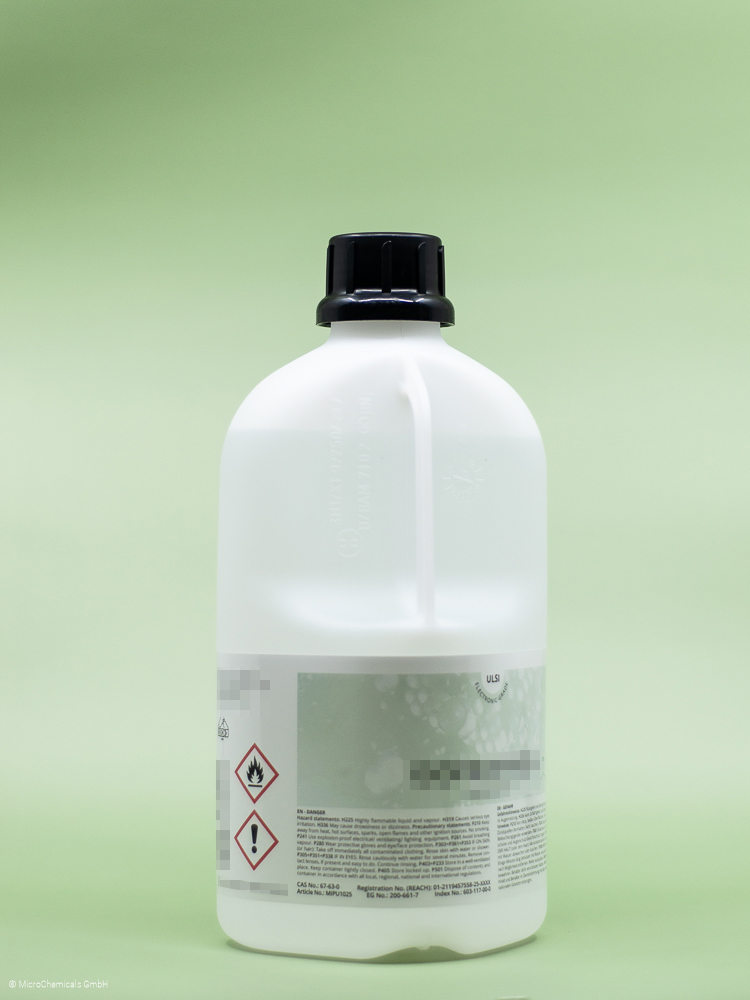

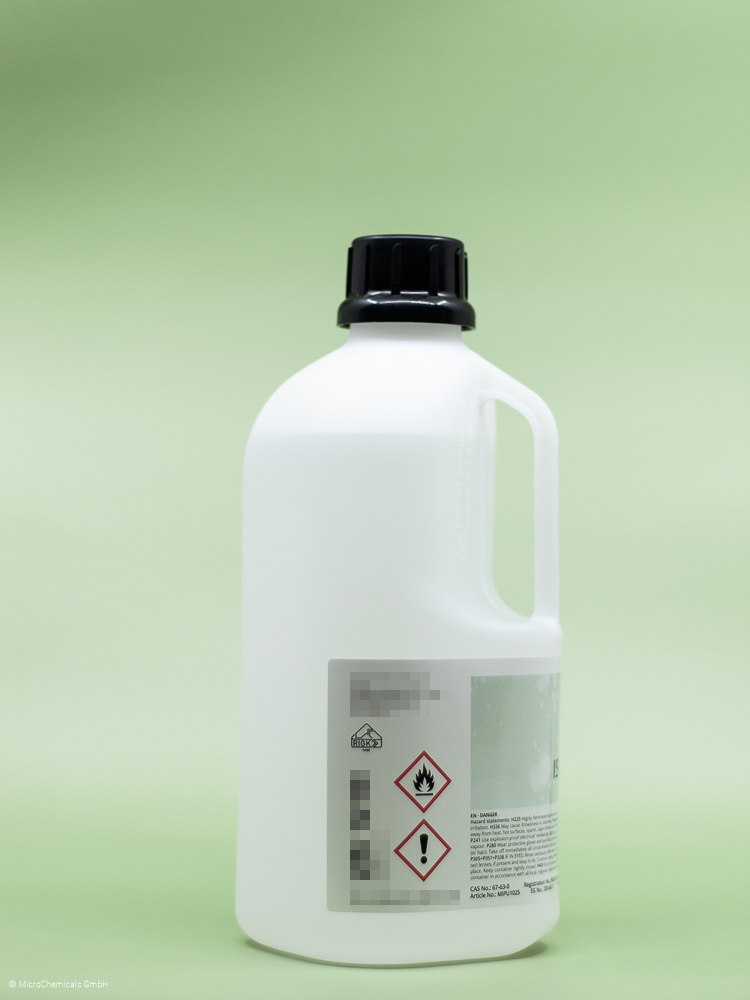

DMSO - 2.50 l - ULSI
