NB Semiplate NiMn 100 - 1.00 l - EUD/EVE!

NB Technologies GmbH

NB Semiplate NIMN 100 is a nickelsulfamate electroplating process, which incorporates small amounts of Mn in the deposit.

The prices are visible after registration.

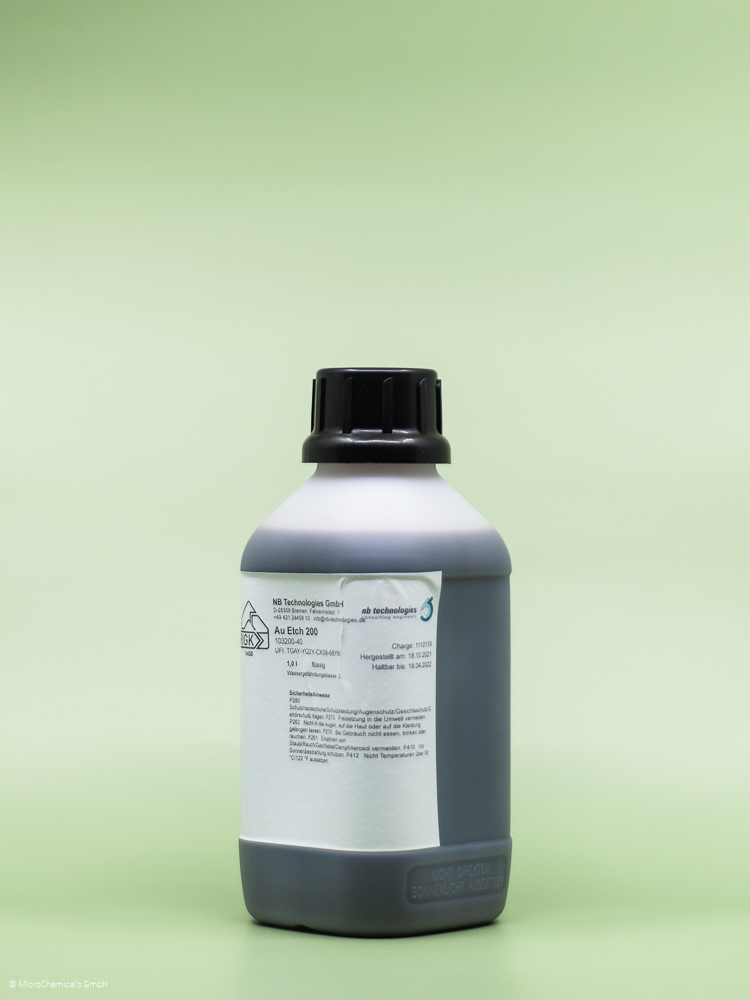

Bottle size

1.00 l

5.00 l

Price available after login.

Send us an inquiry if you have any questions about articles, purchase quantities, delivery times or sample requests!

Product enquiry / price on request

Product number: nbtnimn1001

Manufacturer: NB Technologies GmbH

Product information "NB Semiplate NiMn 100 - 1.00 l - EUD/EVE!"

NB Semiplate NIMN 100

Nickel-Manganese Plating Solution

General Information

NB Semiplate NIMN 100 is a nickelsulfamate electroplating process, which incorporates small amounts of Mn in the deposit. While properties of pure Ni deposits change dramatically during temperature treatments, the Mn content stabilises the hardness, ductility and yield strength under temperature treatments as high as 600°C. Secondly, such properties do not dramatically change in operation. Therefore, the process is well suited for Ni films used for micro-electromechanical functions, as required for sensors and actuators in microsystem technology.

The process can be operated

for rather columnar growth without grain refiner and rather rough surface condition; this is the ready-to-use product status of NB Semiplate NIMN 100
or for fine-grained films and semi-rough surface using the grain refiner NI 100 ADD. AGENT

NB Semiplate NIMN 100 is manufactured to meet the requirements associated with the electroforming processes for the semiconductor industry and microsystem technology (MST). The NB Semiplate NIMN 100 process contains an anode activating agent in controlled amounts to enhance anode corrosion and prevent anode passivation. Deposit properties are easy to control and maintain.

NOTE: NB Semiplate NIMN 100 is a ready-to-use product. It is not necessary to add other materials for the initially start of the application. Over time, it may be necessary depending on the electrolyte and application to add additives (see data sheet). With adjusted photoresist processing, the NB Semiplate NINM 100 is compatible with common AZ^®- and TI resists.

Product Properties

High purity nickel depositions
High stability of mechanical properties under temperature and in operation
High ductility
High hardness
Fine grained or large grained
Medium mechanical stress impact of Mn incorporation (depending on operation condition)
No anode passivation
Good throwing power

Further Information

MSDS:
Safety Data Sheet NB Semiplate NIMN 100 english
Sicherheitsdatenblatt NB Semiplate NIMN 100 german

TDS:
Technical Data Sheet NB Semiplate NIMN 100 english

Application Notes:
Instruction NBT Sample Service for Plating Baths english
Anleitung NBT Probenservice für Galvanikbäder german
Plating Theory english
Galvanik Theorie german
Plating and Photoresist english
Galvanik und Fotolacke german

Further Information about Processing

Plating Solution:	NiMn
Resist compatible:	yes
