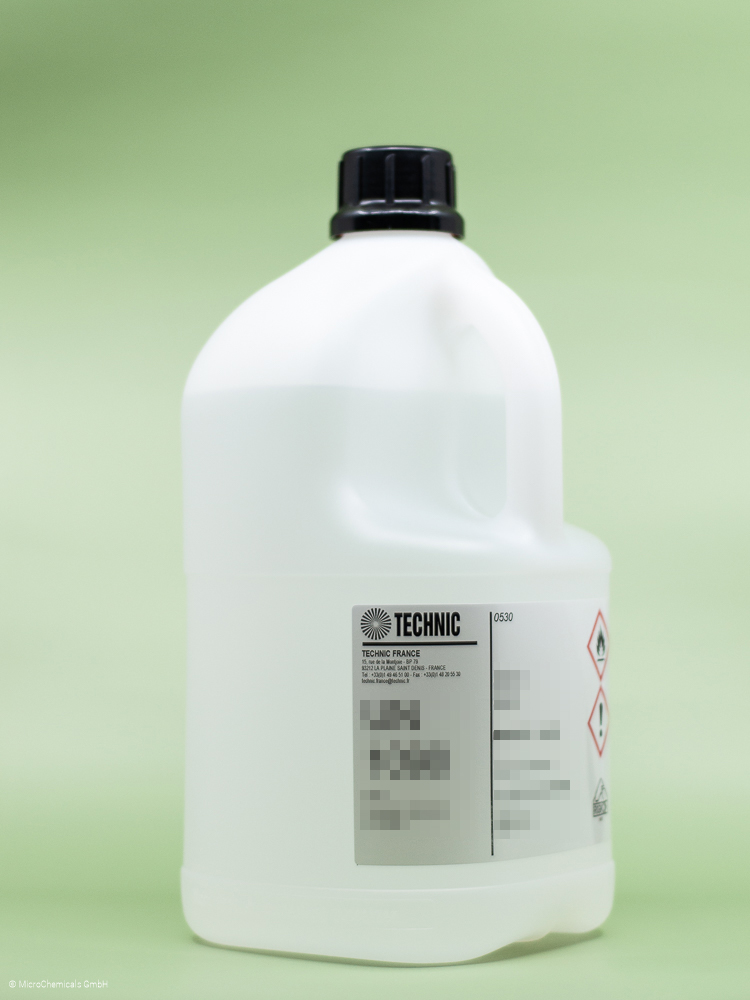

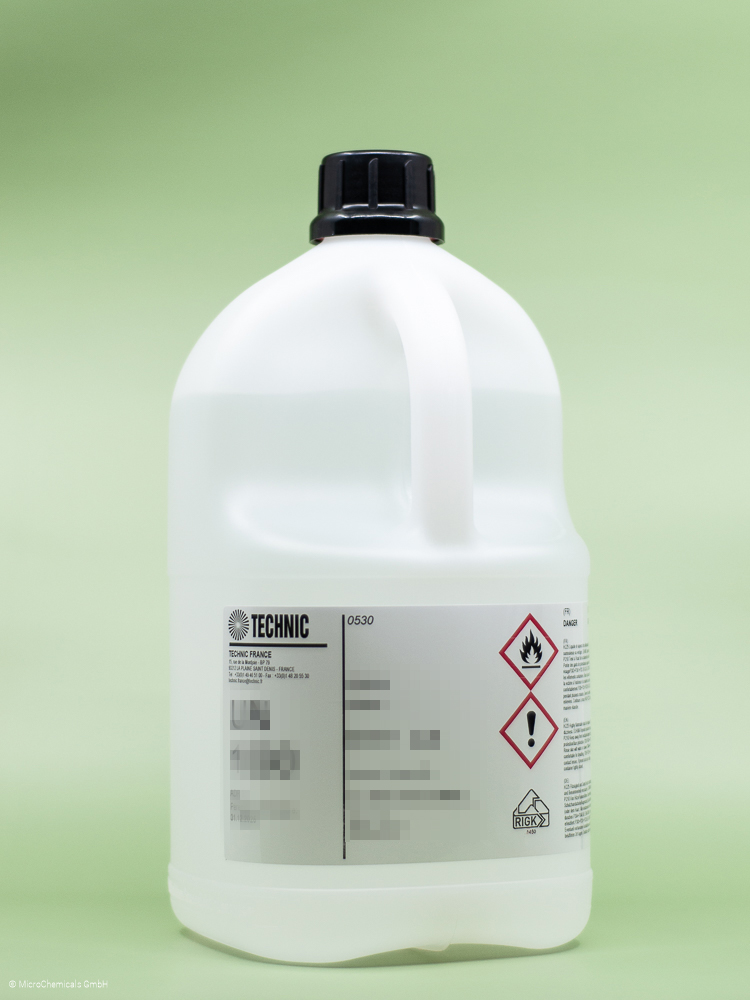

TechniStrip NI555 - 5.00 l - MOS
TECHNIC France
TechniStrip® NI555 was developed to address fast and complete resist dissolution.
The prices are visible after registration.
Send us an inquiry if you have any questions about articles, purchase quantities, delivery times or sample requests!
Product number:
TNI555M5
Manufacturer:
TECHNIC France
Product information "TechniStrip NI555 - 5.00 l - MOS"
TechniStrip® NI555
Stripper
General Information
TechniStrip® NI555 was developed to address fast and complete photoresist film dissolution thus avoiding filter clogging and subsequent insoluble resin debris deposition encountered with most of standard stripping solutions.
A cross-linked AZ® 15 nXT film peels from the substrate in DMSO-, NMP- or TMAH-based strippers, while TechniStrip® NI555 completely dissolves the resist film after 20 minutes.
Product Properties
- Flashpoint: 89°C
- Water Solubility: Totally miscible
- Boiling point: 190°C
- Density (at 20°C): 0.978 g/cm3
Compatibility
TechniStrip® NI555 is a powerful remover for Novolak-based negative resists and ultrathick positive resists such as:
- AZ® nLOF200 series
- AZ® 15nXT
- AZ® 40XT
NOTE: Please note that the TechniStrip® NI555 is not compatible with GaAs**, which can cause problems in the application.
- Metals: attacked GaAs
- Metals: no attack on Al, Cu, Ni, Ta, TaN, Ti, TiN, TiW, Au, Ag, Sn, Pd
Data on selectivity and compatibility are manufacturer information and do not claim to be complete. Please contact us for further details.
Further Information
MSDS:
Safety Data Sheet TechniStrip NI555 (MOS) english
Sicherheitsdatenblatt TechniStrip NI555 (MOS) german
TDS:
Technical Data Sheet TechniStrip NI555 (MOS) english
Specs:
Specs TechniStrip NI555 (MOS)
Application Notes:
Photoresist Removal english
Fotolack entfernen german
Related products

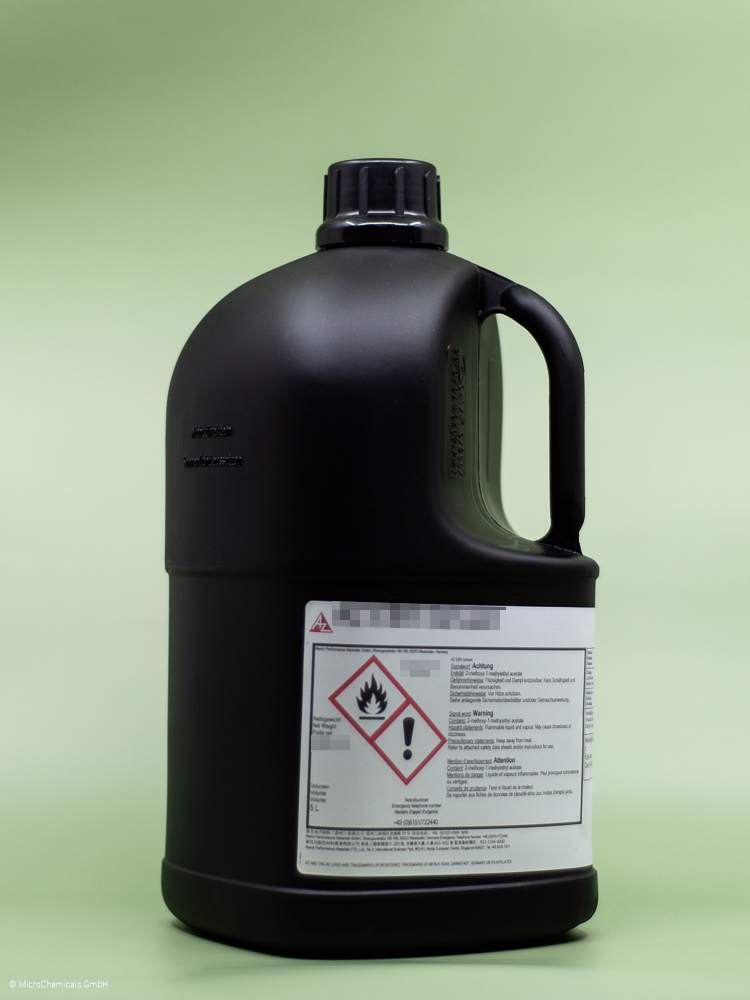

AZ 100 Remover - 5.00 l
1000100
AZ® 100 Remover
Universal Photoresist Stripper
General Information
AZ®100 Remover is based on solvent and amine (alkaline). AZ®100 Remover is used for photoresist stripping with low attack to aluminium. Low hazard is achieved by the use of ethanol amine.
Low evaporation rate allows the use at elevated temperatures (up to 80°C), high efficiency (>3000 wafer per litre) helps saving costs. Where attack to aluminium is of no concern, it may even be diluted with water.
AZ®100 Remover is not compatible with AZ® nLof 2070 (AZ® nLof 2000 series) resists and other heavily cross linked resists.
Product Properties
Density (at 25°C): 0.955 kg/l
Color (Alpha): max. 20
Flashpoint (AP): 72°C
Normality (potentiometric): 3.1 mol/l
Boiling range: 159-194°C
Further Information
MSDS:
Safety Data Sheet AZ® 100 Remover english
Sicherheitsdatenblatt AZ® 100 Remover german
TDS:
Technical Data Sheet AZ® 100 Remover english
Application Notes:
Photoresist removal english
Fotolack entfernen german
AZ Remover 910 - 5.00 l
1000910
AZ® Remover 910
Organic Solvent Based Remover
General Information
AZ® Remover 910 is designed to strip and dissolve positive and negative-tone, chemically amplified and DNQ/Novolak resists. It is a solvent based product that contains acids and is therefore acidic. The formulation is EH&S friendly, it contains no NMP, DMAC, DMSO and no TMAH and it is amine free.
It is especially suited for our cross-linking negative resists such as AZ® nLof 2070, 2035 and 2020, the AZ® nLof 5110 and the AZ® 15nXT series resists.
Compatibility
It is suitable for processes where sensitive metals and other materials are exposed.
It shows low etch rates on:
Al, Cu, Ti, W, TiW, TiN, Sn, Ni
Si, SiO2
Data on selectivity and compatibility are manufacturer information and do not claim to be complete. Please contact us for further details.
Further Information
MSDS:
Safety Data Sheet AZ® Remover 910 english
Sicherheitsdatenblatt AZ® Remover 910 german
TDS:
Technical Data Sheet AZ® Remover 910 english
Application Notes:
Photoresist Removal english
Entfernen von Fotolack german
AZ Remover 920 - 5.00 l
1000920
AZ® Remover 920
Organic Solvent Based Remover
General Information
AZ® Remover 920 is designed for fast delamination and dissolution of photoresist patterns while maintaining broad compatibility with device substrates and metal films.
Merck’s proprietary solvent and additive blend is environmentally friendly and fully compliant with the European Union’s REACH regulatory code. Compatible with most AZ® positive resists (complete dissolution) and most AZ® negative resists (dissolution or delamination depending on degree of cross-linking).
Product Properties
Flashpoint: 84.4°C
Viscosity (20°C): 1.84 cSt
Boiling point: 188°C
Density (at 25°C): 1.084 g/cm3
Compatibility
Metals: no attack on Al, Cu, Ti, W, TiW, TiN, Sn, Ni
Substrates: Si, SiO2, GaAs
Data on selectivity and compatibility are manufacturer information and do not claim to be complete. Please contact us for further details.
Main Features
Fast delamination of photoresist patterns
Broad compatibility
Environmentally friendly
Some Applications
Bulk Photoresist Removal
Metal Lift-off Lithography
Cu Pillar Metallization Cleans
RDL Metallization Cleans
Delamination of Heavily Cured Photoresist Patterns & Organic Residues
Further Information
MSDS:
Safety Data Sheet AZ® Remover 920 english
Sicherheitsdatenblatt AZ® Remover 920 german
TDS:
Technical Data Sheet AZ® Remover 920 english
Application Notes:
Photoresist Removal english
Entfernen von Fotolack german

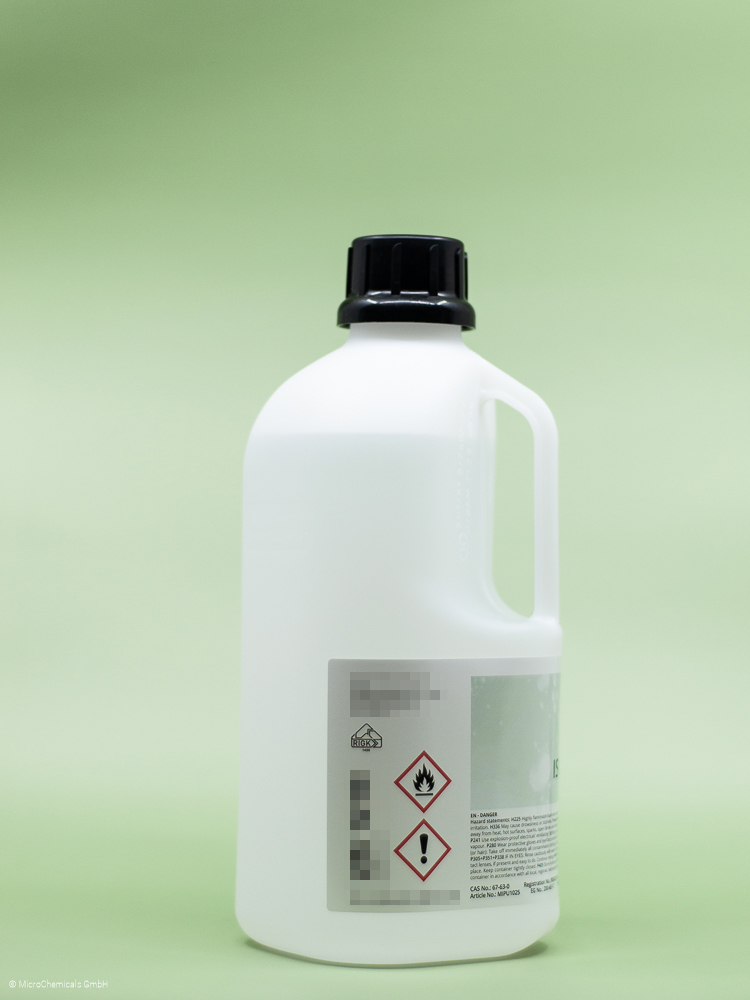

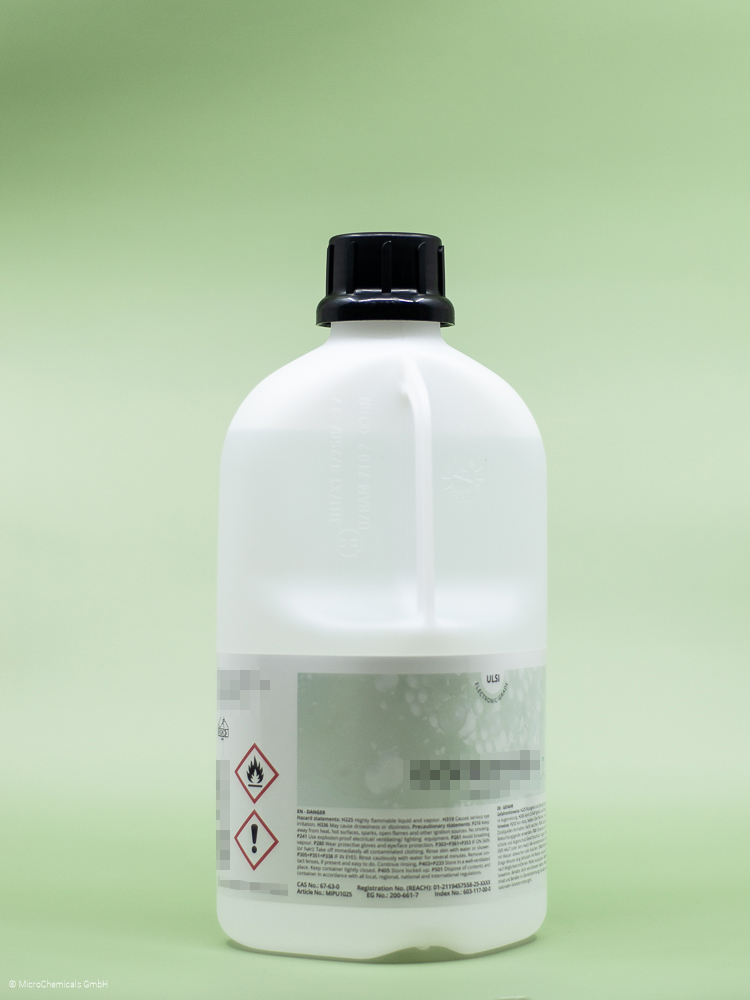

DMSO - 2.50 l - ULSI
MDMU1025
DMSO
Dimethyl Sulfoxide
General Information
Due to its low vapour pressure and its water solubility, DMSO is an excellent stripper for resists respectively Lift-off media and is a non-toxic substitute for the NMP, which has been classified as toxic since a while. The optional addition of Cyclopentanone or MEK increases the performance of the stripper for certain applications and significantly lowers the melting point of pure DMSO.
NOTE:
The solvent DMSO (dimethyl sulfoxide) has a melting point just below room temperature, so it can possi¬bly freeze in storage in cooler rooms. Thawing may require several days, but afterwards the product can still be used as it is.
For more details please download the info letter.
Product Properties
Density: 1.1 g/cm3
Melting point: 18°C
Boiling point: 189°C
Flash point: 87°C
Vapour pressure @ 20°C: 0.56 hPa
DMSO Molecule
Further Information
MSDS:
Safety Data Sheet DMSO (ULSI) english
Sicherheitsdatenblatt DMSO (ULSI) german
Specs:
Specs DMSO (ULSI)
Application Notes:
Solvents: Theory and Application english
Lösemittel: Theorie und Anwendung german
Photoresist Removal english
Fotolack entfernen german
Further Information about Processing

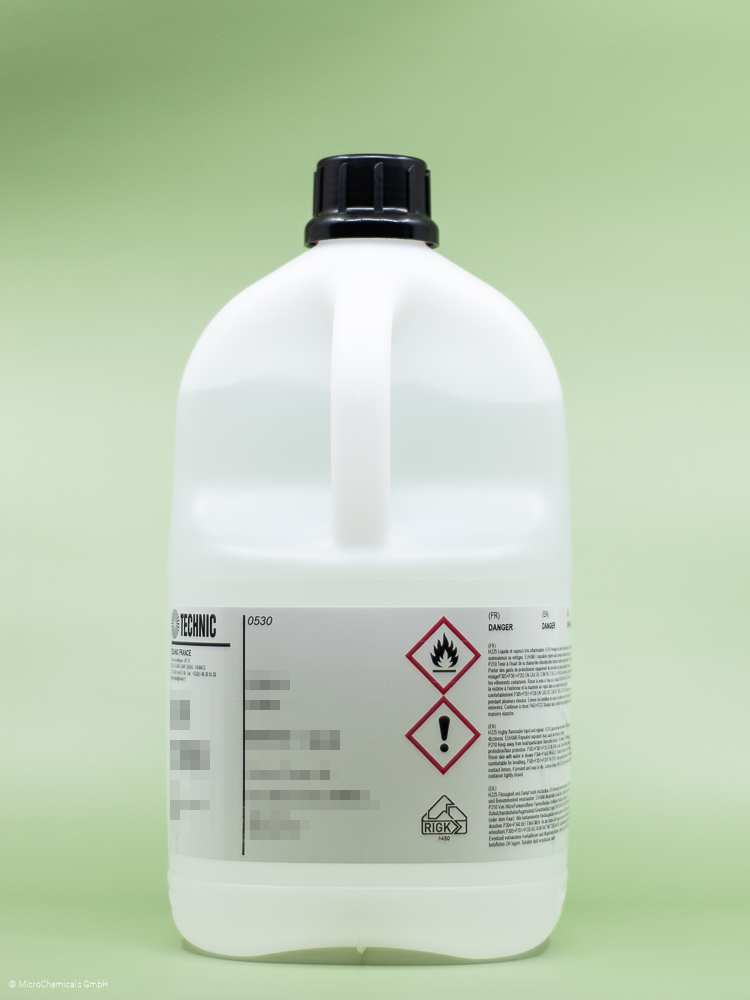

TechniClean CA25 - 5.00 l - MOS
