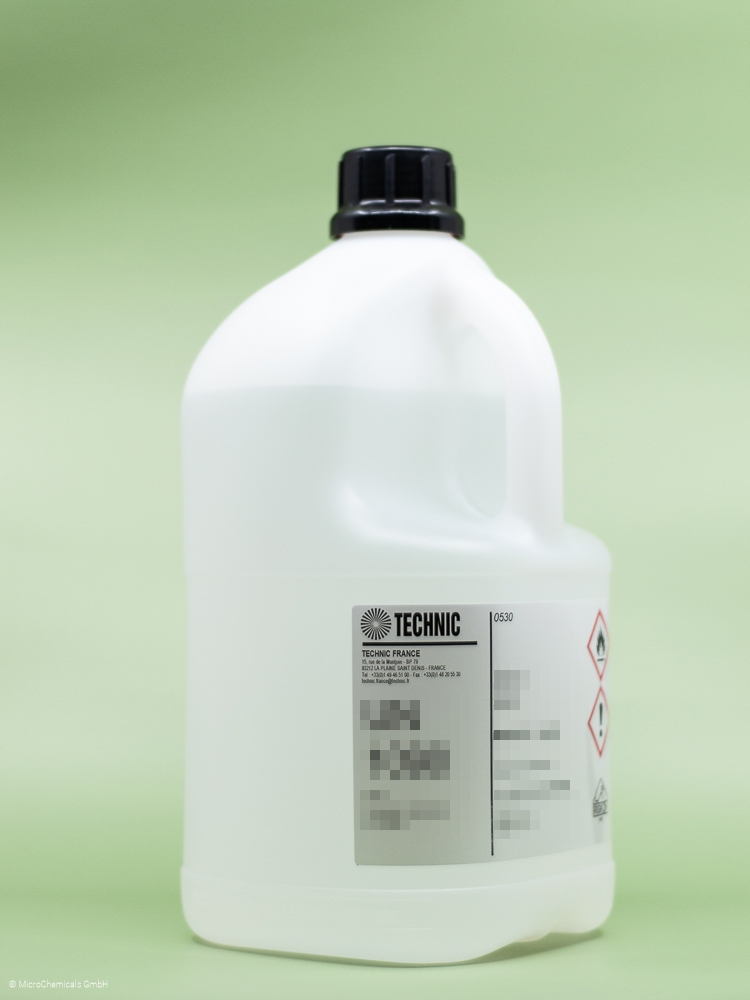

TechniStrip NF26 - 5.00 l - MOS
TECHNIC France
TechniStrip™ NF26 is a highly effective negative tone photoresist remover used mainly for TSV mask and solder bumping applications.
The prices are visible after registration.
Send us an inquiry if you have any questions about articles, purchase quantities, delivery times or sample requests!
Product number:
TPNF2650
Manufacturer:
TECHNIC France
Product information "TechniStrip NF26 - 5.00 l - MOS"
TechniStrip™ NF26
Dry Film Remover
General Information
TechniStrip™ NF26 is a highly effective negative tone photoresist remover used mainly for TSV mask and solder bumping applications.
Developed to address laminated photo-resins (dry-film resists) and liquid resins, the novel cleaning formulation TMAH-based showed high dissolution performance compared to standard TMAH-based blends. Additional advantages of the TechniStrip™ NF26 are its very high material compatibility compared to standard TMAH-based solutions. The intrinsic nature of the additives and solvent make the blend totally compatible with metals used throughout the BEOL interconnects to WLP bumping applications.
Product Properties
- Flashpoint: 90°C
- Viscosity (20°C): < 2cP
- Water Solubility: Totally miscible
- Boiling point: 189°C
- Density (at 20°C): 1.02 g/cm3
Compatibility
- Metals: no attack on Al, Cu, Ni, Ta, TaN, Ti, TiN, TiW, Ag, Sn
- Substrates: Si, SiO2
Data on selectivity and compatibility are manufacturer information and do not claim to be complete. Please contact us for further details.
Main Features
- Very high stripping rate, > 10µm/min
- Great resin dissolution efficiency of dry film
- Bath life up to 72 hours @ 70°C
- Total metal compatibility, < 2 A/min @ 60°C
- Complete water miscibility
Further Information
MSDS:
Safety Data Sheet TechniStrip NF26 (MOS) english
Sicherheitsdatenblatt TechniStrip NF26 (MOS) german
TDS:
Technical Data Sheet TechniStrip NF26 (MOS) english
Specs:
Specs TechniStrip NF26 (MOS)
Application Notes:
Photoresist Removal english
Fotolack entfernen german
| Compatible Substrates: | Si, SiO2 |
|---|---|
| Purity: | MOS |
| Selectivity (no attack on): | Ag, Al, Cu, Ni, Sn, Ta, TaN, Ti, TiN, TiW |
Related products
AZ 100 Remover - 5.00 l
1000100
AZ® 100 Remover
Universal Photoresist Stripper
General Information
AZ®100 Remover is based on solvent and amine (alkaline). AZ®100 Remover is used for photoresist stripping with low attack to aluminium. Low hazard is achieved by the use of ethanol amine.
Low evaporation rate allows the use at elevated temperatures (up to 80°C), high efficiency (>3000 wafer per litre) helps saving costs. Where attack to aluminium is of no concern, it may even be diluted with water.
AZ®100 Remover is not compatible with AZ® nLof 2070 (AZ® nLof 2000 series) resists and other heavily cross linked resists.
Product Properties
Density (at 25°C): 0.955 kg/l
Color (Alpha): max. 20
Flashpoint (AP): 72°C
Normality (potentiometric): 3.1 mol/l
Boiling range: 159-194°C
Further Information
MSDS:
Safety Data Sheet AZ® 100 Remover english
Sicherheitsdatenblatt AZ® 100 Remover german
TDS:
Technical Data Sheet AZ® 100 Remover english
Application Notes:
Photoresist removal english
Fotolack entfernen german
AZ Remover 910 - 5.00 l
1000910
AZ® Remover 910
Organic Solvent Based Remover
General Information
AZ® Remover 910 is designed to strip and dissolve positive and negative-tone, chemically amplified and DNQ/Novolak resists. It is a solvent based product that contains acids and is therefore acidic. The formulation is EH&S friendly, it contains no NMP, DMAC, DMSO and no TMAH and it is amine free.
It is especially suited for our cross-linking negative resists such as AZ® nLof 2070, 2035 and 2020, the AZ® nLof 5110 and the AZ® 15nXT series resists.
Compatibility
It is suitable for processes where sensitive metals and other materials are exposed.
It shows low etch rates on:
Al, Cu, Ti, W, TiW, TiN, Sn, Ni
Si, SiO2
Data on selectivity and compatibility are manufacturer information and do not claim to be complete. Please contact us for further details.
Further Information
MSDS:
Safety Data Sheet AZ® Remover 910 english
Sicherheitsdatenblatt AZ® Remover 910 german
TDS:
Technical Data Sheet AZ® Remover 910 english
Application Notes:
Photoresist Removal english
Entfernen von Fotolack german
AZ Remover 920 - 5.00 l
1000920
AZ® Remover 920
Organic Solvent Based Remover
General Information
AZ® Remover 920 is designed for fast delamination and dissolution of photoresist patterns while maintaining broad compatibility with device substrates and metal films.
Merck’s proprietary solvent and additive blend is environmentally friendly and fully compliant with the European Union’s REACH regulatory code. Compatible with most AZ® positive resists (complete dissolution) and most AZ® negative resists (dissolution or delamination depending on degree of cross-linking).
Product Properties
Flashpoint: 84.4°C
Viscosity (20°C): 1.84 cSt
Boiling point: 188°C
Density (at 25°C): 1.084 g/cm3
Compatibility
Metals: no attack on Al, Cu, Ti, W, TiW, TiN, Sn, Ni
Substrates: Si, SiO2, GaAs
Data on selectivity and compatibility are manufacturer information and do not claim to be complete. Please contact us for further details.
Main Features
Fast delamination of photoresist patterns
Broad compatibility
Environmentally friendly
Some Applications
Bulk Photoresist Removal
Metal Lift-off Lithography
Cu Pillar Metallization Cleans
RDL Metallization Cleans
Delamination of Heavily Cured Photoresist Patterns & Organic Residues
Further Information
MSDS:
Safety Data Sheet AZ® Remover 920 english
Sicherheitsdatenblatt AZ® Remover 920 german
TDS:
Technical Data Sheet AZ® Remover 920 english
Application Notes:
Photoresist Removal english
Entfernen von Fotolack german

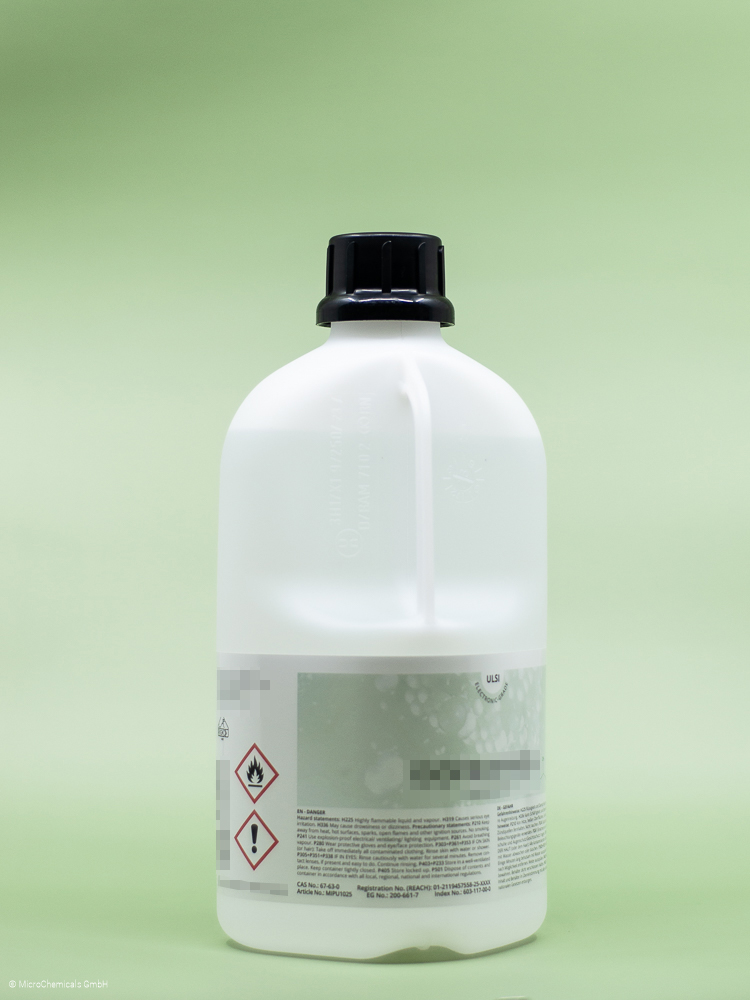

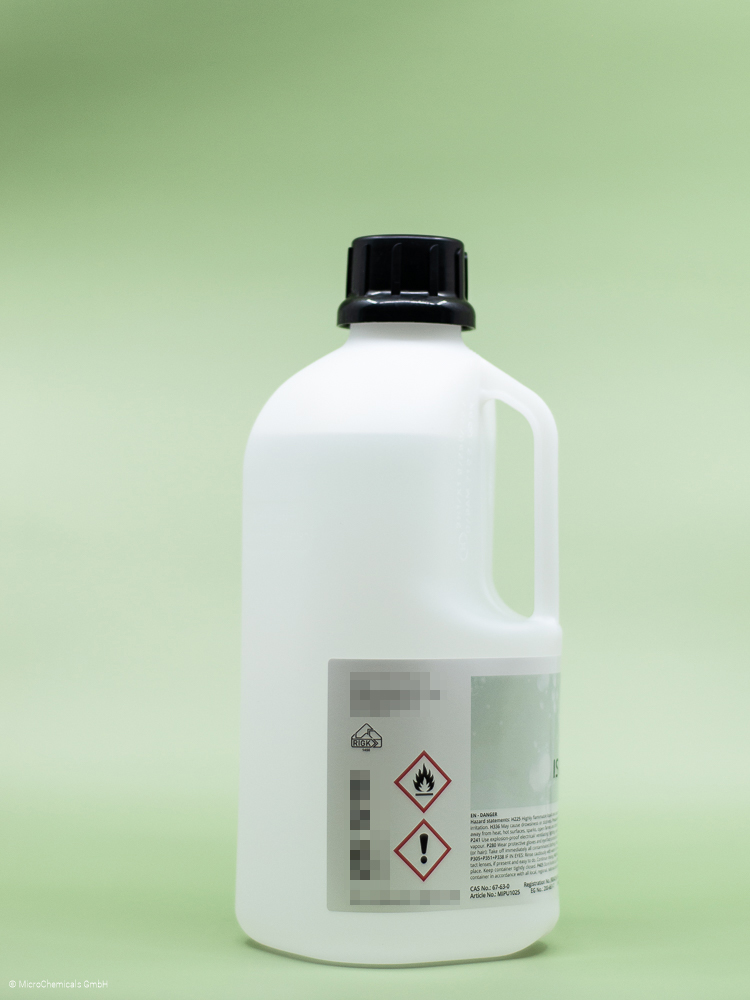

DMSO - 2.50 l - ULSI
MDMU1025
DMSO
Dimethyl Sulfoxide
General Information
Due to its low vapour pressure and its water solubility, DMSO is an excellent stripper for resists respectively Lift-off media and is a non-toxic substitute for the NMP, which has been classified as toxic since a while. The optional addition of Cyclopentanone or MEK increases the performance of the stripper for certain applications and significantly lowers the melting point of pure DMSO.
NOTE:
The solvent DMSO (dimethyl sulfoxide) has a melting point just below room temperature, so it can possi¬bly freeze in storage in cooler rooms. Thawing may require several days, but afterwards the product can still be used as it is.
For more details please download the info letter.
Product Properties
Density: 1.1 g/cm3
Melting point: 18°C
Boiling point: 189°C
Flash point: 87°C
Vapour pressure @ 20°C: 0.56 hPa
DMSO Molecule
Further Information
MSDS:
Safety Data Sheet DMSO (ULSI) english
Sicherheitsdatenblatt DMSO (ULSI) german
Specs:
Specs DMSO (ULSI)
Application Notes:
Solvents: Theory and Application english
Lösemittel: Theorie und Anwendung german
Photoresist Removal english
Fotolack entfernen german
Further Information about Processing
TechniClean CA25 - 5.00 l - MOS
TTCA25M5
TechniCleanTM CA25
Post Etch Residue (PER) Remover
General Information
TechniCleanTM CA25 is a semi-aqueous proprietary blend formulated to address post etch residue (PER) removal for all interconnect and technology nodes. Extremely efficient in the rapid and selective removal of organo-metal oxides from Al, Cu, Ti, TiN, W and Ni.
Product Properties
Flashpoint: > 120°C
Water Solubility: Totally miscible
Viscosity (20°C): < 3 cP
Boiling point: 100°C
Density (at 20°C): 1.041 g/cm3
Compatibility
It removes organo-metal oxides from:
Metals: no attack on Al, Cu, Ti, TiN, W, Ni
Data on selectivity and compatibility are manufacturer information and do not claim to be complete. Please contact us for further details.
Main Features
Unmatched PER cleaning versatility
High efficiency at low temperature
No intermediary rinse
Low environmental impact (fluoride, amine, hydroxylamine and catechol free)
Cost efficiency
Further Information
MSDS:
Safety Data Sheet TechniClean™CA25 (MOS) english
Sicherheitsdatenblatt TechniClean™CA25 (MOS) german
TDS:
Technical Data Sheet TechniClean™CA25 (MOS) english
Specs:
Specs TechniClean™CA25 (MOS)
Application Notes:
Photoresist Removal english
Fotolack entfernen german
Further Information about Processing
TechniStrip Micro D2 - 5.00 l - VLSI
TPD2V500
TechniStrip® Micro D2
Remover with high metal and material compatibility
General Information
TechniStrip® Micro D2 is a versatile stripper which is dedicated to address resin lift off and dissolution on negative and positive tone resist. The organic mixture has the particularity to offer high metal and material compatibility allowing to be used on all stacks and particularly on sensitive substrates.
TechniStrip® Micro D2 is a very well suited substitute for the NMP and DMSO/Amine strippers, that are regarded as toxic since a while, or which are corrosive to some metals.
Product Properties
Flashpoint: 87°C
Water Solubility: Fully miscible
Boiling point: 190°C
Density (at 20°C): 1.113 g/cm3
Compatibility
Metals: no attack on Al, Cu, Ni, Ta, TaN, Ti, TiN, TiW, Au, Ag, Sn
Substrates: SiO2, Si
Data on selectivity and compatibility are manufacturer information and do not claim to be complete. Please contact us for further details.
Some Applications
Positive resin stripping
Negative tone resist lift off
Lift off process to pattern metals and dielectric layers
Reworking
Adhesive, glue cleaner
Further Information
MSDS:
Safety Data TechniStrip Micro D2 (VLSI) english
Sicherheitsdatenblatt TechniStrip Micro D2 (VLSI) german
TDS:
Technical Data Sheet TechniStrip Micro D2 (VLSI) english
Specs:
Specs TechniStrip Micro D2 (VLSI)
Application Notes:
Photoresist Removal english
Fotolack entfernen german
Further Information about Processing
TechniStrip Micro D350 - 2.50 l - ULSI
TD350U1025
Bottle size:
2.50 l
TechniStrip Micro D350
DMSO-based Stripper
General Information
TechniStrip® Micro D350 is a DMSO-based stripper and is a very well suited non-toxic substitute for the NMP that is regarded as toxic since a while. As a stripper or as lift off media, TechniStrip® Micro D350 can be regarded as a non toxic alternative to NMP. Mixtures with Cyclopentanone or with MEK even increase the strip performance of this product.
NOTE:
The solvent TechniStrip® Micro D350 has a melting point just below room temperature, so it can possi¬bly freeze in storage in cooler rooms. Thawing may require several days, but afterwards the product can still be used as it is.
For more details please download the info letter.
Further Information
MSDS:
Safety Data Sheet TechniStrip Micro D350 (ULSI) english
Sicherheitsdatenblatt TechniStrip Micro D350 (ULSI) german
TDS:
Technical Data Sheet TechniStrip Micro D350 (ULSI) english
Specs:
Specs TechniStrip Micro D350 (ULSI)
Application Notes:
Photoresist Removal english
Fotolack entfernen german
Further Information about Processing

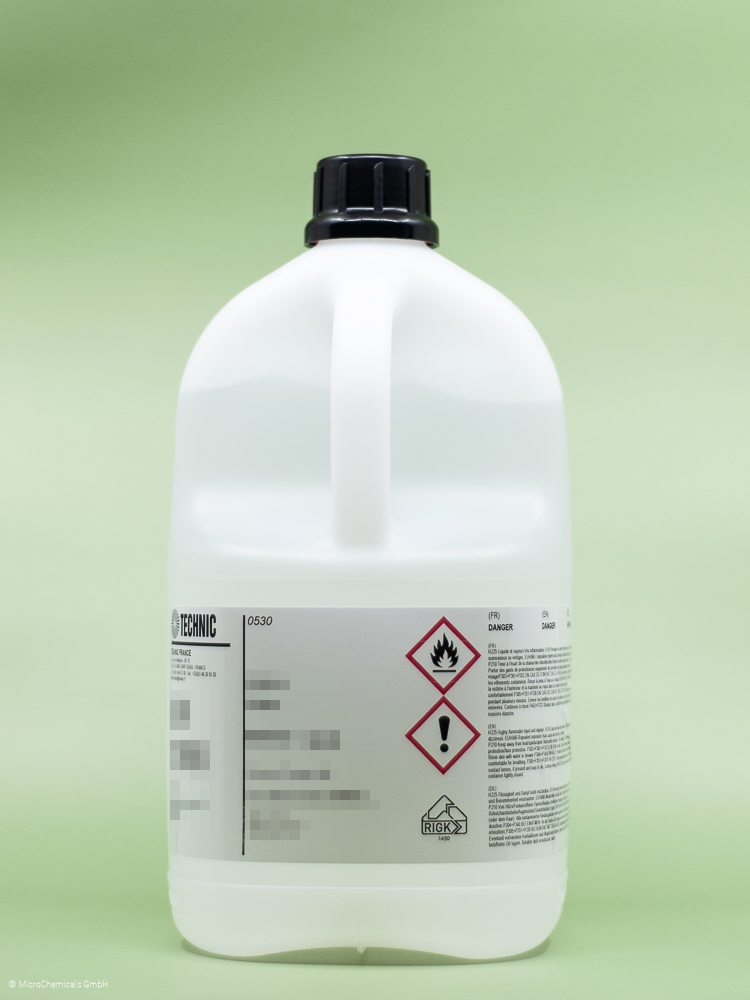

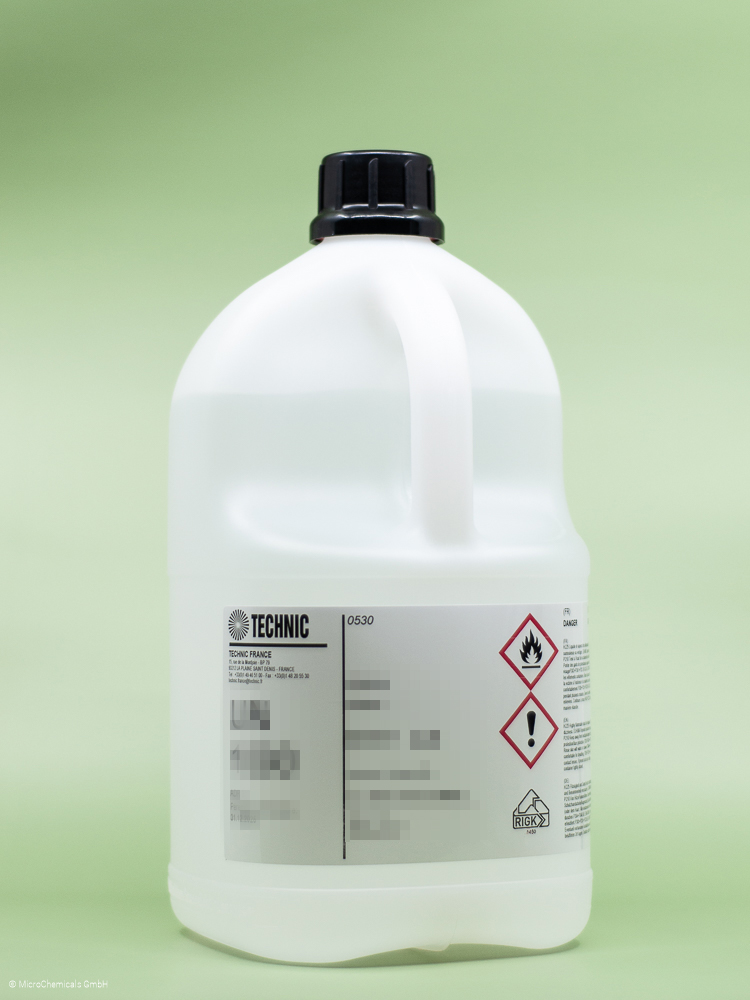

TechniStrip MLO-07 - 5.00 l - MOS
