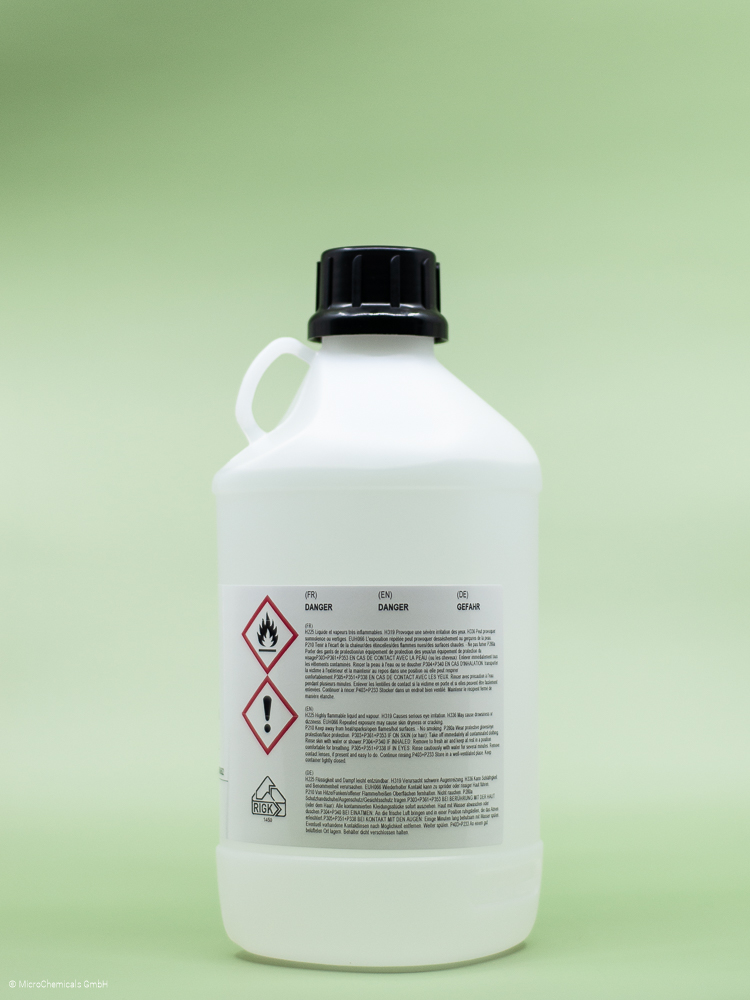

TechniEtch TBR 19 Concentrate - 2.50 l - MOS
TechniEtch™ TBR19 is a low undercut Ti etch chemistry concentrate for Cu bump pillars for self-mixing.
The prices are visible after registration.
Send us an inquiry if you have any questions about articles, purchase quantities, delivery times or sample requests!
Product number:
TETBR192
Product information "TechniEtch TBR 19 Concentrate - 2.50 l - MOS"
TechniEtch™ TBR19 Concentrate
Ti, TiW and TiN Etchant
General Information
TechniEtch™ TBR19 is a low undercut Ti etch chemistry concentrate for Cu bump pillars for self-mixing. TechniEtch™ TBR19 concentrate is compatible with most under bump metallization (UBM) and copper pillar integration materials such as Cu, Al, Ni and alloys, glass, organic substrate and most plastics like polypropylene, HDPE, PFA, PTFE Kalrez, PEEK, PE. The etching rate at 50°C is around 1000 A/min.
Note: To mix the TechniEtch™ TBR19 Concentrate correctly, a mixing ratio of 94 : 6 (94 wt % H2O2 and 6 wt % TBR19 concentrate additives) is recommended. This means that after mixing 500ml of TechniEtch™ TBR19 Concentrate with the corresponding amount of H2O2, you will obtain approx. 8 litres of the finished etching solution.
TBR19 (150°C 180s underetch smaller than 500nm)
Product Properties
- High selectivity
- Significant reduction of undercut compared to conventional SC1 and HF
- Long bath life
- Tunable etch rate
Selectivity
TechniEtch™ TBR19 is compatible/etches selective to following materials:
- Metals: no attack on Cu, Al, Ni, Sn
- Metals: attack on TiN, TiW, Ti, SnPd
Data on selectivity and compatibility are manufacturer information and do not claim to be complete. Please contact us for further details.
Further Information
MSDS:
Safety Data TechniEtch TBR 19 (MOS) english
Sicherheitsdatenblatt TechniEtch TBR 19 (MOS) german
TDS:
Technical Data Sheet TechniEtch TBR 19 (MOS) english
Mixing Technical Data Sheet TechniEtch TBR 19 (MOS) english
Specs:
Specs TechniEtch TBR 19 (MOS)
Application Notes:
Wet Etching english
Nasschemisches Ätzen german
Wet Etching Metals english
Nasschemisches Ätzen von Metallen german
