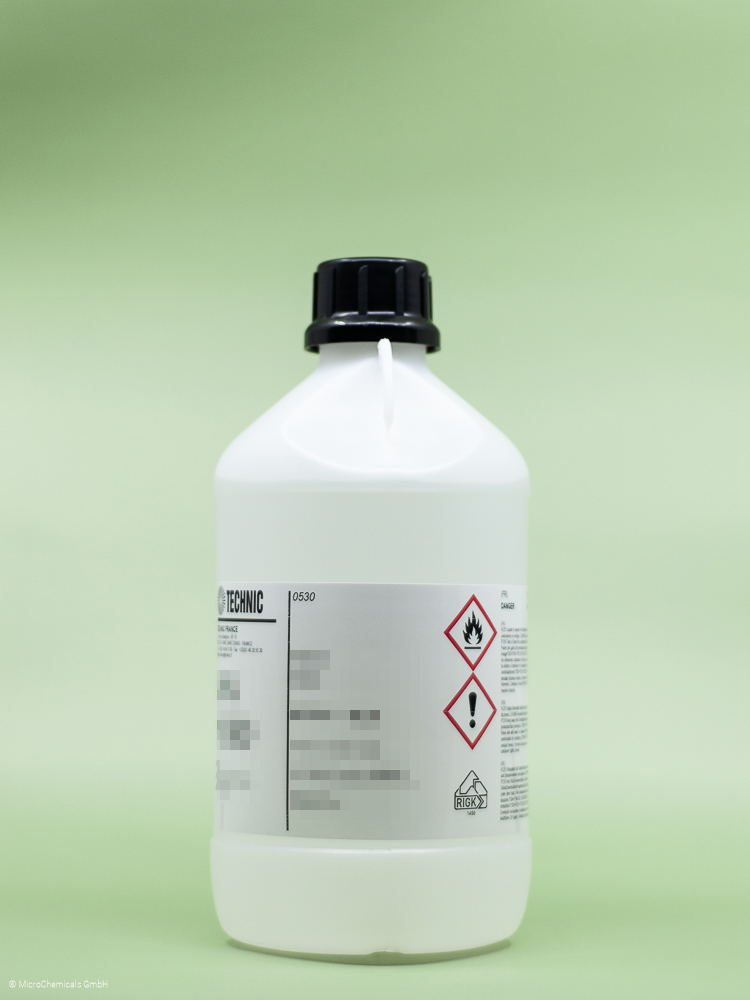

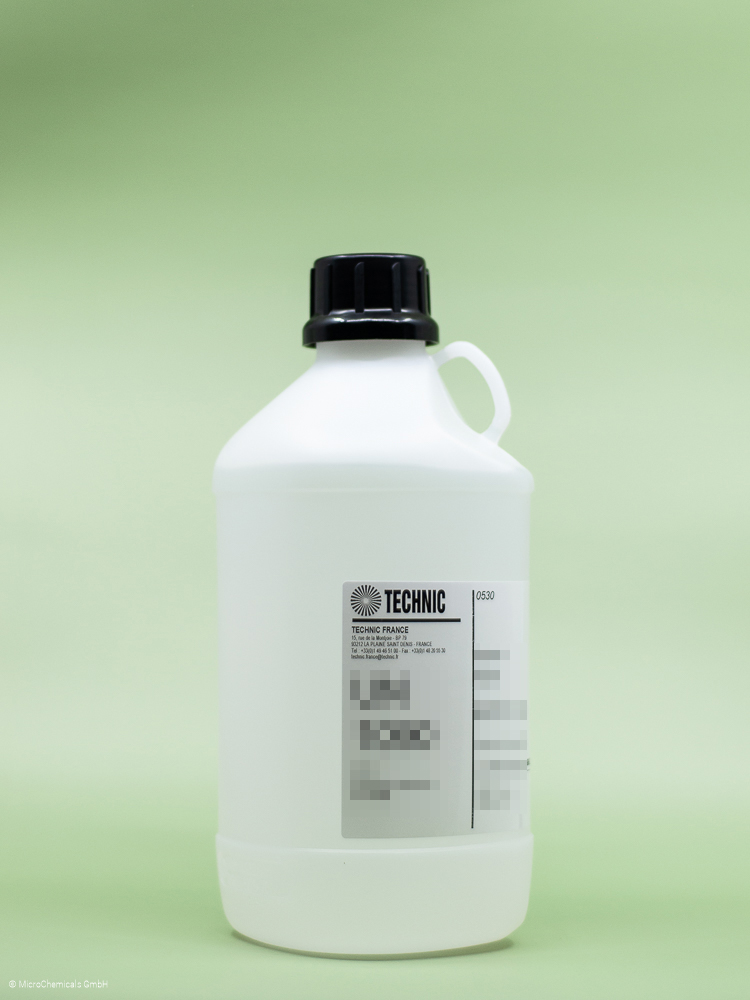

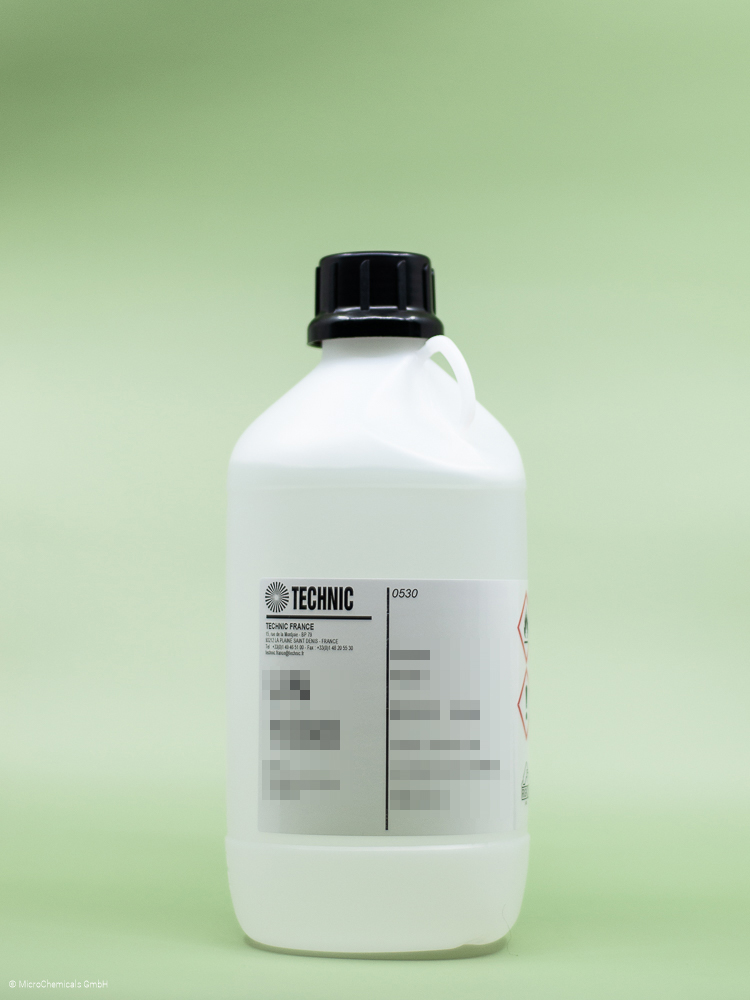

TechniEtch Al80 - 2.50 l - MOS
TECHNIC France
TechniEtch Al80 is a standard acidic aqueous mixture based upon a Acetic/Nitric/Phosphoric water blend.
The prices are visible after registration.
Send us an inquiry if you have any questions about articles, purchase quantities, delivery times or sample requests!
Product number:
TAEV1025
Manufacturer:
TECHNIC France
Product information "TechniEtch Al80 - 2.50 l - MOS"
TechniEtch Al80
Aluminium Etchant
General Information
TechniEtch Al80 is a ready-to-use etching mixture based on phosphoric acid, nitric acid and acetic acid for aluminium etching. Our aluminium etchant TechniEtch Al80 has the composition H3PO4 : HNO3 : CH3COOH* : H2O = 80% : 5% : 5% : 10% comes in MOS quality.
Product Properties
- High etch rate at room temperature.
- High stability even in presence of metal contamination
- Loading & bath life mainly dependent of process temperature, tool and extraction flow
Selectivity
TechniEtch Al80 is compatible/etches selective to following materials:
- Metals: no attack on Au, Pt
- Metals: attack on Al
Data on selectivity and compatibility are manufacturer information and do not claim to be complete. Please contact us for further details.
Further Information
MSDS:
Safety Data TechniEtch Al80 (MOS) english
Sicherheitsdatenblatt TechniEtch Al80 (MOS) german
TDS:
Technical Data Sheet TechniEtch Al80 (MOS) english
Specs:
Specs TechniEtch Al80 (MOS)
Application Notes:
Wet Etching english
Nasschemisches Ätzen german
Wet Etching Metals english
Nasschemisches Ätzen von Metallen german
Related products
Ammonium hydroxide solution 28-30% - 2.50 l - VLSI - EVE/EUD!
HAMV1025
Ammonia Solution
NH4OH
General Information
Mixed with H2O2, Ammonia is an ingredient of many etching mixtures for metals such as copper, silver or aluminum.
Our Ammonia solution (28 - 30%) is available in VLSI-quality, which is the usual purity grades applied in semiconductor processing and micro-electronics.
Data on selectivity and compatibility are manufacturer information and do not claim to be complete. Please contact us for further details.
Further Information
MSDS:
Safety Data Sheet Ammonium Hydroxide Solution (VLSI) 28-30% english
Specs:
Specs Ammonium Hydroxide Solution (VLSI) 28-30%
Application Notes:
Wet Etching english
Nasschemisches Ätzen german
Au etch 200 - 5.00 l
nbtaue2005
Bottle size:
5.00 l
Au etch 200
Gold Etchant
General Information
Au etch 200 is a non-hazardous, cyanide-free, slightly alkaline etchant for Au. The etchant is used for the wet-chemical patterning of Au layers with selectivity to metals like Pt, Ni, Cr, Ti, Al. Common areas of use for semiconductor fabrication or micro system technology.
Product Properties
Low undercut (in the range of the layer thickness), minimum feature size < 1 µm
Selectivity to many materials, e.g. common metals used in electroplating industry
Available in different purity grades
Compatible to resist masking
Not hazardous substance and easy to handle
Selectivity
Au etch 200 is compatible/etches selective to following materials:
Resists: common Novolak as masking resist (e.g. AZ® Photoresist)
Metals: no attack on Pt, Ni, Cr, Ti, Al, Ta
Metals: attacked Au, Cu
Semiconductor materials: Si, SiO2, Si3N4
Data on selectivity and compatibility are manufacturer information and do not claim to be complete. Please contact us for further details.
Etching Rate
Under normal condition, the etching rate is around 40 nm/min (at 50°C). The mixed etching solution is stable over time and can be used multiple times depending on the requirements of application. It is recommended to dispose the solution at the latest, when the etching rate has changed by 20%.
Further Information
MSDS:
Safety Data Sheet Au etch 200 english
Sicherheitsdatenblatt Au etch 200 german
TDS:
Technical Data Sheet Au etch 200 english
Technical Data Sheet Au etch 200 german
Application Notes:
Wet Etching english
Nasschemisches Ätzen german
Wet Etching of Metals english
Nasschemisches Ätzen von Metallen german
Further Information about Processing
AX 100 - 5.00 l
nbtax1005
Bottle size:
5.00 l
AX 100
Activator
General Information
AX 100 is an acidic solution for activating and pretreating seed layers and metallic surfaces for electroplating, on which a direct metallization may cause problems regarding the adhesive strength. This applies e.g. for the electroplating of Au on Ni surfaces or direct electroplating on Ti or TiW layers.
AX 100 activates metallic surfaces before electroplating and allows a better adhesive strength of electroplated layers on metallic surfaces, which tend to oxidation.
Common fields of application are semiconductor fabrication and microsystem technology.
Product Properties
Low or none etch attack on metallic surfaces
Compatible to many materials, e.g. common metals used in electroplating industry
Compatible to resist masking
Not poisonous substance and easy to handle
Moderate operation temperature of about 40°C
Selectivity
AX 100 is compatible/etches selective to following materials:
Resists: common Novolak as masking resist (e.g. AZ® Photoresist)
Metals: no attack on Ni, Ti, TiW, Ta, Cu
Semiconductor materials: Si, SiO2, Si3N4
Data on selectivity and compatibility are manufacturer information and do not claim to be complete. Please contact us for further details.
Further Information
MSDS:
Safety Data Sheet AX 100 english
Sicherheitsdatenblatt AX 100 german
TDS:
Technical Data Sheet AX 100 english
Application Notes:
Further Information about Processing

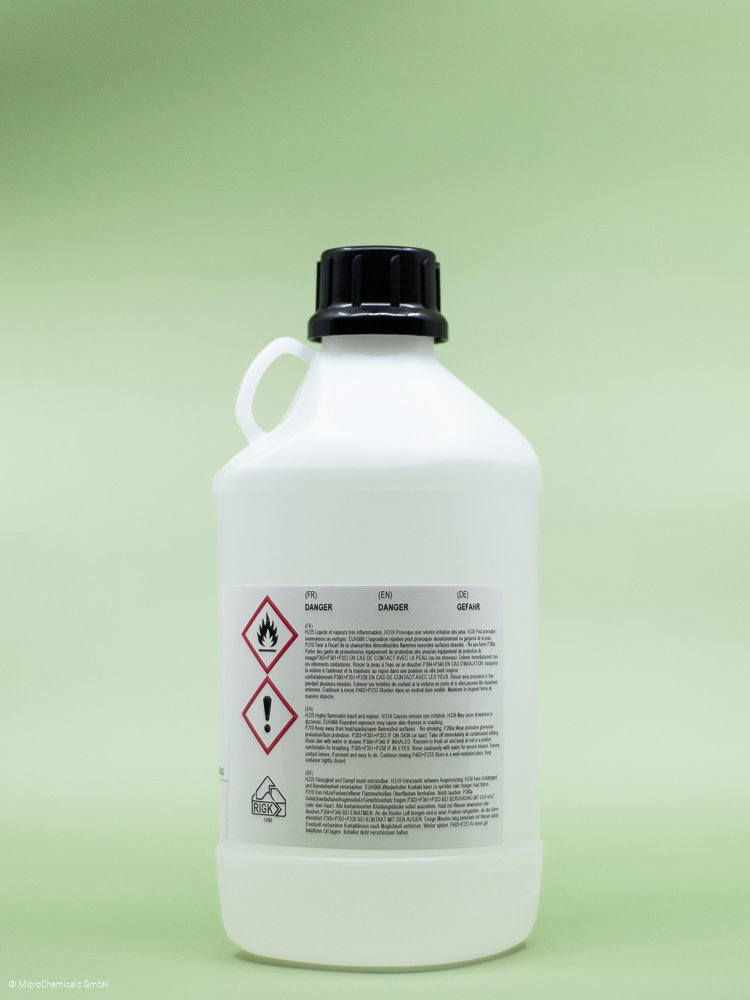

BOE 7:1 (87,5 : 12,5) - 2.50 l - VLSI - EVE/EUD!
