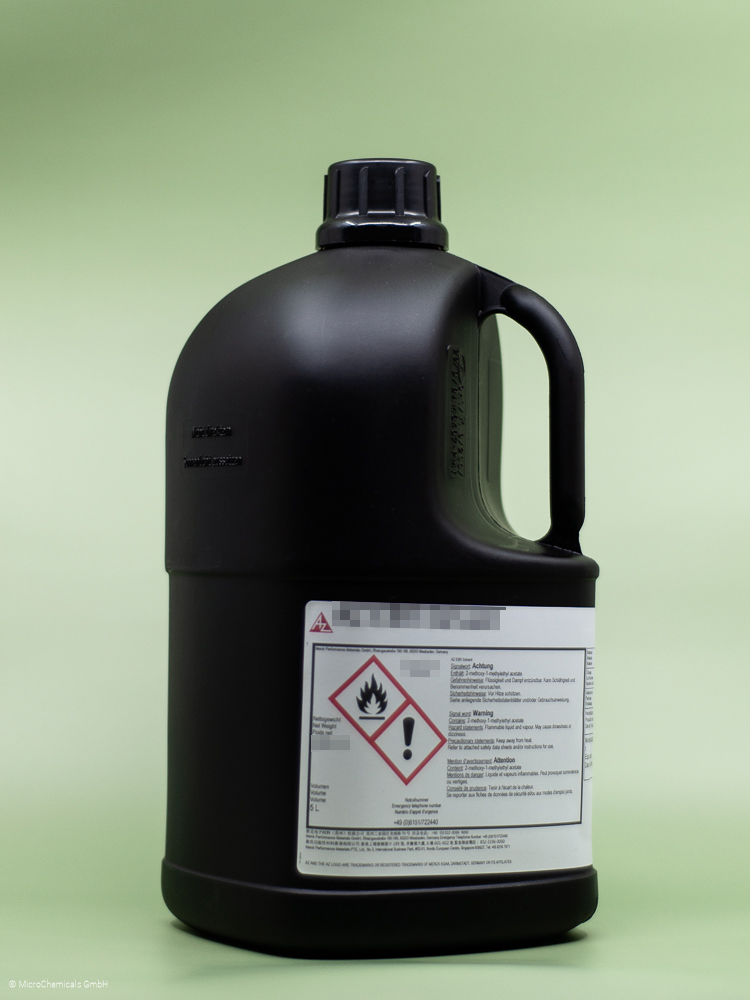

TI Prime - 5.00 l
MicroChemicals GmbH
TI Prime is based on an organic titanium compound. After spin-coating, a baking step causes a chemical bonding to the substrate surface.
The prices are visible after registration.
Send us an inquiry if you have any questions about articles, purchase quantities, delivery times or sample requests!
Product number:
100p004
Manufacturer:
MicroChemicals GmbH
Product information "TI Prime - 5.00 l"
TI Prime
Adhesion Promotion
General Information
The TI Prime adhesion promoter improves resist adhesion on substrates such as Si or glass. TI Prime contains Titanium, for this reason TI Prime should not be used where a contamination with Titanium could be a problem. In contrast to HMDS, TI Prime is applied via spin coating, where a sub-mono layer is adsorbed onto the surface. In a subsequent baking step the surface is activated. After cooling down the fusion should be applied.
Further Information
MSDS:
Safety Data Sheet TI Prime english
Sicherheitsdatenblatt TI Prime german
TDS:
Technical Data Sheet TI Prime english
Application Notes:
Substrate Cleaning and Adhesion english
Substrat Reinigung und Haftung german
Related products

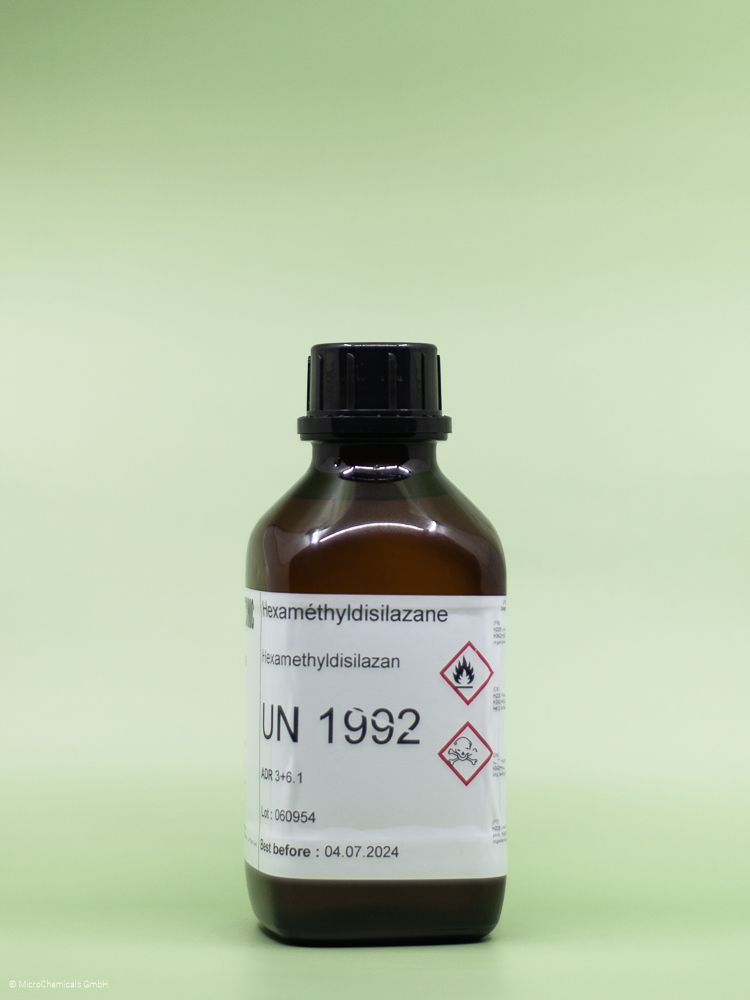

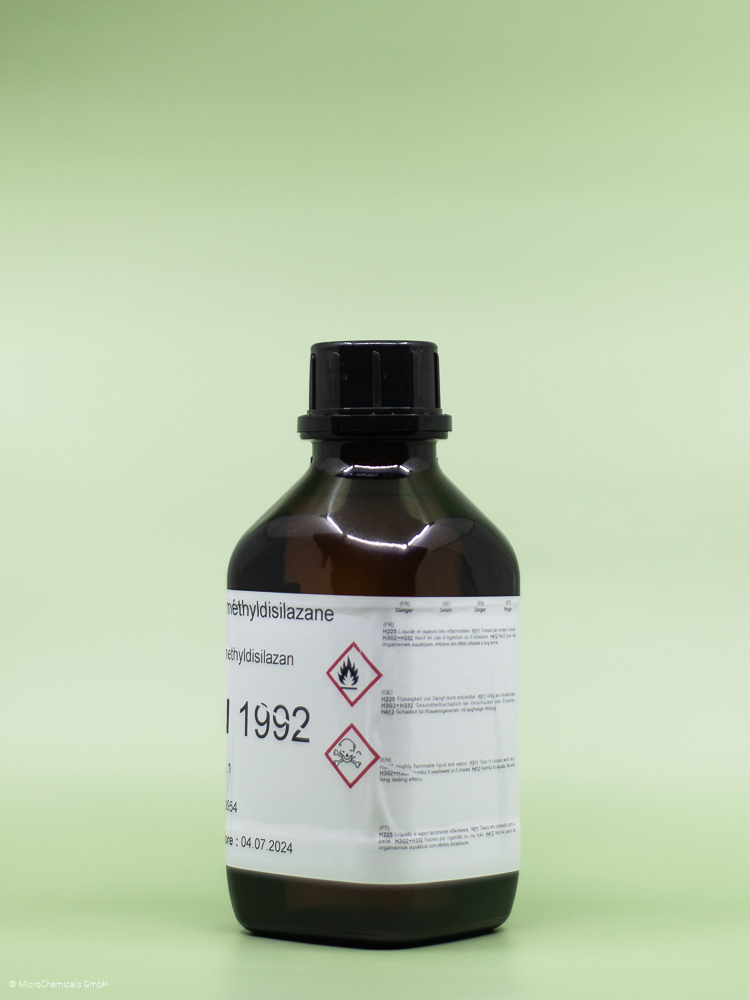

Hexamethyldisilazan - HMDS - 1.00 l - VLSI - EUD/EVE!
THMV1010
HMDS
Adhesion Promotion
General Information
HMDS (HexaMethylDiSilazane) is a metal-ion-free adhesion promoter between the substrate and the photoresist, which is applied from the gas phase to heated substrates and thereby chemically bonds to the substrate surface.
How HMDS Works
On water-free surfaces, HMDS chemically bonds its Si atom to the oxygen of oxidized surfaces, accompanied by the release of ammonia (NH3). The methyl groups of the HMDS fragment thereby form a hydrophobic surface and thus improve resist wetting and adhesion.
How To Apply HMDS
The correct application of HMDS is very important in order not to further deteriorate the resist adhesion:
In a so-called bubbler, water free nitrogen saturates at room temperature with HMDS vapour. The N2 + HMDS streams onto the heated (75 - 120°C), water free substrate thereby forming a thin layer of chemically bonded Si (CH3)3 groups responsible for the desired hydrophobic characteristics.
How Not To Apply HMDS
In the case of spin-coating the HMDS, a thick (= more than a monolayer) HMDS film forms on the surface without displacing water and without chemically bonding.
After resist coating during the softbake, this excess of HMDS releases ammonia which diffuses into the resist and crosslinks the resin near the substrate. As a consequence, through-development sometimes becomes impossible.
For the same reason, NEVER apply HMDS in a spin coater. HMDS vapour will diffuse into all resist films subsequently coated, and partially crosslink the resist film during softbake, which lowers the development rate and can deteriorate the resist profile and attainable resolution.
Further Information
MSDS:
Safety Data Sheet HMDS (VLSI) english
Sicherheitsdatenblatt HMDS (VLSI) german
Specs:
Specs HMDS (VLSI)
Application Notes:
Substrate Cleaning and Adhesion english
Substrat Reinigung und Haftung german
