AZ 303 Developer - 5.00 l
1000303
AZ® 303 Developer
Inorganic Developers
General Information
AZ® 303 MIC is based on KOH and NaOH and contains strong surfactants. It is designed for positive and aqueous alkaline compatible negative resists, it can be used for AZ® nLof 20XX series resists as well and is the only one TMAH free developer for this resist. AZ® 303 Developer is typically diluted 1:5 - 1:10 with water.
Further Information
MSDS:
Safety Data Sheet AZ® 303 Developer english
Sicherheitsdatenblatt AZ® 303 Entwickler german
TDS:
Technical Data Sheet AZ® 303 Developer english
Application Notes:
Development of Photoresist english
Entwicklung von Fotolack german
AZ 340 Developer - 5.00 l
1000340
AZ® 340 Developer
Inorganic Developers
General Information
AZ® 340 Developer is a high normality sodium based developer concentrate for use in on-site custom dilution applications. This developer concentrate is buffered for extended bath life and stable develop rates in batch processes. Dilute using 1 part AZ® 340 Developer to 4 parts DI water for high contrast processing. Developer normality (and develop rate) may be increased as required by increasing the AZ® 340 Developer to water ratio.
Further Information
MSDS:
Safety Data Sheet AZ® 340 Developer english
Sicherheitsdatenblatt AZ® 340 Developer german
TDS:
Technical Data Sheet AZ® 340 Developer english
Application Notes:
Development of Photoresist english
Entwicklung von Fotolack german
AZ 351 B Developer - 5.00 l
1000351
AZ® 351B Developer
Inorganic Developers
General Information
AZ® 351B Developer is based on buffered NaOH and typically used in a 1:3 to 1:4 dilution (1 part of concentrate and 4 parts of DI-water). 1:3 dilution is the high speed setup while 1:4 will be used for a high contrast setup. It can be used especially for our thinner resist types, such as AZ® 1500 Series resists or image reversal resists such as AZ® 5200E resist series.
Further Information
MSDS:
Safety Data Sheet AZ® 351B Developer english
Sicherheitsdatenblatt AZ® 351B Entwickler german
TDS:
Technical Data Sheet AZ® 351B Developer english
Application Notes:
Development of Photoresist english
Entwicklung von Fotolack german
AZ 400 K Dev 1:4 - 5.00 l
1004145
AZ® 400K Developer 1:4
Inorganic Developers
General Information
In addition to the concentrate, a pre-diluted AZ® 400K 1:4 version is now also available, other dilution ratios on request.
AZ® 400K MIC Developer is based on buffered KOH and typically used in a 1:3 to 1:4 dilution (1 part of concentrate and 4 parts of DI-water) and can be used especially for our thicker resist types, such as AZ® 4562, AZ® 10XT, and AZ® 40XT.
Further Information
MSDS:
Safety Data Sheet AZ® 400K 1:4 Developer english
Sicherheitsdatenblatt AZ® 400K 1:4 Entwickler german
TDS:
Technical Data Sheet AZ® 400K 1:4 Developer english
Information AZ® 400K 1:4 Developer english
Application Notes:
Development of Photoresist english
Entwicklung von Fotolack german

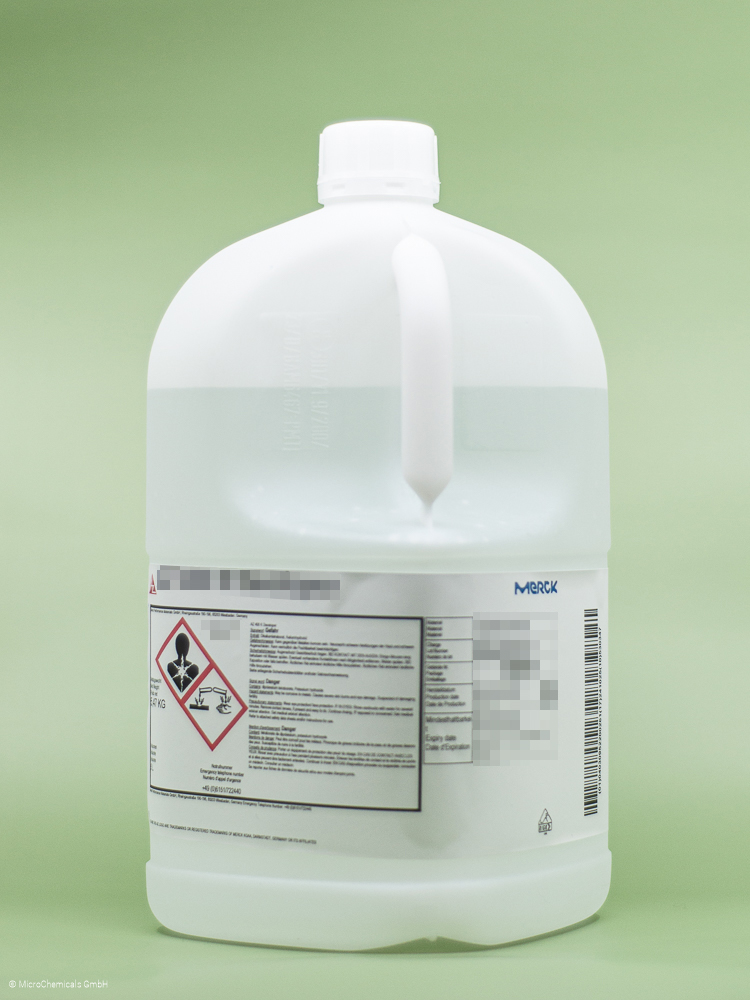

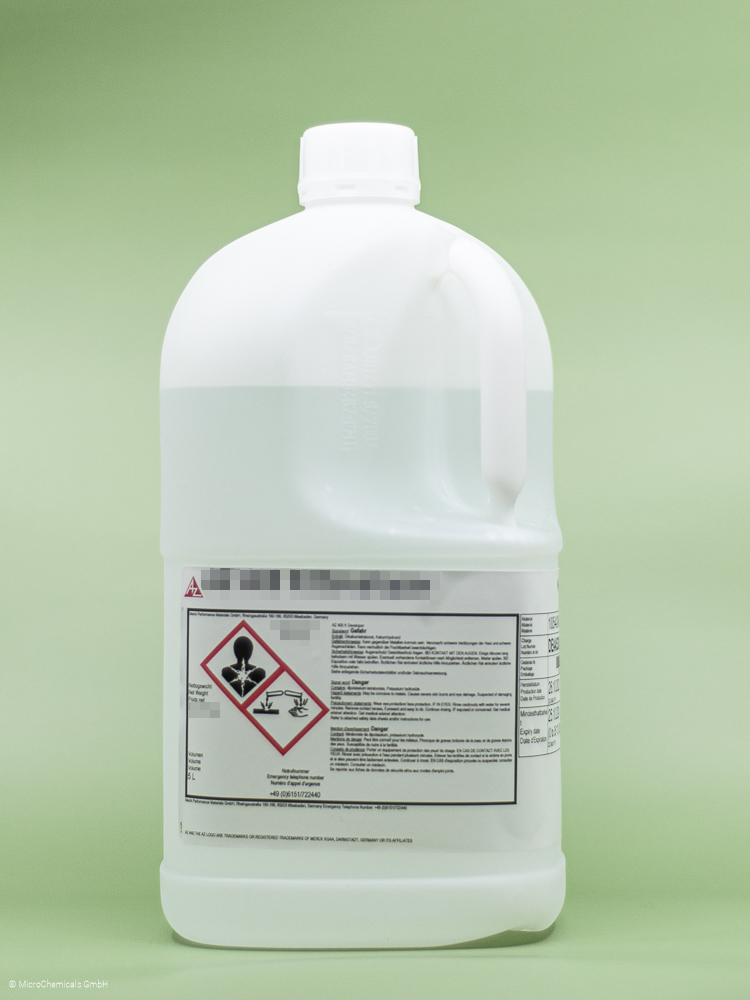

AZ 400 K Developer - 5.00 l
1000400
AZ® 400K Developer
Inorganic Developers
General Information
AZ® 400K MIC is based on buffered KOH and typically used in a 1:3 to 1:4 dilution (1 part of concentrate and 4 parts of DI-water) and can be used especially for our thicker resist types, such as AZ® 4562, AZ® 10XT, and AZ® 40XT. In addition to the concentrate, a pre-diluted AZ® 400K 1:4 version is now also available, other dilution ratios on request.
Further Information
MSDS:
Safety Data Sheet AZ® 400K Developer english
Sicherheitsdatenblatt AZ® 400K Entwickler german
TDS:
Technical Data Sheet AZ® 400K Developer english
Information AZ® 400K Developer english
Application Notes:
Development of Photoresist english
Entwicklung von Fotolack german
AZ Developer - 5.00 l
1000001
AZ® Developer
Inorganic Developers
General Information
AZ® Developer is optimized for minimum Al attack. It is an odourless, aqueous, inorganic, alkaline solution, which is compatible with batch and in-line developing processes. It is typically applied 1:1 diluted in DI-H2O for high contrast, or undiluted for a high development rate. The dark erosion of AZ® Developer is slightly higher as compared to other developers. AZ® Developer can be used in combination with most families of AZ® Photoresists (i.e. AZ® 1500, AZ® ECI3000 and AZ® 4500 or AZ® PL177). AZ® Developer displays the lowest aluminium etch rate (it is more or less zero!) of all AZ® Developer - types and is ideal for metal levels.
Further Information
MSDS:
Safety Data Sheet AZ® Developer english
Sicherheitsdatenblatt AZ® Developer german
TDS:
Technical Data Sheet AZ® Developer english
Application Notes:
Development of Photoresist english
Entwicklung von Fotolack german
AZ Developer 1:1 - 5.00 l
1000115
AZ® Developer 1:1
Inorganic Developers
General Information
AZ® Developer 1:1 is a ready-to-use product and is a 1:1 dilution of AZ Developer. The developer is optimized for minimum Al attack. It is an odourless, aqueous, inorganic, alkaline solution, which is compatible with batch and in-line developing processes. AZ® Developer 1:1 is for high contrast. The dark erosion of AZ® Developer 1:1 is slightly higher as compared to other developers. AZ® Developer 1:1 can be used in combination with most families of AZ® Photoresists (i.e. AZ® 1500, AZ® ECI3000 and AZ® 4500 or AZ® PL177). AZ® Developer 1:1 displays the lowest aluminium etch rate (it is more or less zero!) of all AZ® Developer 1:1 types and is ideal for metal levels.
Further Information
MSDS:
Safety Data Sheet AZ® Developer 1:1 english
Sicherheitsdatenblatt AZ® Developer 1:1 german
TDS:
Technical Data Sheet AZ® Developer 1:1 english
Application Notes:
Development of Photoresist english
Entwicklung von Fotolack german
