SPECIFICATIONS OF WAFERS

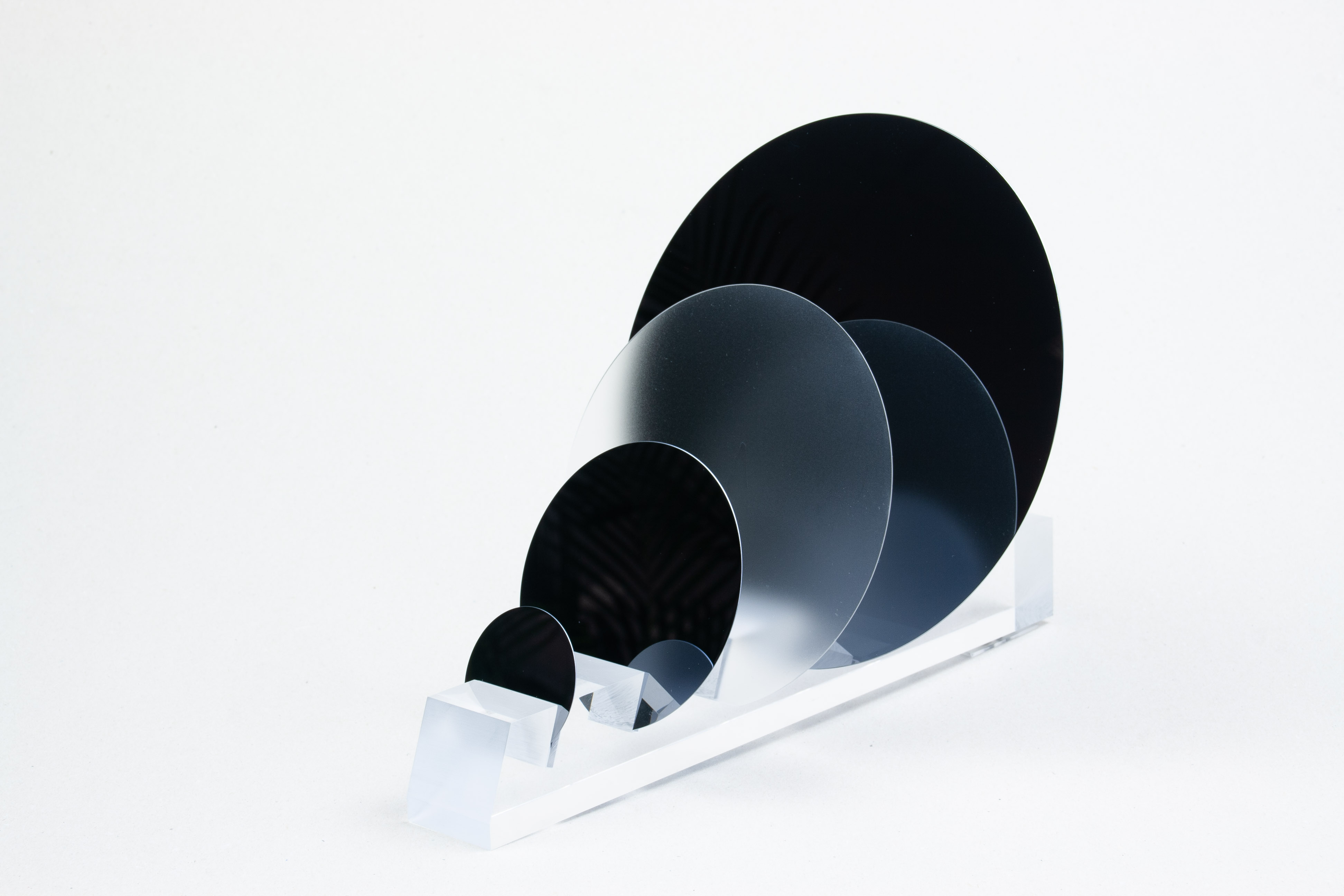

Diameter or edge length

The diameters of silicon wafers are specified either in inches or mm . Although one inch corresponds to 25.4 mm, the diameters of wafers specified in inches usually correspond to multiples of 25.0 mm (e.g. 4 inches=100 mm), which should be clarified in advance with the supplier .
The tolerance of the diameter is usually +/- 0.5 mm. We also offer wafers cut into rectangular pieces. The generally realisable range of edge lengths for silicon wafer pieces is from 5 x 5 ^mm2 to 100 x 120 mm_²that of glass, fused silica and quartz wafer pieces from 2 x 2 mm_² to 300 x 300 mm_^2. The costs are defined by the starting material and the desired number of pieces.

Orientation

The orientation of a wafer (e.g. <100>, <110> or <111>) characterises the crystal plane parallel to which the wafer is sawn. For certain applications, a defined tilt to the main crystal plane may be desirable, but usually attempts are made to orientate the wafer surface as precisely as possible to the main crystal plane; the corresponding tolerances are usually +/- 0.5°.

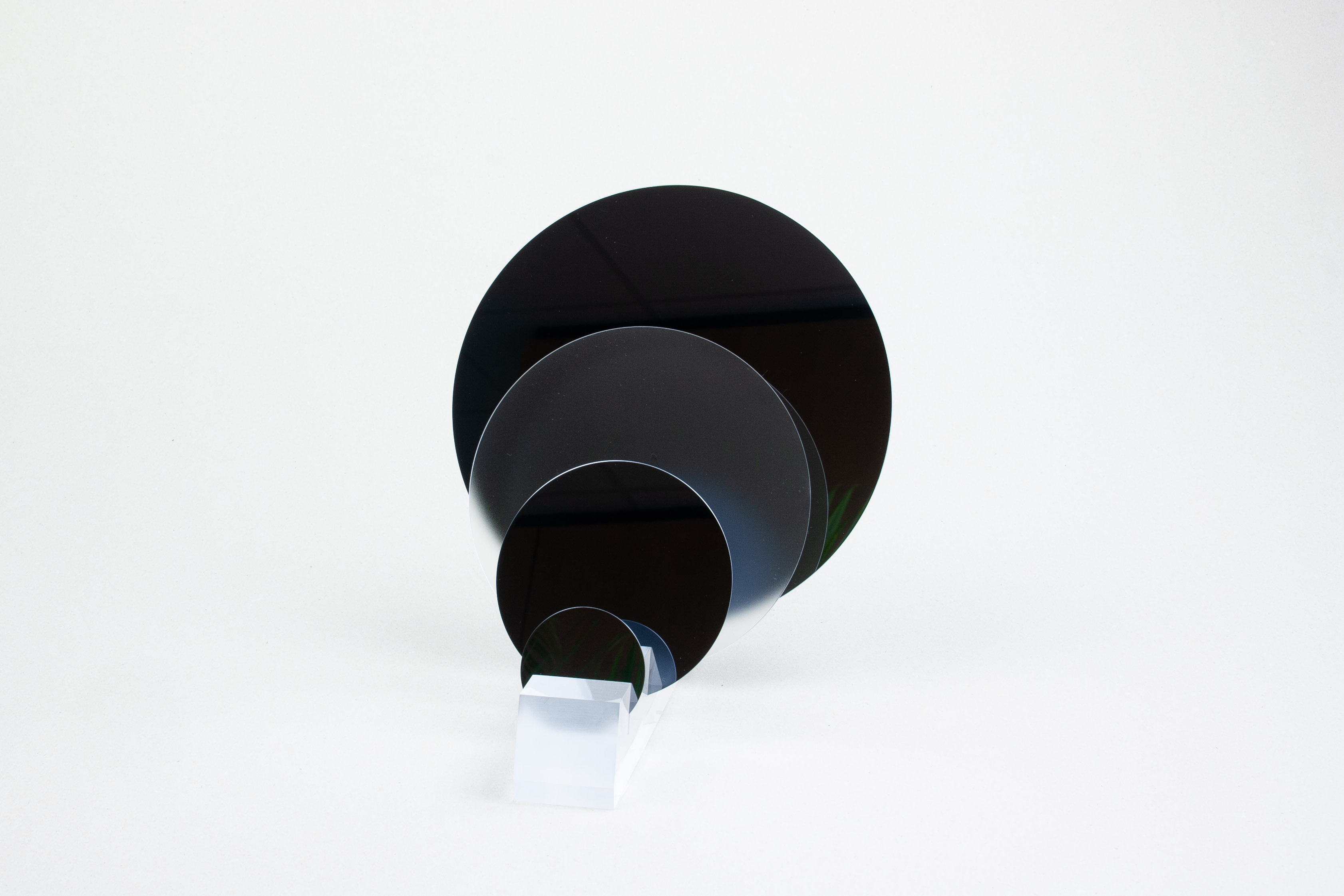

Surface

Both sides of Si wafers are always at least lapped and etched. Polishing is carried out either on one side (polished on one side, SSP =Single-Side Polished) or both sides (polished on both sides, DSP= Double-Side Polished).
The roughness of the polished side(s) is approx. 1 nm (0.5 nm is technically feasible), that of the unpolished side in the range of a few μm.

Doping and electrical resistance

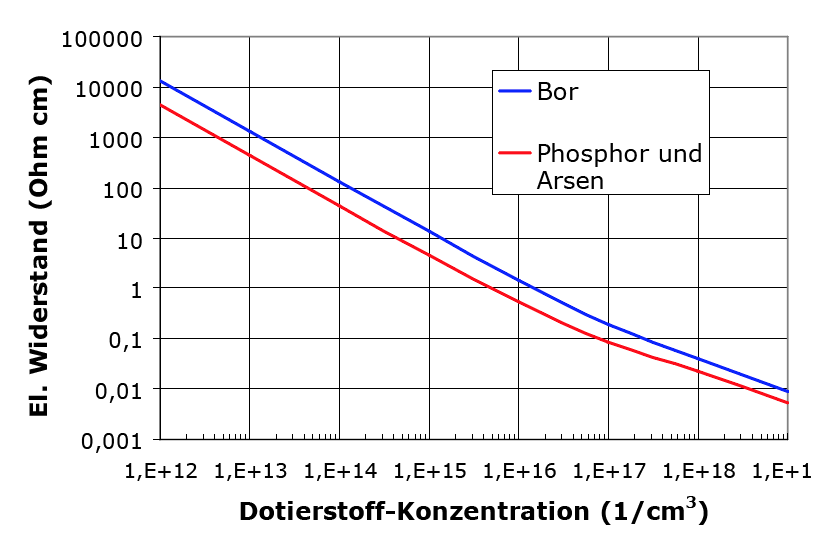

The dopants introduced during crystal growth increase the electrical conductivity of silicon by many orders of magnitude above the value of undoped silicon via free electrons (in the case of phosphorus or arsenic) or holes (boron). Below a dopant concentration of approx. c=10^₁₆ cm^_-3 the resistance R decreases reciprocally with c, above which the mobility of the charge carriers decreases increasingly due to the high concentration of impurities, which flattens the dependence R(c) (Fig. below).
Since the dopant concentration in the Si crystal varies both axially and radially , only a certain tolerance range can be specified for the electrical resistance of the wafers produced from it, which typically lies within an order of magnitude (e.g. 1 - 10 Ohm cm), but can also only span a factor of approx. two due to more defined manufacturing processes and, if necessary, subsequent sorting of the wafers in a batch .

Wafer thickness

For reasons of mechanical stability during production and further processing, the usual thickness of Si wafers depends on their diameter and is approx. 280 μm (2 inches), 380 μm (3 inches), 525 μm (4 inches), 675 μm (6 inches) and 725 μm (8 inches).
In standard manufacturing processes, the wafer thickness is limited upwards to approx. 2 mm as the polishing machines cannot accommodate thicker wafers. Many manufacturers limit the wafer thickness downwards to approx. 200 μm due to the risk of breakage during grinding and polishing.
The thickness tolerance corresponds to the variation of the thickness measured in the wafer centre over a batch. This value is usually specified as +/- 25 μm, largely independent of the wafer diameter; the measured values are often around +/- 15 μm.

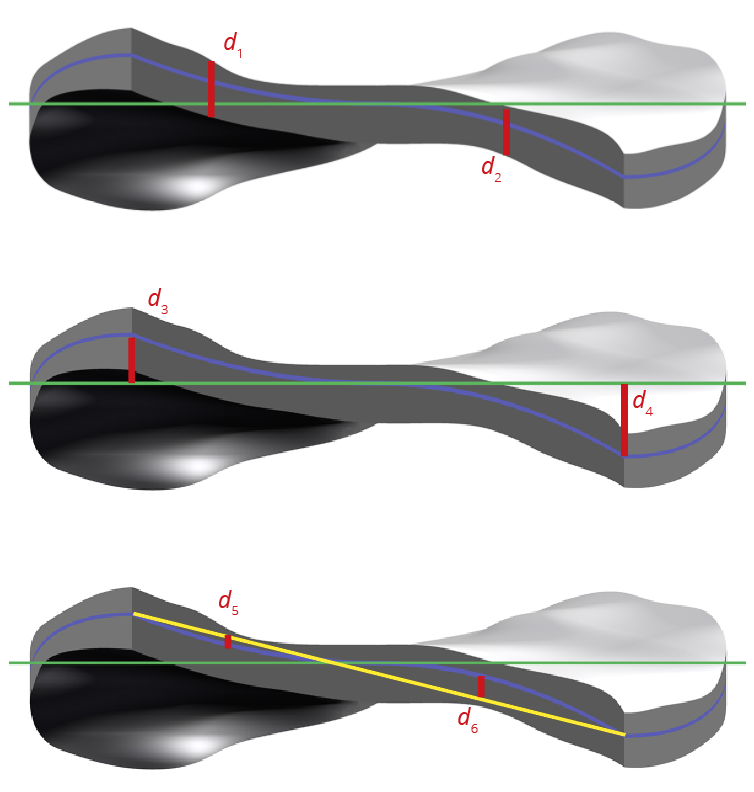

However, this distribution says nothing about how much a wafer deviates from the ideal cylinder shape. This is characterised by the TTV, Bow and Warp values described in the following with the aid of the surfaces and planes defined in the figure below.

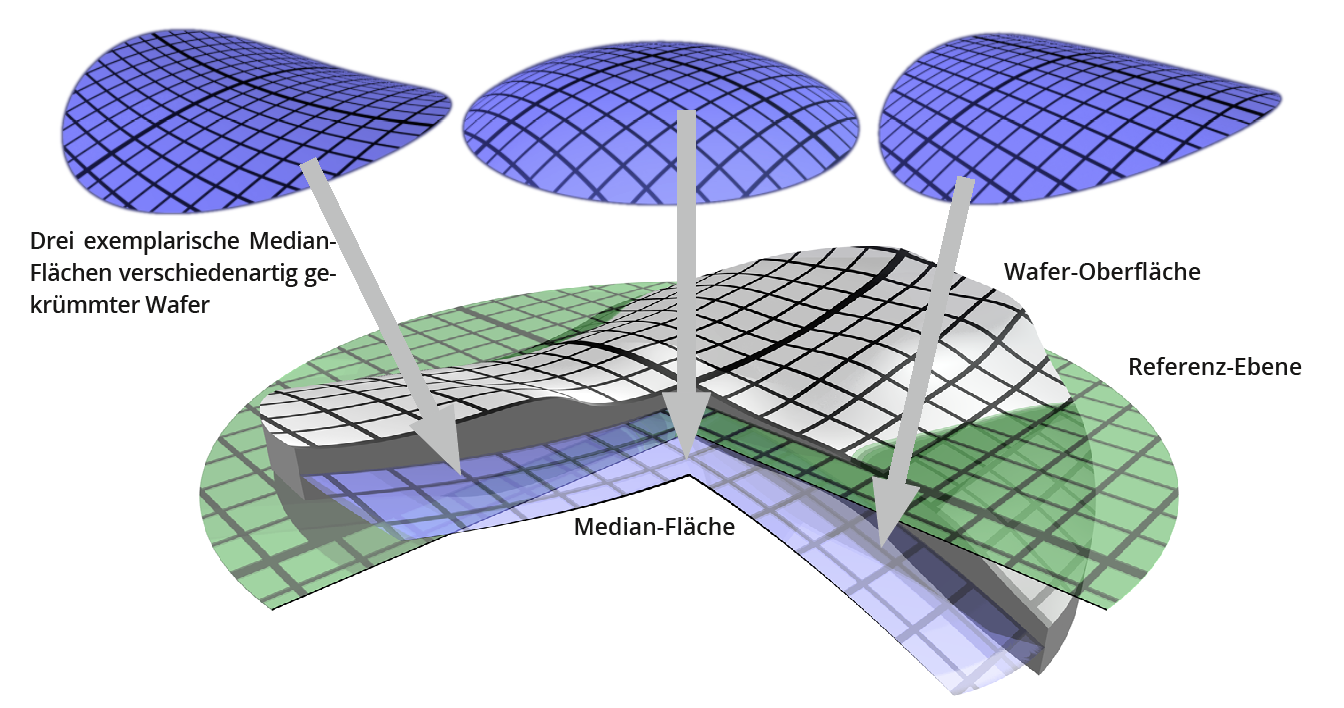

TTV

The Total Thickness Variation characterises the maximum difference _d1 - _d2 (Fig. below, top illustration) between the thickest and thinnest point of a wafer. Up to a diameter of 4 inches, wafers are usually specified to TTV < 10 μm (although TTV < 5 μm can also be realised without great technical effort), with larger diameters the achievable values for TTV also increase.

Bow

The Bow bending is defined by the maximum deviation of the median surface of the wafer from a reference plane determined via _d3 + _d4 (Fig. below, centre illustration). Up to a diameter of 4 inches, wafers are usually specified to Bow < 40 μm, with larger diameters, the achievable values for Bow also increase.

Warp

The value _d5 + _d6 (Fig. below, bottom diagram) is the deviation of the median area of a wafer from a reference plane where the bending over the entire wafer area has already been corrected. Up to a diameter of 4 inches , wafers are usually specified for warp < 40 μm; with larger diameters, the achievable values for warp also increase.

Microroughness

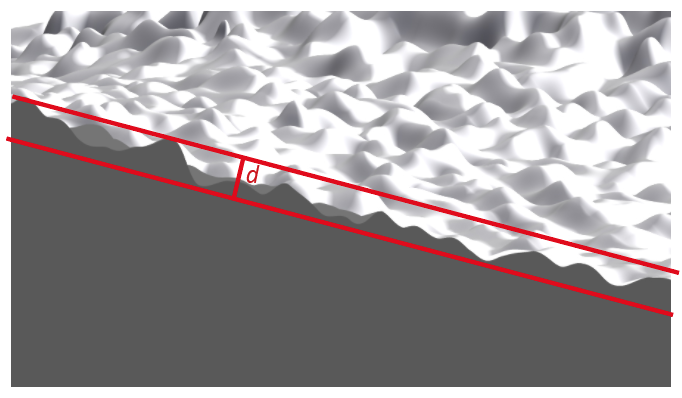

Regardless of the thickness inhomogeneity, which is expressed in the size TTV on a cm scale via the wafer, there is a roughness on a much smaller μm and nm scale, which has its origin in the polishing step during wafer production.
The root mean square (RMS) of the surface characterises how smooth the wafer is as a standard deviation of the wafer surface from the mean value (already
adjusted for TTV, bow and warp). For the polished wafer side, RMS is usually specified at < 1 nm; technically feasible are also < 0.5 nm, which is already on an atomic scale.

Laser marking

On request, our wafers can be laser-marked . This is usually a marking followed by a serial number. In principle, the laser marking can be applied to the polished front side or the back side, although marking of the polished side is only recommended to a limited extent: laser marking creates burrs at the edges of the marking, so laser marking should take place before the polishing step of the wafer. During polishing, however, the wafers thin out and the legibility of the laser marking decreases with the removal during polishing. For larger batches (e.g. > 200 wafers), laser marking can usually be carried out for well under € 1.00 / wafer. Subsequent laser marking of wafers that we already have in stock is somewhat more expensive.
