PACKAGING
Wafer boxes and 250ml empty bottles
Due to our daily handling of photoresists, auxiliaries and wafers, we can also offer our customers various packaging for sale in addition to our products. Our 250ml plastic bottle is ideal for decanting photoresists. We also offer 25-wafer boxes and single wafer shippers in various sizes.
Plastic bottle - 0.25 l
FPR0250
Ausführung:
0.25 l
Empty Plastic Bottle
with UN Registration
General Information
The Plastic Bottles have a DIN GL45 connection. This is the same connection/cup as we use them for all our other containers for resists and ancillaries. The bottle is made from black plastic comes with a BAM UN registration for a safe storage and transport of photosensitive and other chemicals and is perfectly suited for refilling of e.g. photo resists. We supply this bottle with a cap with a Teflon sealing and tamper-evident closures.
Further technical details about the bottles can be found in the data sheet.
Further Information
Product Details:
Weights and Dimensions EN
Gewichte und Maße DE
Plastic bottle - cleaned 0.25 l
FPR0250C
Ausführung:
0.25 l
Empty Plastic Bottle Cleaned
with UN Registration
General Information
The two stage cleaned plastic bottles with Acetone and Isopropyl alcohol have a DIN GL45 connection. This is the same connection/cup as we use them for all our other containers for resists and ancillaries. The bottles are made from black plastic and comes with a BAM UN registration for a safe storage and transport of photosensitive and other chemicals and is perfectly suited for refilling of e.g. photo resists.
We supply this bottle with a cap with a teflon sealing and tamper-evident closures. The cleaned bottles are single packed in a PE bag each.
Further Information
Product Details:
Weights and Dimensions english
Gewichte und Maße german

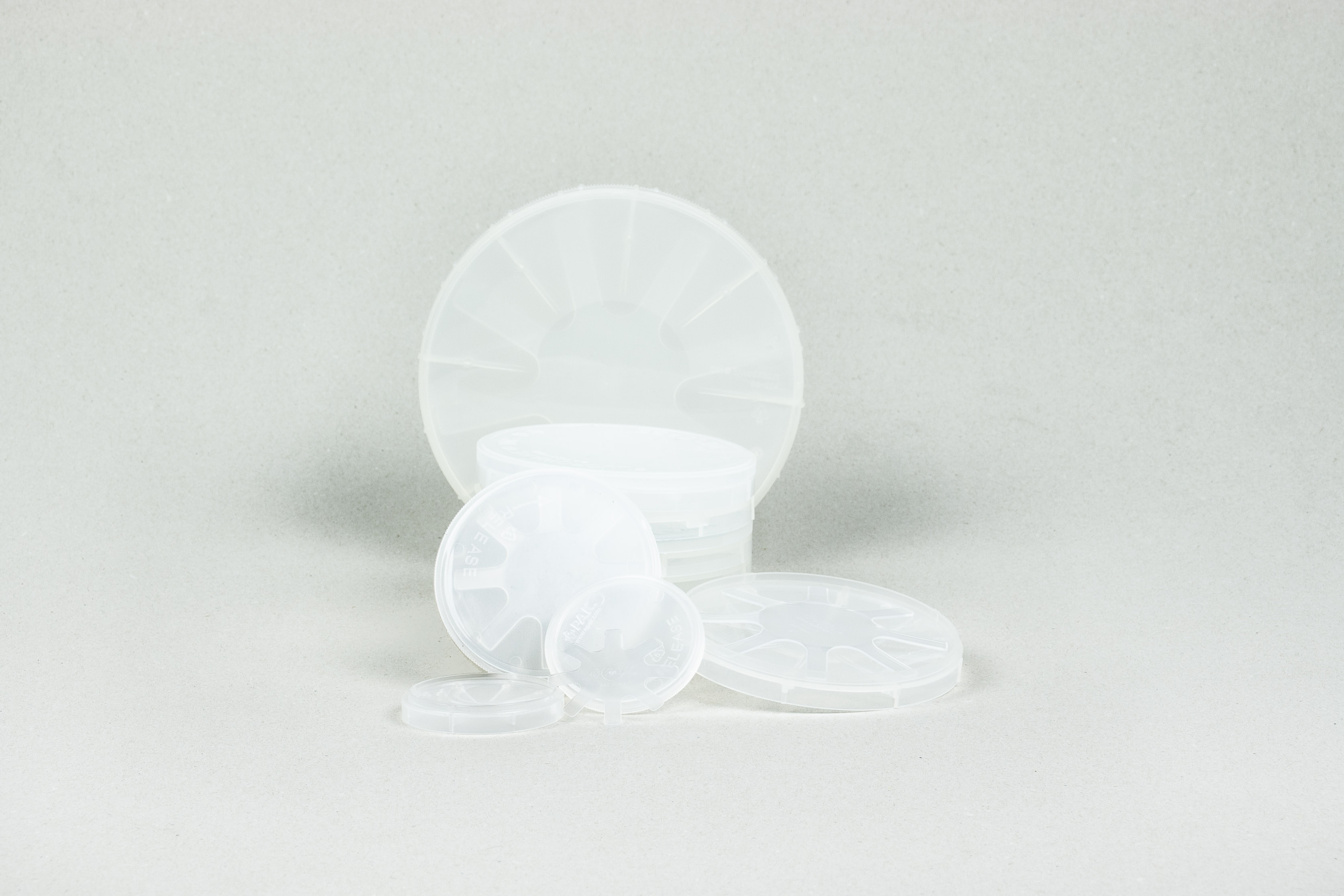

Single wafer shipper - 2 inch
From
€5.00*
wafer_shipper_2_inch
Size:
2 Inch
Single Wafer Shipper
Designed for 1 Wafers
The single wafer shipping container for safe transporting are available in different sizes (2 inch till 8 inch) and are made of Natural Polypropylene. The wafer shippers are cylindrical shaped and usually include a spring. The coin style shippers are designed to absorb impact and have a screw-on lid for secure packing of your wafers.
Technical Details
Type: "Coin Style" Single Wafer Shipper
Sizes: 2" (50 mm) internal diameter: 52 mm
3" (76 mm) internal diameter: 78.6 mm
4" (100 mm) internal diameter: 104 mm
6" (150 mm) internal diameter: 152 mm
8" (200 mm) internal diameter: 200 mm (Clamshell Style Shippers)
Material: Natural Polypropylene
Color: Transparent
Assembly includes lid, base and spring

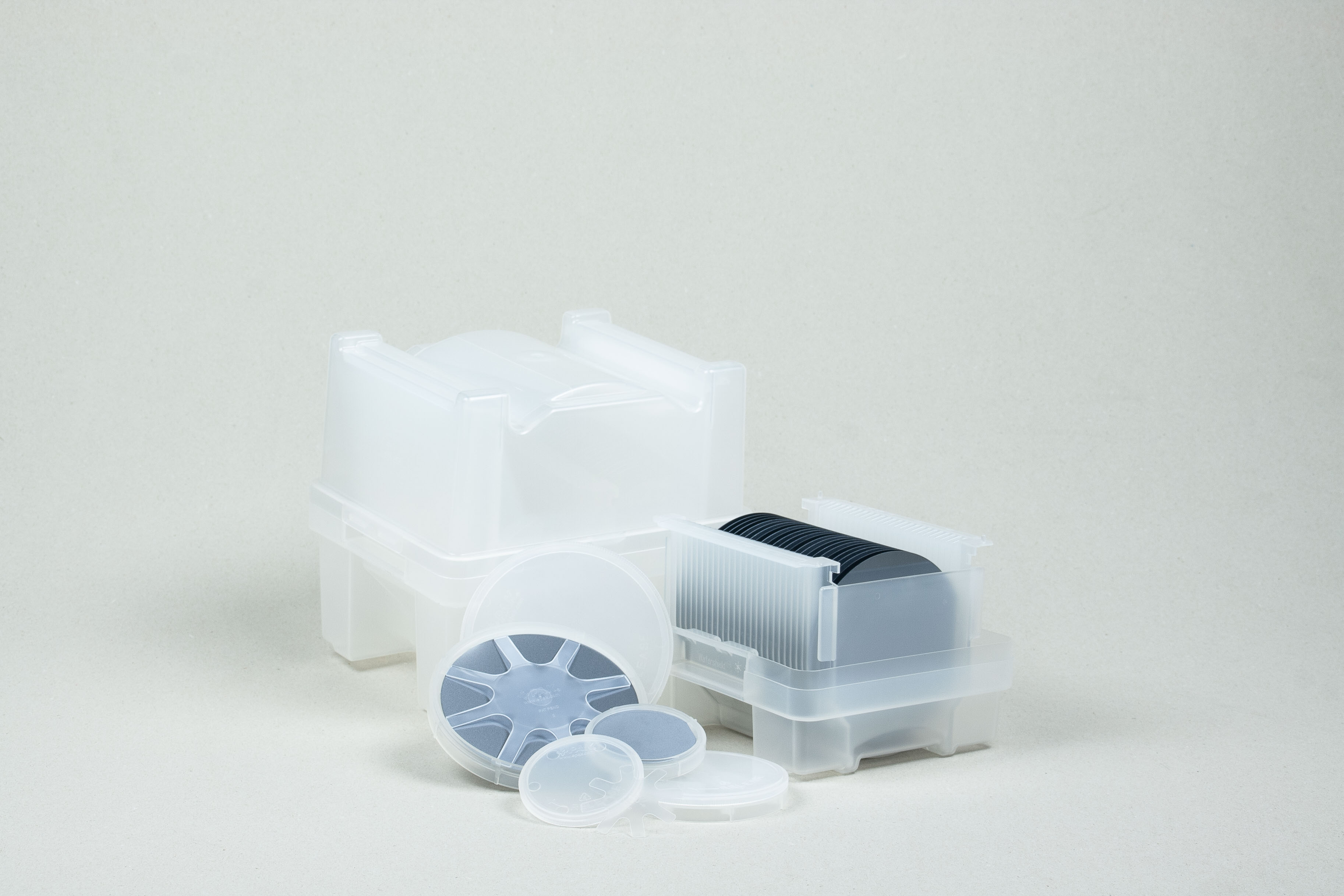

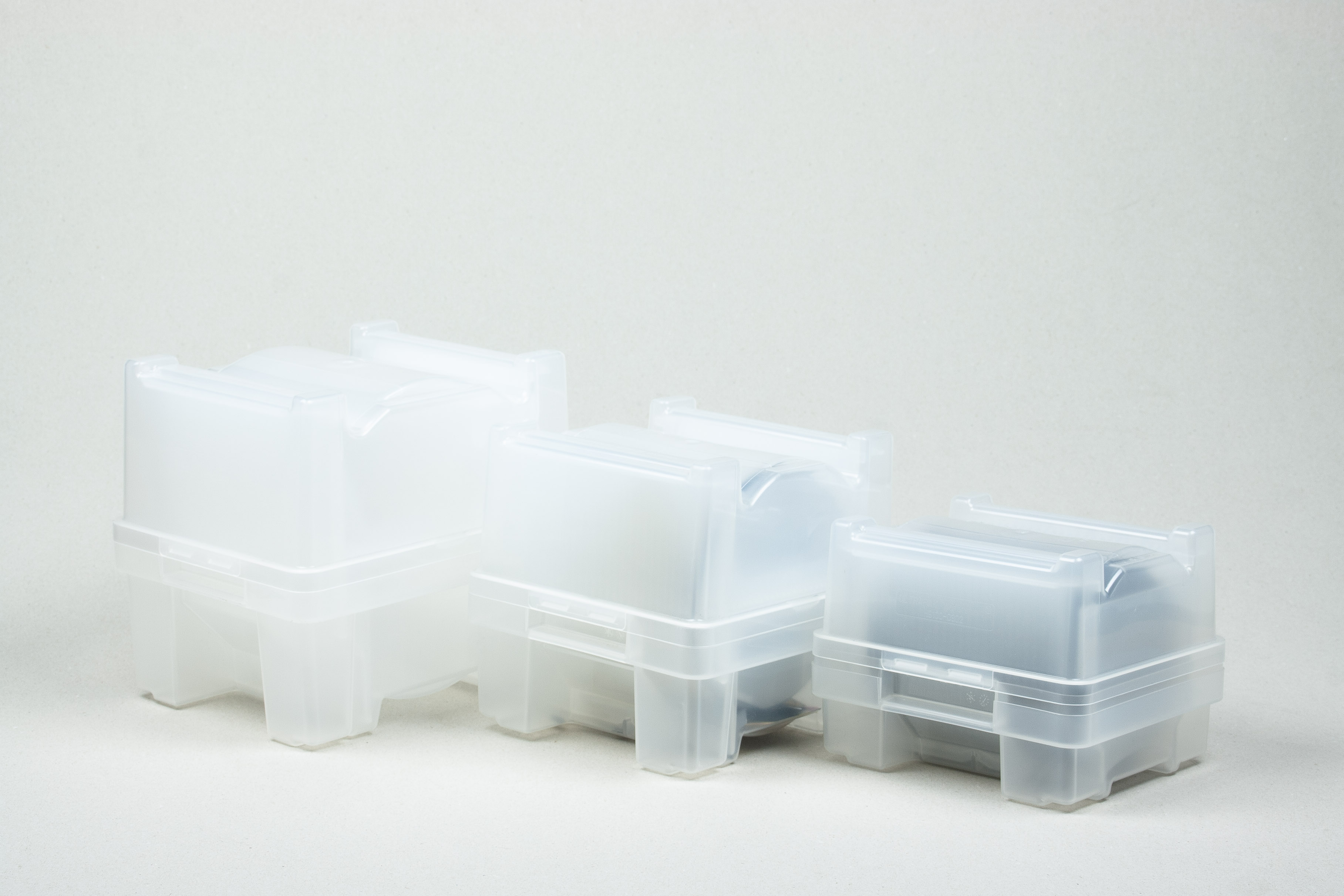

Wafer Box 25 x 2 Inch
From
€7.80*
wafer_box_2_inch
Size:
2 Inch
Wafer Box
Designed for 25 Wafers
The wafer boxes are designed to hold 25 wafers by the edge and ensures a safe transport. The boxes are available in different sizes (2 inch till 8 inch) and are made from ultra-clean Natural Polypropylene. The wafer boxes are designed to interface with automated equipment and includes three pieces (lid, casette and base).
Technical Details
Type: Wafer Shipping Boxes
Sizes: 2" (50 mm) internal diameter: 50 mm
3" (76 mm) internal diameter: 76 mm
4" (100 mm) internal diameter: 100 mm
6" (150 mm) internal diameter: 150 mm
8" (200 mm) internal diameter: 200 mm
Material: Natural Polypropylene
Color: Transparent
Number of wafers held: 25
Assembly includes lid, casette and base
