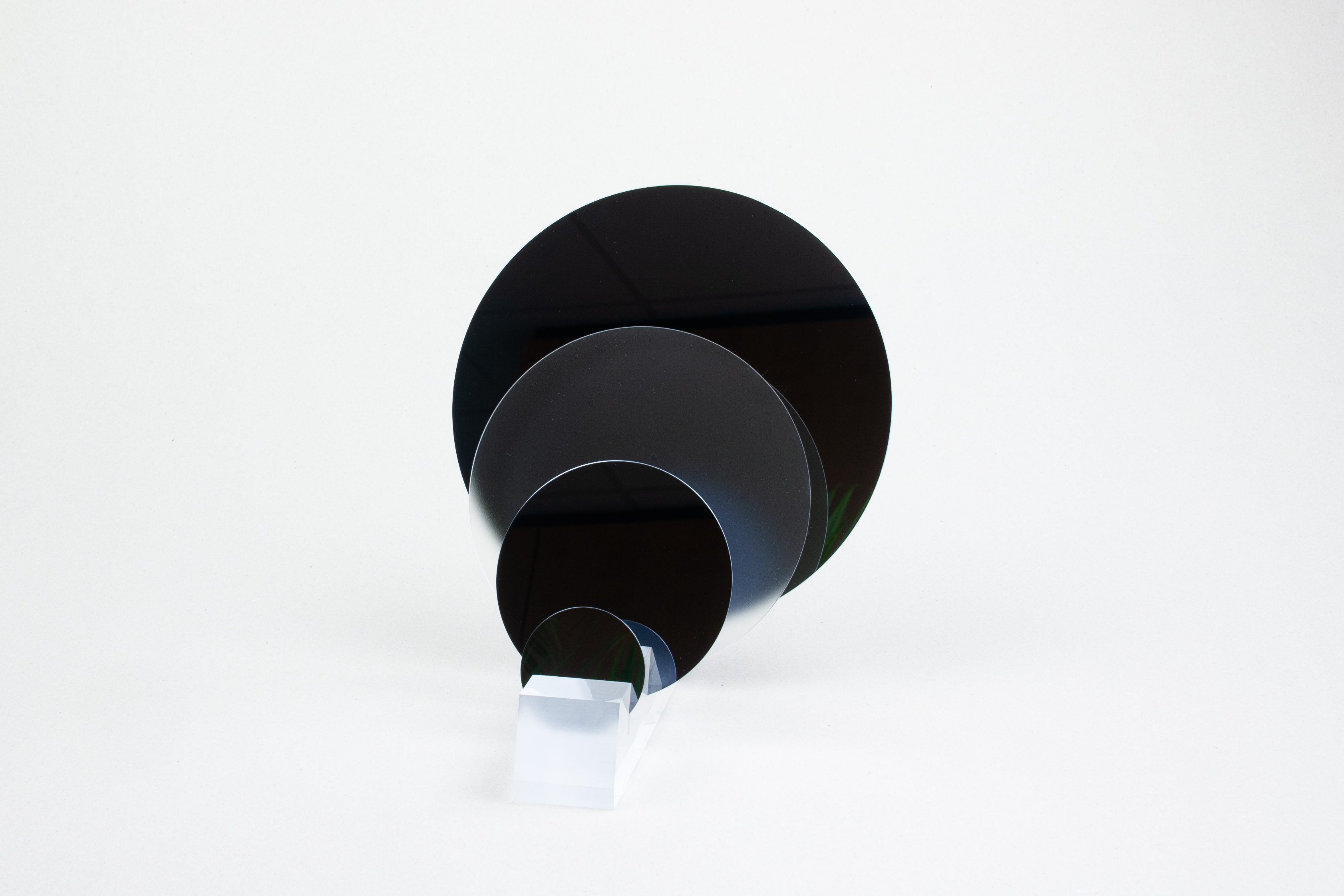

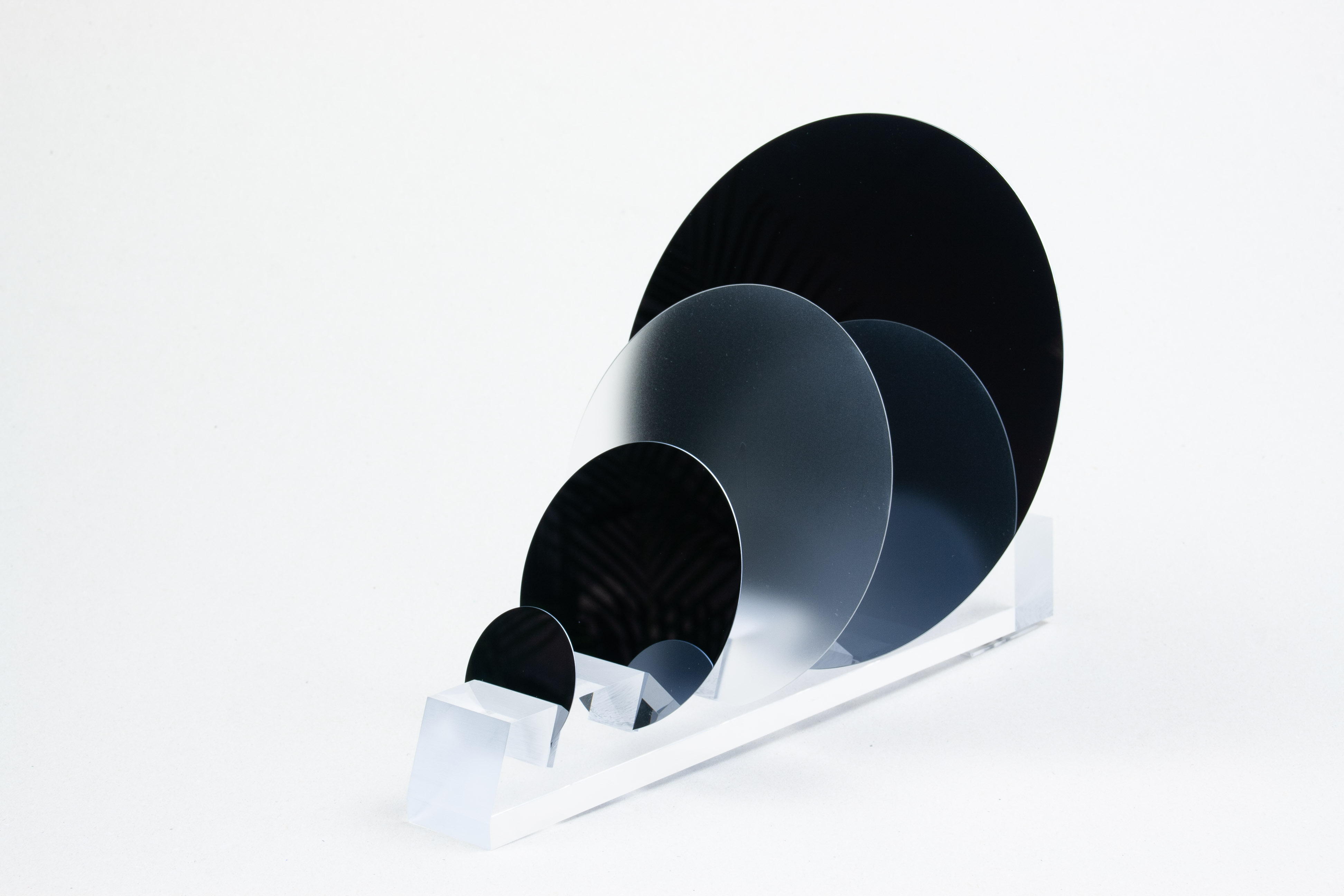

CZ-Si wafer 4 inch 380 um (100) DSP B-doped

Prime CZ-Si wafer 380 µm 100

Quantity	Unit price
To 4	€39.00*
To 9	€30.00*
To 24	€24.00*
To 49	€18.00*
To 99	€17.00*
To 199	€16.00*
To 499	€15.00*
From 500	€14.00*

Prices excl. VAT plus shipping costs

Wafer

Send us an inquiry if you have any questions about articles, purchase quantities, delivery times or sample requests!

Product enquiry / price on request

Product number: WSA40380155B1314SNN3

Product information "CZ-Si wafer 4 inch 380 um (100) DSP B-doped"

Prime CZ-Si wafer 4 inch, thickness = 380 ± 15 µm, (100), 2-side polished, p-type (Boron), TTV < 5 µm, 1 - 10 Ohm cm, Bow/Warp < 30 µm, Laser-marking: B0001-xxxMSCC (xxx = 000 - 999, MS = vendor code, CC = check code), top of characters towards edge, Font SEMI OCR, height 1.0 +/- 0.025 mm, width 0.5 +/- 0.025 mm, spacing 0.875 +/- 0.025 mm, dot matrix density (W x H) 5x9, distance to edge 1.1 +/- 0.3 mm, laser mark depth < 50 µm, on front side in the middle of the long flat

Diameter (round):	4 inch
Material:	CZ-Si
Orientation:	100
Quality:	Prime
Resistivity:	1 - 10 Ohm cm
Surface:	2-side polished
Thickness:	301 - 400 µm
