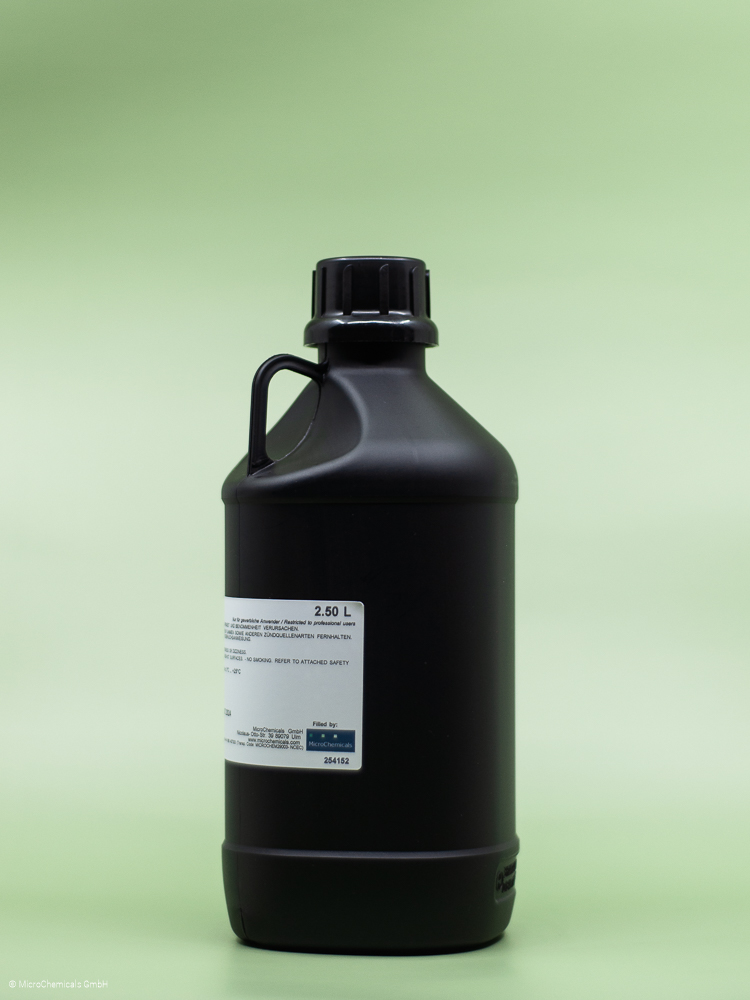

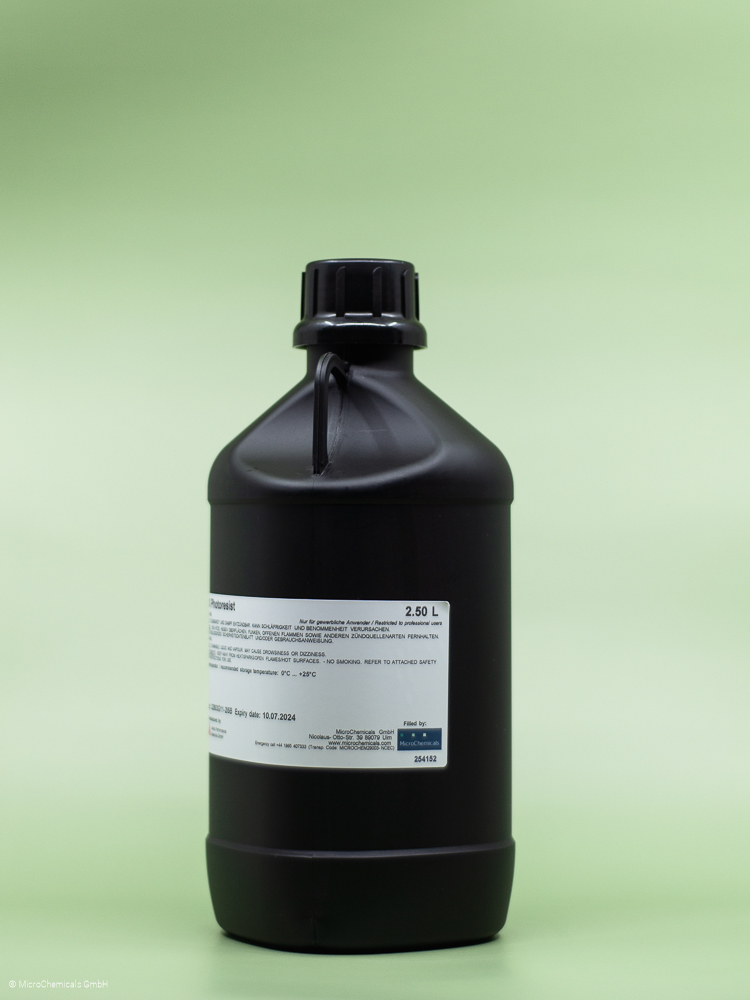

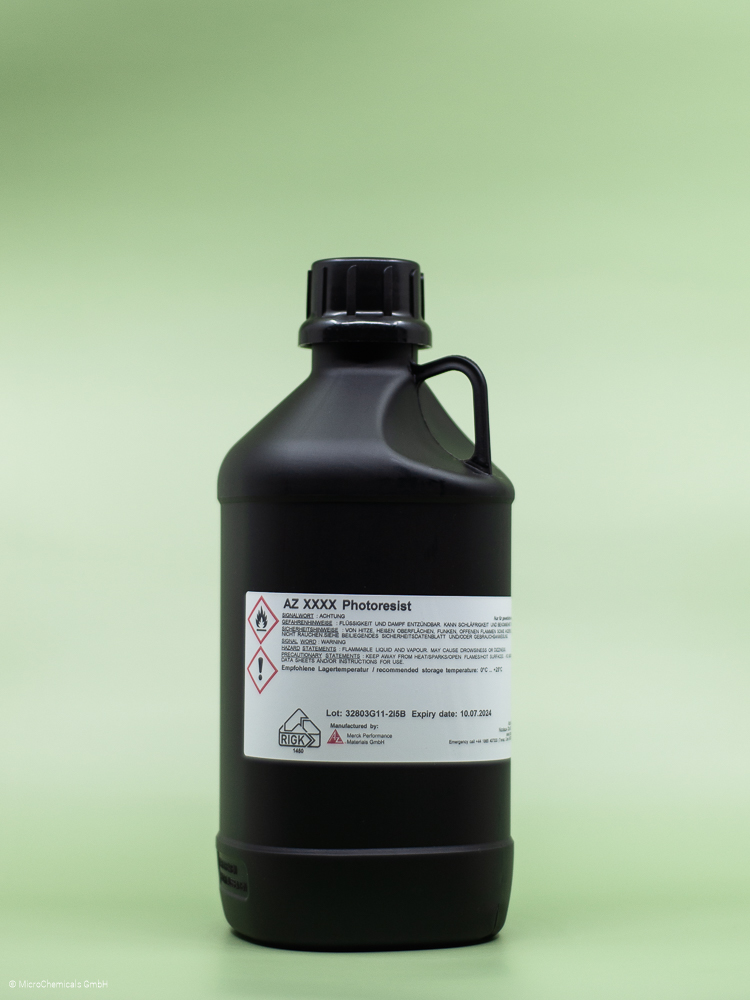

AZ LNR-003 diluted - 1:0.3 with PGMEA - 2.50 l
Merck Performance Materials GmbH
The AZ® LNR-003 diluted is a negative resist for lift off applications with strong undercut.
The prices are visible after registration.
Send us an inquiry if you have any questions about articles, purchase quantities, delivery times or sample requests!
Product number:
1LNR00313P02
Manufacturer:
Merck Performance Materials GmbH
Product information "AZ LNR-003 diluted - 1:0.3 with PGMEA - 2.50 l"
AZ® LNR-003 diluted - 1:0.3 with PGMEA
Negative Resist for Lift-off Applications
General Information
AZ® LNR-003 is a negative resist for film thicknesses of approx. 3 - 5 µm (diluted down to 1 µm), which allows an adjustable and strong undercut (negative resist profile) even at small resist film thicknesses for also ambitious lift-off applications. Its high thermal stability prohibits thermal reflow during coating for reproducible lift-off results.
Product Properties
- High resolution
- Very strong undercut, for lift-off
- Compatible with TMAH-based developers, other developers are possible
- Compatible with all common strippers (e. g. with AZ® 100 Remover, organic solvents, or aqueous alkaline)
- i-line sensitive (approx. 320 - 390 nm)
- Resist film thickness range approx. 3 - 5 µm
- High thermal stability
Developers
We recommend the TMAH-based developers AZ® 2026 MIF, AZ® 326 MIF or AZ® 726 MIF. Other NaOH- or KOH-based developers are generally possible.
Removers
We recommend the NMP-free removers such as AZ® 910 Remover or TechniStrip NI555 or, in case of alkaline sensitive materials such as aluminium, TechniStrip MLO07, which both can dissolve also crosslinked resist films.
Thinning/ Edge Bead Removal
We recommend for thinning and edge bead removal the AZ® EBR Solvent.
Further Information
MSDS:
Safety Data Sheet AZ® LNR-003 Photoresist english
Sicherheitsdatenblatt AZ® LNR-003 Fotolack german
TDS:
Technical Data Sheet AZ® LNR-003 english
Information AZ® LNR-003 english
Application Notes:
Further Information about Photoresist Processing
