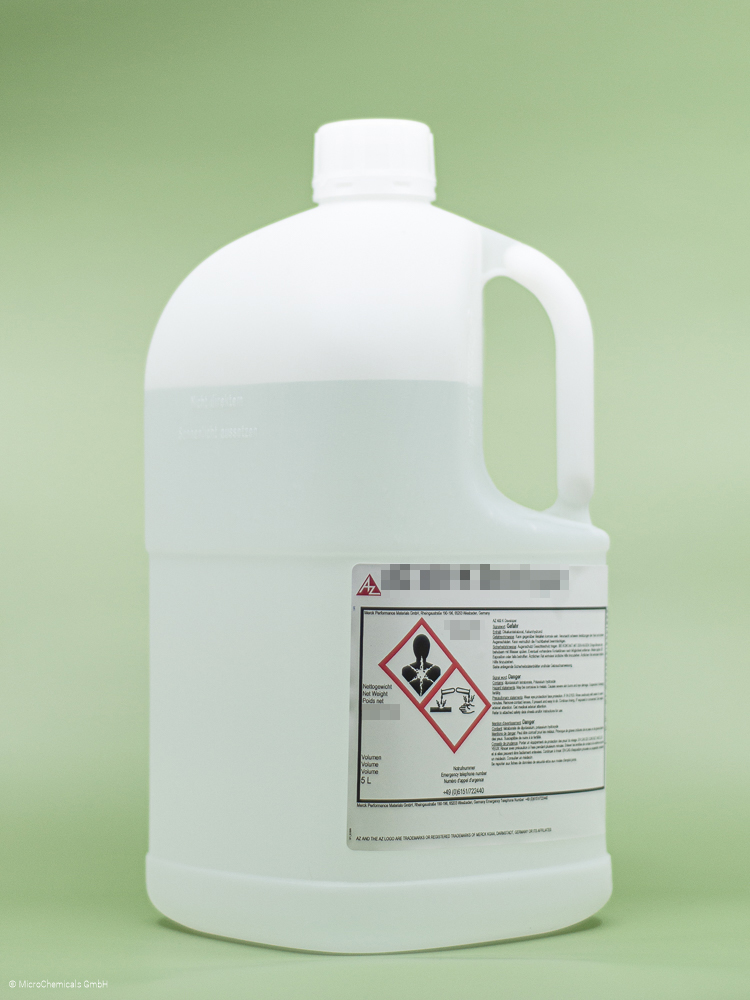

AZ 400 K Dev 1:4 - 5.00 l
Merck Performance Materials GmbH
AZ® 400K Developer 1:4 is a buffered, KOH based developer formulation for many positive and image reversal resists.
The prices are visible after registration.
Send us an inquiry if you have any questions about articles, purchase quantities, delivery times or sample requests!
Product number:
1004145
Manufacturer:
Merck Performance Materials GmbH
Product information "AZ 400 K Dev 1:4 - 5.00 l"
AZ® 400K Developer 1:4
Inorganic, Metal Ion Containing Developer
General Information
AZ® 400K Developer 1:4 is a boric acid buffered, KOH-based ready-to-use developer for non-chemically amplified positive resists.
Product Features
AZ® 400K Developer 1:4 is an AZ® 400K that has already been pre-diluted for use. As a KOH-based developer, this developer is particularly suitable for developing thicker, non-chemically amplified positive resists, but can also be used for thinner resist layers if the resolution requirements are not too high. AZ® 400K Developer is less suitable for negative resists or chemically amplified positive resists; TMAH-based developers such as the AZ® 326 MIF, AZ® 726 MIF or AZ® 2026 MIF are recommended here. AZ® 400K Developer attacks aluminum with an etching rate of - depending on the concentration of the developer dilution - several 10 nm/min to over 100 nm/min. If this cannot be tolerated, the Al-compatible AZ® Developer can be an alternative.
Further Information
Our safety data sheets and some of our technical data sheets are password-protected.
You will receive the access data after completing the form.
The access data for the data sheets are not your login data from our shop!
MSDS:
Safety Data Sheet AZ® 400K 1:4 Developer english
Safety Data Sheet AZ® 400K 1:4 Developer german
TDS:
Technical Data Sheet AZ® 400K 1:4 Developer english
Information AZ® 400K 1:4 Developer english
Application Notes:
Development of Photoresist english
Development of Photoresist german
Related products
AZ 400 K Developer - 5.00 l
1000400
AZ® 400K Developer
Inorganic, Metal Ion Containing Developer
General Information
AZ® 400K Developer is a boric acid buffered, KOH-based developer for non-chemically amplified positive resists.
Product Features
As a KOH-based developer, AZ® 400K is particularly suitable for developing thicker, non-chemically amplified positive resists, but can also be used for thinner resist layers if the resolution requirements are not too high. AZ® 400K comes as a concentrate and is usually diluted 1: 4 with water. To increase selectivity, a 1: 5 - 1:6 dilution can also be selected, but this significantly reduces the development rate and is therefore not a reasonable option for thick resist processing. For very thick resist films and/or very steep resist sidewalls are not required, AZ® 400K can also be used at a stronger dilution (1:3.5 - 1:3), which increases the development rate but significantly increases the dark removal. AZ® 400K is less suitable for negative resists or chemically amplified positive resists; TMAH-based developers such as the AZ® 326 MIF, AZ® 726 MIF or AZ® 2026 MIF are recommended here. AZ® 400K attacks aluminum with an etching rate of - depending on the concentration of the developer dilution - several 10 nm/min to over 100 nm/min. If this cannot be tolerated, the Al-compatible AZ® Developer can be an alternative.
Further Information
Our safety data sheets and some of our technical data sheets are password-protected.
You will receive the access data after completing the form.
The access data for the data sheets are not your login data from our shop!
MSDS:
Safety Data Sheet AZ® 400K Developer english
Safety Data Sheet AZ® 400K Developer german
TDS:
Technical Data Sheet AZ® 400K Developer english
Information AZ® 400K Developer english
Application Notes:
Development of Photoresist english
Development of Photoresist german
AZ Developer - 5.00 l
1000001
AZ® Developer
Inorganic, Metal Ion Containing Developer
General Information
AZ® Developer is a sodium salt-based, aluminum-compatible developer for non-chemically amplified positive resists.
Product Features
AZ® Developer is based on an aqueous Sodium metasilicate/Sodium phosphate solution. In contrast to NaOH, KOH or TMAH-based developers, this developer does not show any significant aluminum attack and is suitable for the development of non-chemically amplified positive resists. For thicker resist layers or when the requirements for resolution and steepness of the resist sidewalls are not too high, the AZ® Developer can be used undiluted. For thin resists and higher resolution requirements, it can be diluted 1:1 with water. An AZ® Developer: Water = 2:1 dilution represents a good compromise for many applications. For negative resists or chemically amplified positive resists, the AZ® Developer usually does not show satisfactory results. TMAH-based developers are recommended for these, but these are not aluminum compatible.
Further Information
Our safety data sheets and some of our technical data sheets are password-protected.
You will receive the access data after completing the form.
The access data for the data sheets are not your login data from our shop!
MSDS:
Safety Data Sheet AZ® Developer english
Safety Data Sheet AZ® Developer german
TDS:
Technical Data Sheet AZ® Developer english
Application Notes:
Development of Photoresist english
Development of Photoresist german

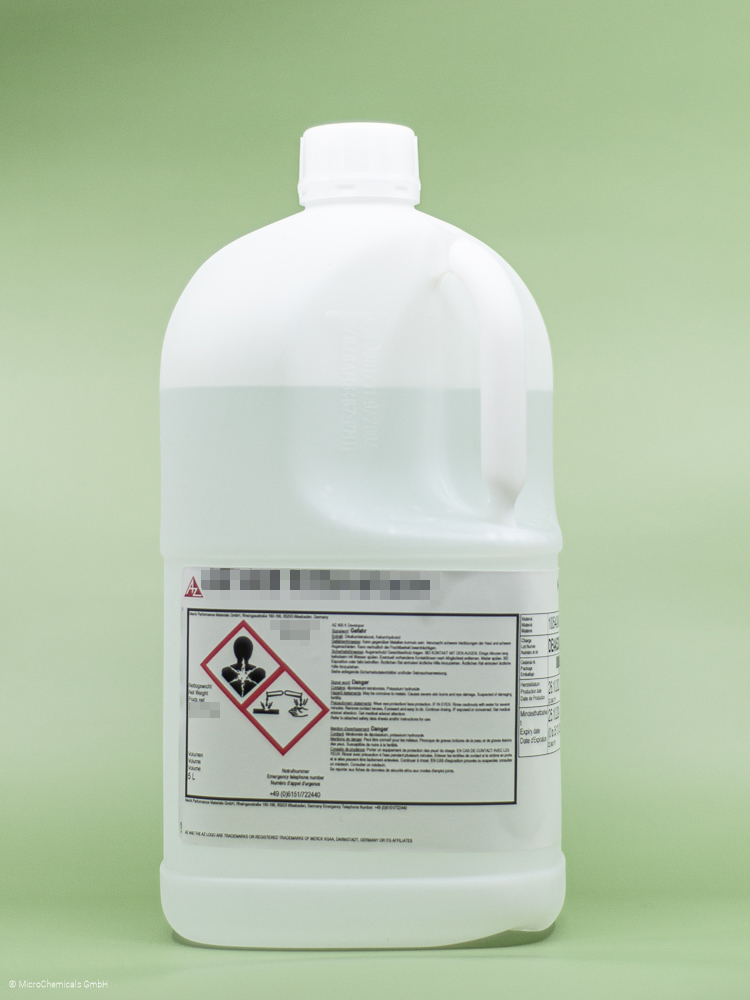

AZ 303 Developer - 5.00 l
1000303
AZ® 303 Developer
Inorganic, Metal Ion Containing Developer
General Information
AZ® 303 MIC is a KOH and NaOH based developer for positive and negative resists.
Product Features
AZ® 303 Developer is based on an aqueous KOH and NaOH solution and contains strong surfactants. It is compatible with positive and negative resists and is therefore suitable, for example, as the only non-TMAH-based developer for the AZ® nLOF 2000 series. AZ® 303 Developer is usually used diluted 1: 5 - 1:10 with water.
Further Information
Our safety data sheets and some of our technical data sheets are password-protected.
You will receive the access data after completing the form.
The access data for the data sheets are not your login data from our shop!
MSDS:
Safety Data Sheet AZ® 303 Developer english
Safety Data Sheet AZ ® 303 Entwickler german
TDS:
Technical Data Sheet AZ® 303 Developer english
Application Notes:
Development of Photoresist english
Development of Photoresist german

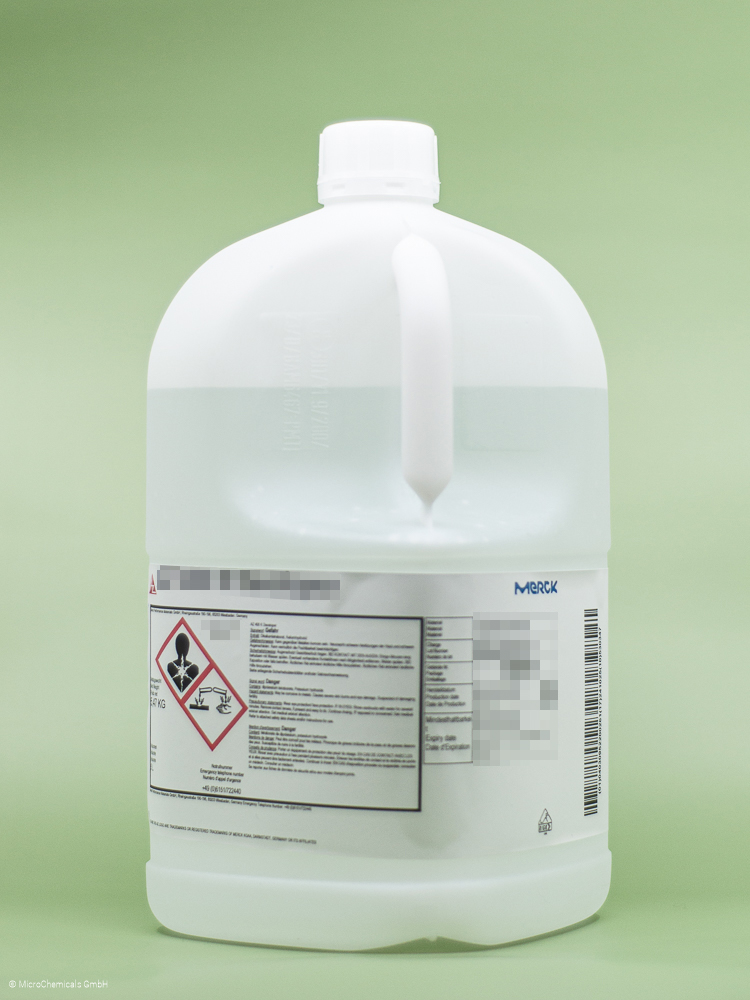

AZ 351 B Developer - 5.00 l
