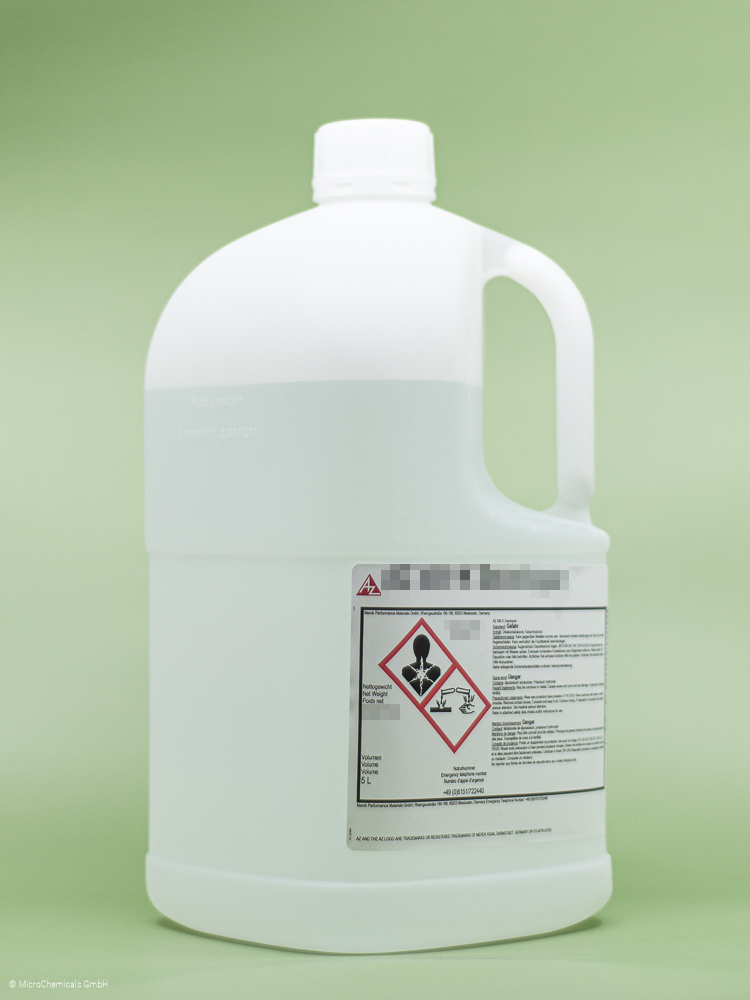

AZ 326 MIF Developer - 5.00 l

Merck Performance Materials GmbH

AZ® 326 MIF Developer is a developer formulation with 2.38 % TMAH (tetramethylammoniumhydroxide) in H2O.

The prices are visible after registration.

Price available after login.

Send us an inquiry if you have any questions about articles, purchase quantities, delivery times or sample requests!

Product enquiry / price on request

Product number: 1000326

Manufacturer: Merck Performance Materials GmbH

Product information "AZ 326 MIF Developer - 5.00 l"

AZ^® 326 MIF Developer

Metal Ion-free Developer

General Information

AZ^® 326 MIF is a TMAH-based developer for dip or spray development, compatible with all AZ^{®</sup photoresists from our portfolio.}

Product Features

The ready-to-use AZ^® 326 MIF developer is an aqueous 2.38% TMAH solution without any additives. This makes it suitable for dip or spray development, but less for puddle development, for which the AZ^® 726 MIF developer is the better choice due to its special surfactant for substrate wetting. TMAH-based developers are always used when development must be carried out metal ion free. In addition, TMAH- based developers are primarily recommended for our chemically amplified positive resists and our negative resists. For very thin resist layers (< 1 µm) or very high resolution requirements, it can be useful to dilute the AZ^® 326 MIF with water (AZ^® 326 MIF : water = 2:1 to a maximum of 1:1). AZ^® 326 MIF attacks aluminum with an etching rate of approx. 70 nm/min. If this cannot be tolerated, the Al-compatible AZ^® Developer is an alternative, which, however, is based on sodium compounds and is therefore not metal ion-free.
For standard (non chemically amplified), DNQ-based positive resists without the requirement of metal ion-free development, a KOH- or NaOH-based developer such as AZ^® 400K or AZ^® 351B can be considered instead of a TMAH-based developer for cost reasons. For cross-linking negative resists, AZ^® 2026 MIF can prove advantageous, which promotes residue-free development with these resists through certain additives.

Further Information

Our safety data sheets and some of our technical data sheets are password-protected.
You will receive the access data after completing the form.
The access data for the data sheets are not your login data from our shop!

MSDS:
Safety Data Sheet AZ^® 326 MIF Developer english
Safety Data Sheet AZ^® 326 MIF Entwickler german

TDS:
Technical Data Sheet AZ^® 326 MIF Developer english

Application Notes:
Development of Photoresist english
Development of Photoresist german

Related products

Details

AZ 2026 MIF Developer - 5.00 l

1002026

AZ® 2026 MIF Developer Metal Ion-free Developers General Information AZ® 300 MIF, AZ® 326 MIF, AZ® 726 MIF and AZ® 2026 MIF Developers are developer formulations with 2.38 % TMAH (tetramethylammoniumhydroxide) in H2O. The AZ® 726 MIF Developer contains additionally a surfactant for better wetting and easy to settle up of puddle development. Additionally to the wetting agent of the AZ® 726 MIF the AZ® 2026 MIF contains a scum remover for complete and scum-free removal of resist layers on the price of a slightly higher dark erosion ratio. However, for our negative resists, such as AZ® nLof 2000 series, AZ® 15nXT series, AZ® 125nXT resists this developer shows outstanding performance. Even for a positive resist like AZ® 10XT resist it significantly reduces t-topping if this problem occurs. AZ® 2033 MIF is 3.00 % TMAH in H2O with surfactants added for fast and homogeneous substrate wetting and further additives for removal of resist residuals (residues in certain lacquer families), but at the cost of a higher dark removal. Compared to the AZ® 2026 MIF, the normality is not 0.26 but 0.33. Thus the development rate is higher with the AZ® 2033 MIF Developer. Further Information MSDS: Safety Data Sheet AZ® 2026 MIF Developer english Sicherheitsdatenblatt AZ® 2026 MIF Developer deutsch TDS: Technical Data Sheet AZ® 2026 MIF Developer english Application Notes: Development of Photoresist english Entwicklung von Fotolack deutsch

Details

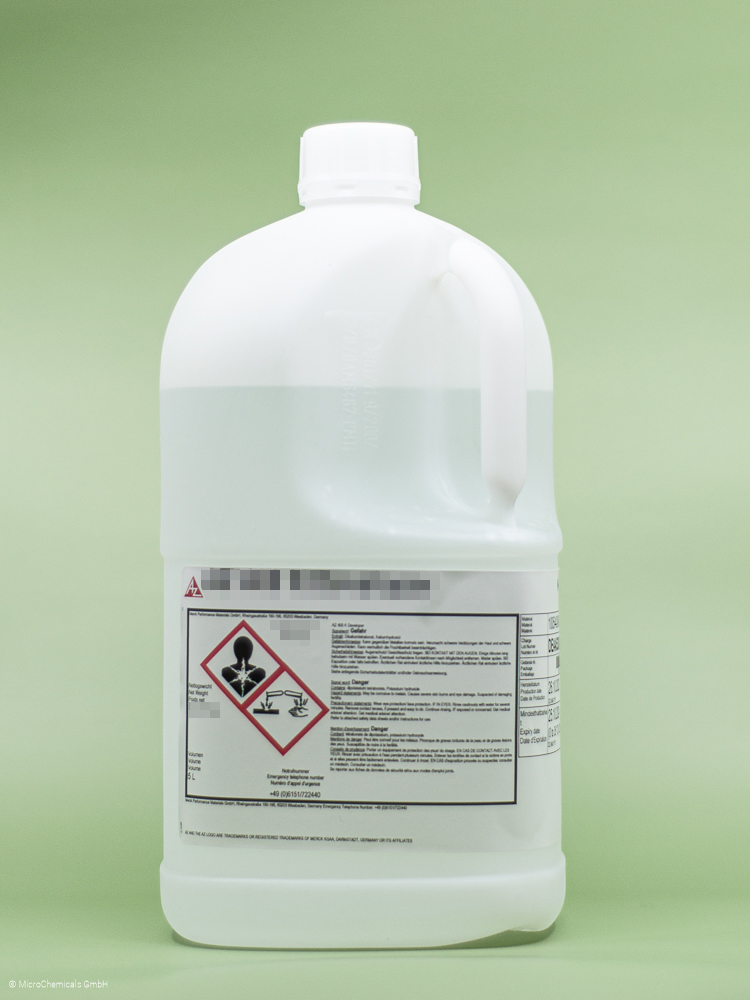

AZ 2033 MIF Developer - 5.00 l

1002033

AZ® 2033 MIF Developer Metal Ion-free Developers General Information AZ® 300 MIF, AZ® 326 MIF, AZ® 726 MIF and AZ® 2026 MIF Developers are developer formulations with 2.38 % TMAH (tetramethylammoniumhydroxide) in H2O. The AZ® 726 MIF Developer contains additionally a surfactant for better wetting and easy to settle up of puddle development. Additionally to the wetting agent of the AZ® 726 MIF the AZ® 2026 MIF contains a scum remover for complete and scum-free removal of resist layers on the price of a slightly higher dark erosion ratio. However, for our negative resists, such as AZ® nLof 2000 series, AZ® 15nXT series, AZ® 125nXT resists this developer shows outstanding performance. Even for a positive resist like AZ® 10XT resist it significantly reduces t-topping if this problem occurs. AZ® 2033 MIF is 3.00 % TMAH in H2O with surfactants added for fast and homogeneous substrate wetting and further additives for removal of resist residuals (residues in certain lacquer families), but at the cost of a higher dark removal. Compared to the AZ® 2026 MIF, the normality is not 0.26 but 0.33. Thus the development rate is higher with the AZ® 2033 MIF Developer. Further Information MSDS: Safety Data Sheet AZ® 2033 MIF Developer english Sicherheitsdatenblatt AZ® 2033 MIF Entwickler german TDS: Technical Data Sheet AZ® 2033 MIF Developer english Application Notes: Development of Photoresist english Entwicklung von Fotolack german

Details

AZ 726 MIF Developer - 5.00 l

1000726

AZ® 726 MIF Developer Metal Ion-free Developers General Information AZ® 300 MIF, AZ® 326 MIF, AZ® 726 MIF and AZ® 2026 MIF Developers are developer formulations with 2.38 % TMAH (tetramethylammoniumhydroxide) in H2O. The AZ® 726 MIF Developer contains additionally a surfactant for better wetting and easy to settle up of puddle development. Additionally to the wetting agent of the AZ® 726 MIF the AZ® 2026 MIF contains a scum remover for complete and scum-free removal of resist layers on the price of a slightly higher dark erosion ratio. However, for our negative resists, such as AZ® nLof 2000 series, AZ® 15nXT series, AZ® 125nXT resists this developer shows outstanding performance. Even for a positive resist like AZ® 10XT resist it significantly reduces t-topping if this problem occurs. AZ® 2033 MIF is 3.00 % TMAH in H2O with surfactants added for fast and homogeneous substrate wetting and further additives for removal of resist residuals (residues in certain lacquer families), but at the cost of a higher dark removal. Compared to the AZ® 2026 MIF, the normality is not 0.26 but 0.33. Thus the development rate is higher with the AZ® 2033 MIF Developer. Further Information MSDS: Safety Data Sheet AZ® 726MIF Developer english Sicherheitsdatenblatt AZ® 726MIF Entwickler german TDS: Technical Data Sheet AZ® 726MIF Developer english Application Notes: Development of Photoresist english Entwicklung von Fotolack german

Details

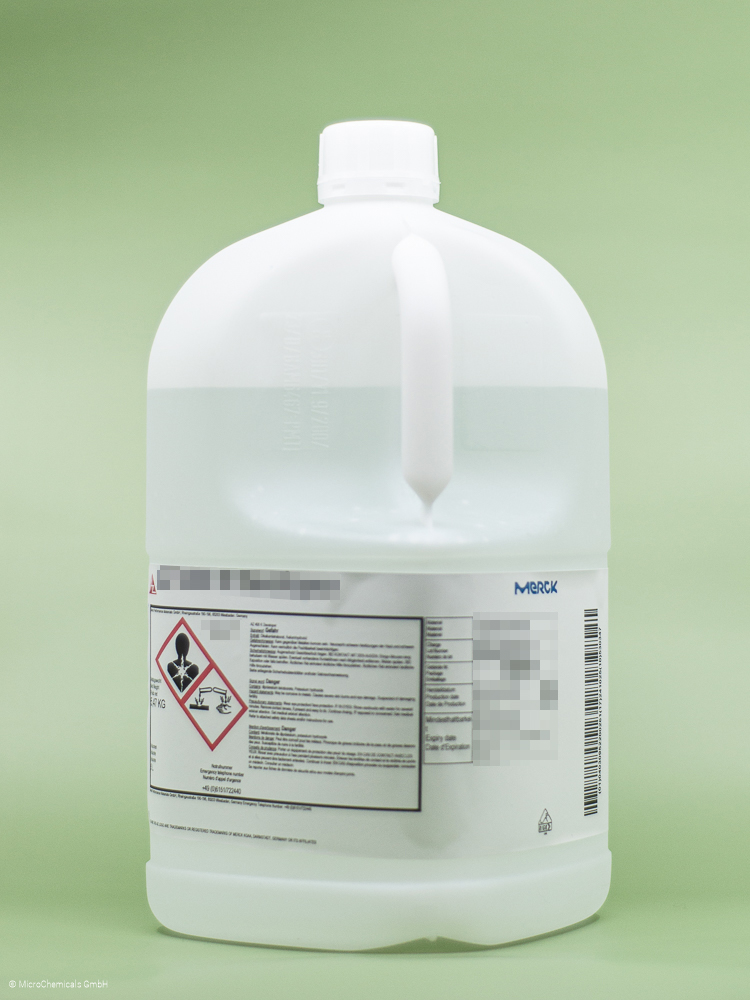

AZ 300 MIF Developer - 5.00 l
