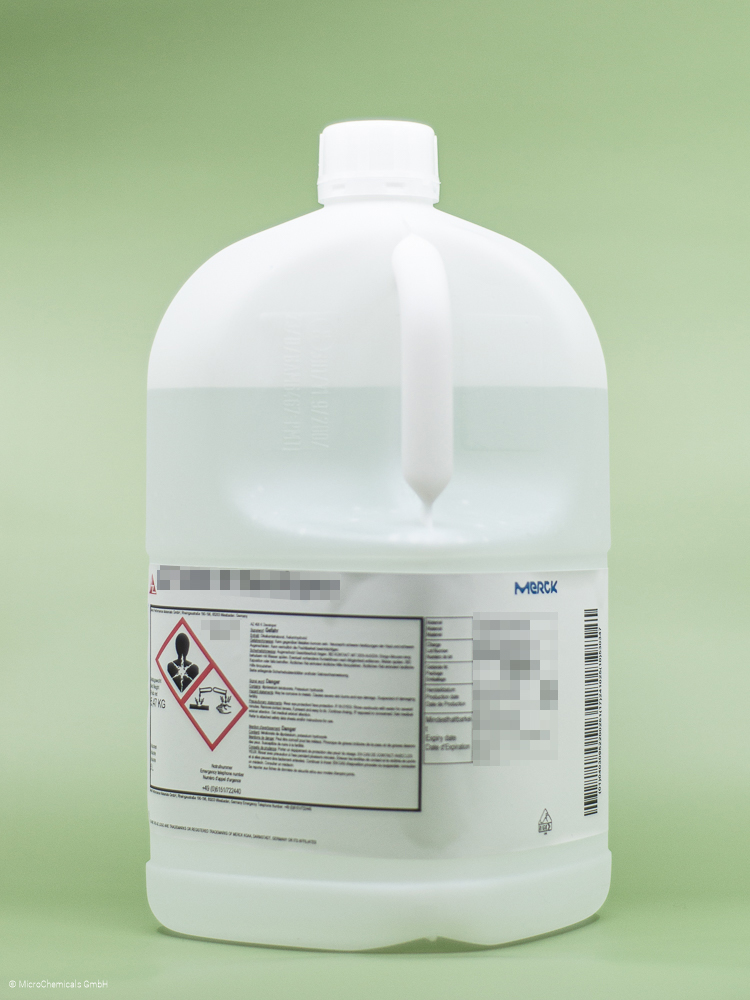

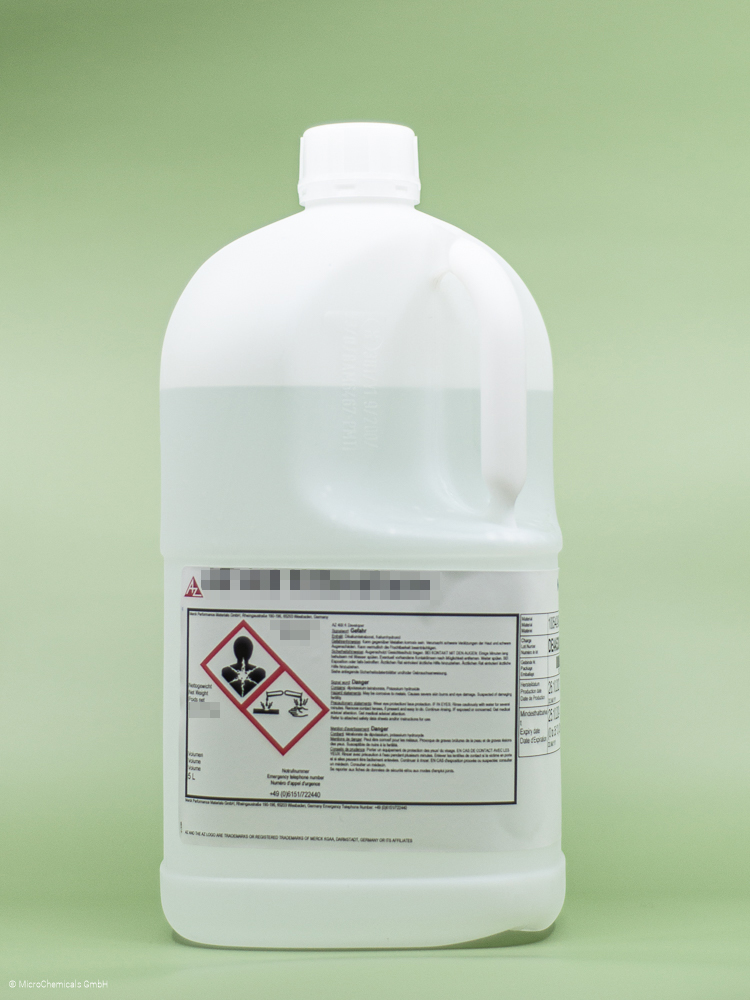

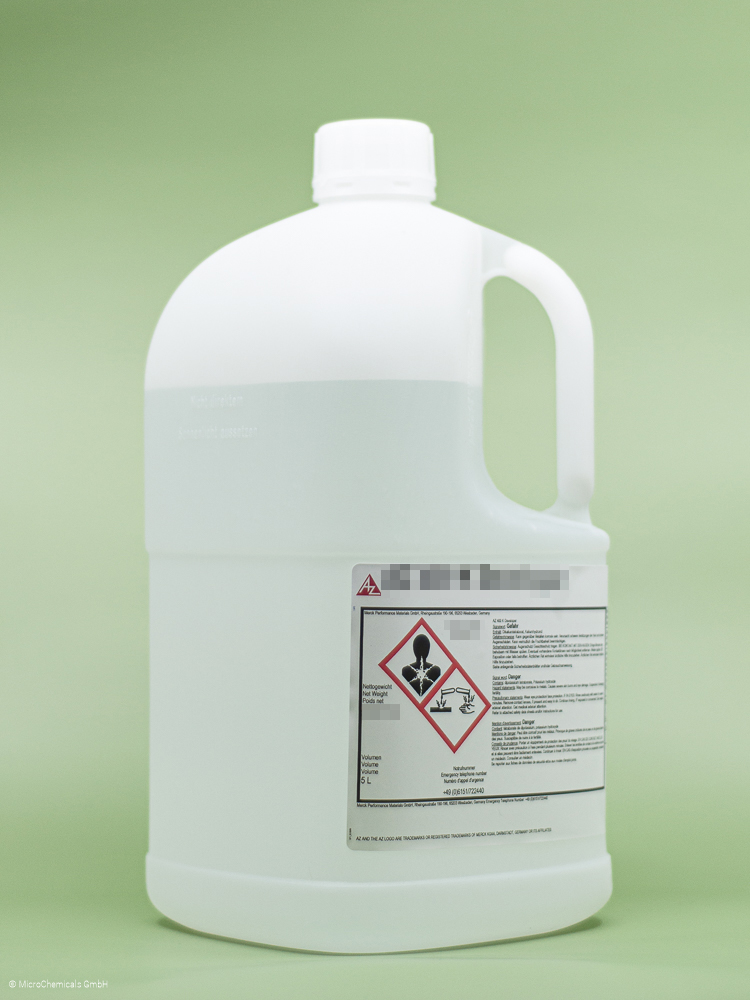

AZ 2033 MIF Developer - 5.00 l
Merck Performance Materials GmbH
AZ® 2033 MIF Developer is 3.00 % TMAH in H2O with surfactants added for fast and homogeneous substrate wetting and further additives for removal of resist residuals.
The prices are visible after registration.
Send us an inquiry if you have any questions about articles, purchase quantities, delivery times or sample requests!
Product number:
1002033
Manufacturer:
Merck Performance Materials GmbH
Product information "AZ 2033 MIF Developer - 5.00 l"
AZ® 2033 MIF Developer
Metal Ion-free Developers
General Information
AZ® 300 MIF, AZ® 326 MIF, AZ® 726 MIF and AZ® 2026 MIF Developers are developer formulations with 2.38 % TMAH (tetramethylammoniumhydroxide) in H2O.
The AZ® 726 MIF Developer contains additionally a surfactant for better wetting and easy to settle up of puddle development. Additionally to the wetting agent of the AZ® 726 MIF the AZ® 2026 MIF contains a scum remover for complete and scum-free removal of resist layers on the price of a slightly higher dark erosion ratio.
However, for our negative resists, such as AZ® nLof 2000 series, AZ® 15nXT series, AZ® 125nXT resists this developer shows outstanding performance. Even for a positive resist like AZ® 10XT resist it significantly reduces t-topping if this problem occurs.
AZ® 2033 MIF is 3.00 % TMAH in H2O with surfactants added for fast and homogeneous substrate wetting and further additives for removal of resist residuals (residues in certain lacquer families), but at the cost of a higher dark removal. Compared to the AZ® 2026 MIF, the normality is not 0.26 but 0.33. Thus the development rate is higher with the AZ® 2033 MIF Developer.
Further Information
MSDS:
Safety Data Sheet AZ® 2033 MIF Developer english
Sicherheitsdatenblatt AZ® 2033 MIF Entwickler german
TDS:
Technical Data Sheet AZ® 2033 MIF Developer english
Application Notes:
Development of Photoresist english
Entwicklung von Fotolack german
