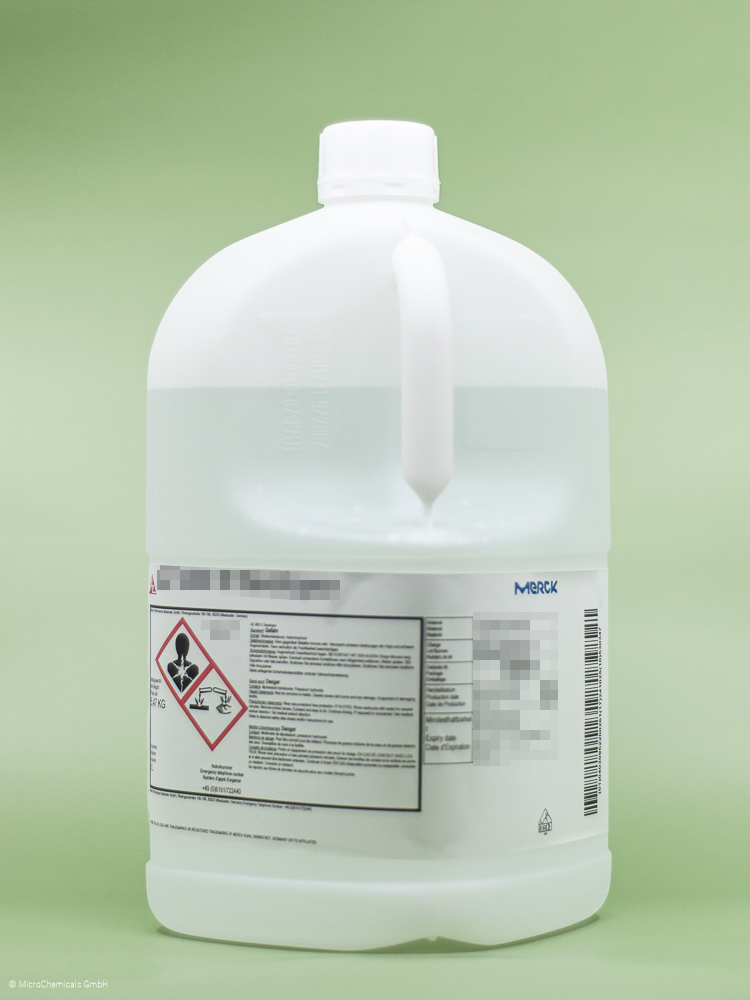

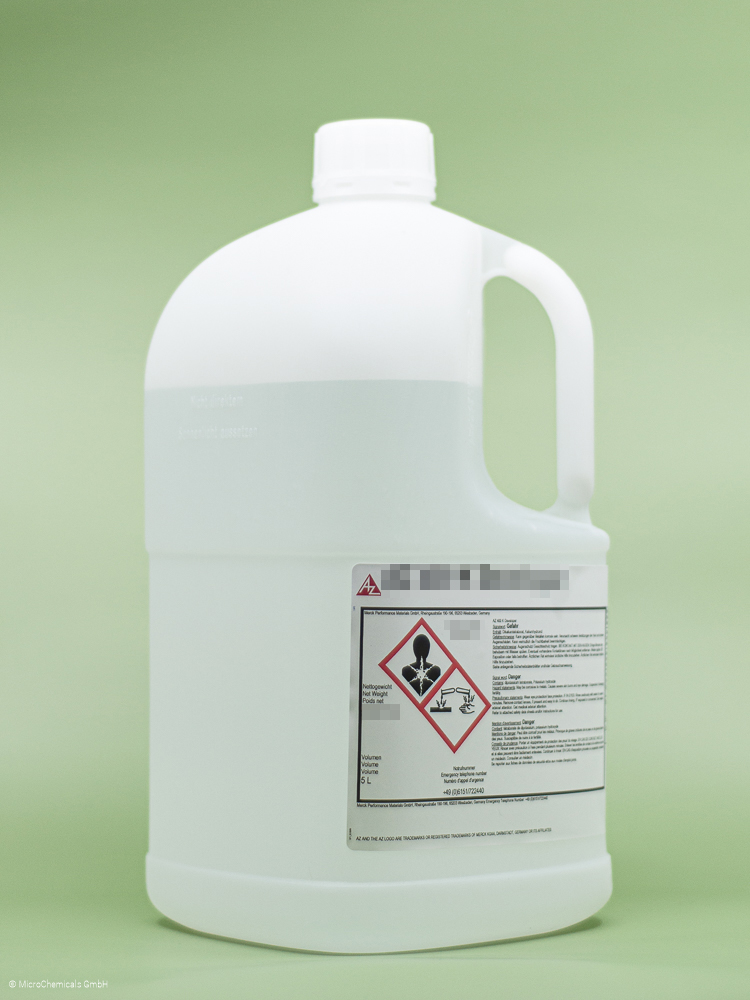

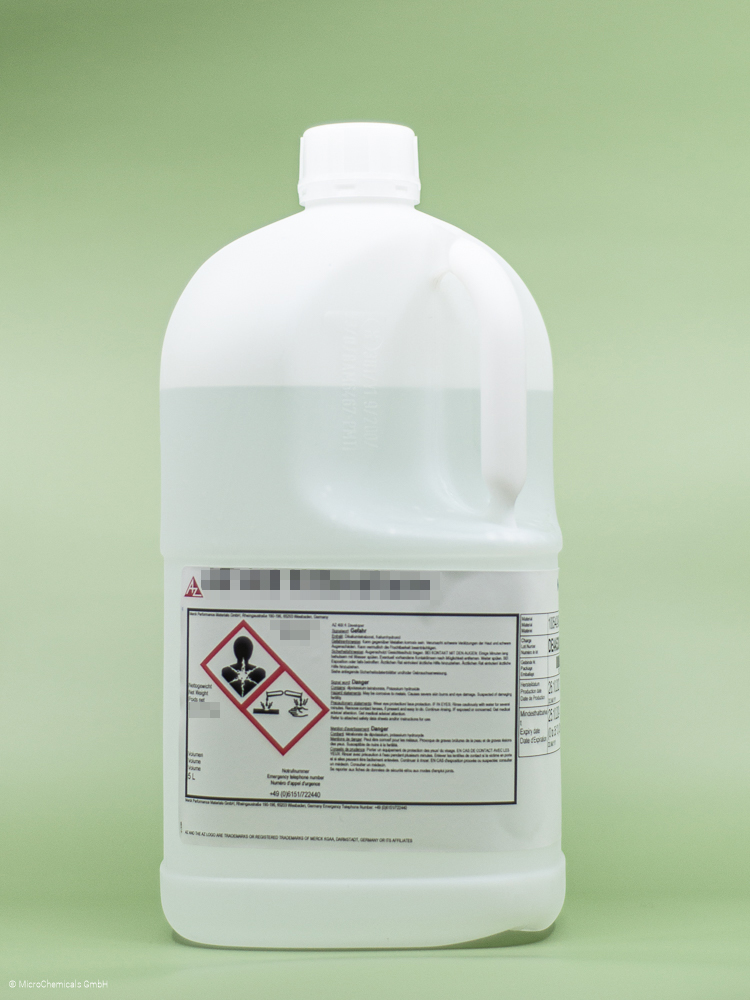

AZ 2026 MIF Developer - 5.00 l

Merck Performance Materials GmbH

AZ® 2026 MIF Developer is a developer formulation with 2.38 % TMAH (tetramethylammoniumhydroxide) in H2O.

The prices are visible after registration.

Price available after login.

Send us an inquiry if you have any questions about articles, purchase quantities, delivery times or sample requests!

Product enquiry / price on request

Product number: 1002026

Manufacturer: Merck Performance Materials GmbH

Product information "AZ 2026 MIF Developer - 5.00 l"

AZ^® 2026 MIF Developer

Metal Ion-free Developers

General Information

AZ^® 2026 MIF is a TMAH-based developer for dip or puddle development, compatible with all AZ^® photoresists from our portfolio.

Product Properties

The ready-to-use AZ^® 2026 MIF developer is an aqueous 2.38% TMAH solution with a surfactant for uniform substrate wetting for puddle development, but is also suitable for immersion development. In addition, the AZ^® 2026 MIF contains an additive to promote residue-free development with cross-linked resist structures. Since this additive slightly increases the dark erosion in positive resists, the AZ^® 2026 MIF is less suitable for these resists, especially when high resolution requirements are required; in this case, the AZ^® 326 MIF or AZ^® 726 MIF would be the better choice. TMAH-based developers are always used when development has to be carried out metal ion free. In addition, TMAH-based developers are primarily recommended for our chemically amplified positive resists and our negative resists. For standard (non chemically amplified), DNQ-based positive resists without the requirement of metal ion-free development, a KOH or NaOH-based developer such as AZ^® 400K or AZ^® 351B can be considered instead of a TMAH-based developer for cost reasons. For very thin resist layers (< 1 µm) or very high resolution requirements, it can be useful to dilute AZ^® 2026 MIF with water (AZ® 2026 MIF: water = 2:1 to a maximum of 1:1). AZ^® 2026 MIF attacks aluminum with an etching rate of approx. 70 nm/min. If this cannot be tolerated, the Al-compatible "AZ^® Developer " is an alternative, but this is based on sodium compounds and is therefore not metal ion-free.

Further Information

Our safety data sheets and some of our technical data sheets are password-protected.
You will receive the access data after completing the form.
The access data for the data sheets are not your login data from our shop!

MSDS:
Safety Data Sheet AZ^® 2026 MIF Developer english
Safety Data Sheet AZ^® 2026 MIF Developer german

TDS:
Technical Data Sheet AZ^® 2026 MIF Developer english

Application Notes:
Further Information about development of photoreist english
Further Information about development of photoresist german
