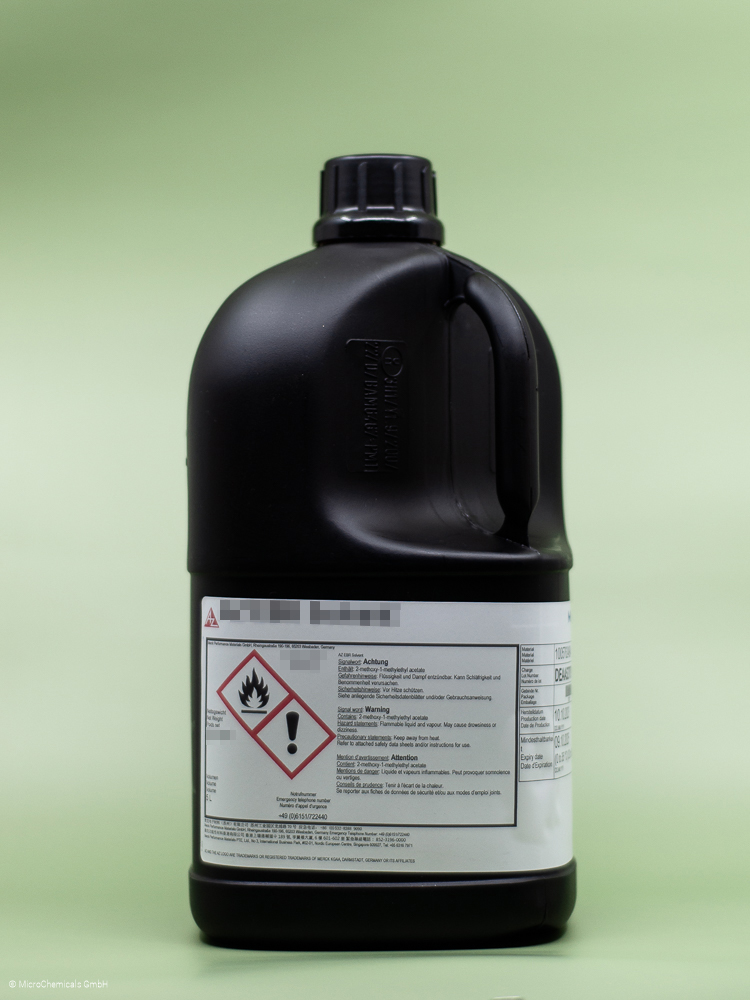

AZ 12XT-20PL-15 Photoresist - 3.785 l

AZ® 3DT-102M-15 Chemically Amplified Positive Photoresist   General Information AZ® 3DT-102M-15 is a chemically amplified positive tone photoresist with a very high aspect ratio. It is intended for the use as a mask for dry etching, ion implantation, RDL and electroplating applications (Cu-compatible). It can be used with i-line steppers as well as with conventional mask aligners. The AZ® 3DT-102M-15 is intended for a thickness range of 8 - 20 µm. Product Properties Steep sidewalls Compatible with-copper plating-processes For TSV, implantation, RDL, electroplating, dry etching Chemically amplified à PEB obligatory Compatible with most photoresist stripper (e.g. AZ® 100 Remover, organic solvent based or alkaline) i-line sensitive (can be used for broadband exposure as well) Resist film thickness range ca. 8 - 20 µm Developers The recommended developers are AZ® 326 MIF or AZ® 726 MIF for the photoresist AZ® 3DT-102M-15. Removers The recommended strippers for the AZ® 3DT-102M-15 are AZ® 920 Remover, AZ® 100 Remover, TechniStrip P1316, TechniStrip P1331 and TechniStrip MLO07. Thinning/ Edge Bead Removal We recommend for thinning the AZ® EBR Solvent. Further Information MSDS: Safety Data Sheet AZ® 3DT-102M-15 Photoresist english Sicherheitsdatenblatt AZ® 3DT-102M-15 Fotolack german TDS: Technical Data Sheet AZ® 3DT-102M-15 Photoresist english Application Notes: Further Information about Photoresist Processing

AZ® 10XT (520CPS) Thick photoresist for high resolution   General Information AZ® 10XT is an i- and h-line (not g- line !) sensitive positive thick photoresist, as the successor to the AZ® 9260 and is largely identical in construction, but with a different surfactant. In contrast to the similarly named AZ® 12XT, the AZ® 10XT is not chemically amplified.   3.0 µm lines in 12 µm thick AZ® 10XT Ultratech 1500 Exposure, AZ® 400K Developer 1:4 (260s spray)   Product Features AZ® 10XT not only has optimized resist adhesion to common substrate materials, but also the potential for very steep resist sidewalls and high aspect ratios. Accordingly, the AZ® 10XT is often used in electroplating, ion implantation or dry etching/RIE. AZ® 10XT achieves a resist film thickness of approx. 6 µm at a spin speed of 4000 rpm; with an appropriately adjusted spin profile, the resist film thickness range of approx. 4.5 - 20 µm can be covered. If thinner resist layers are desired, the AZ® 10XT can be diluted with PGMEA; alternatively, the thinner AZ® 4533 can also be used for many applications. From a resist film thickness of approximately 10 - 15 µm, processing the AZ® 10XT becomes increasingly time-consuming: the soft bake and subsequent development take longer, more and more time is needed for rehydration between soft bake and exposure, and the risk of nitrogen bubbles forming during exposure increases. For resist film thicknesses greater than 10 µm, it is recommended to consider using a chemically amplified thick resist such as AZ® 12 XT (5 - 20 µm resist film thickness) or AZ®IPS 6090 (> 20 µm resist film thickness), which have significantly shorter soft bake and development times for the corresponding resist thickness, do not need rehydration, require significantly lower exposure doses, and do not release nitrogen during exposure. Developers For development, we recommend either TMAH-based developers such as the ready-to-use AZ® 326 MIF or AZ® 726 MIF, or the KOH-based AZ® 400K 1:4 (typically 1: 4 diluted with water, for faster development also slightly stronger with 1:3.5 or 1:3). On alkaline-sensitive substrate materials such as aluminum, we recommend the aluminum-compatible, undiluted AZ® Developer. Removers If the resist structures have not been thermally cross-linked by plasma processes, ion implantation or high temperatures (> approx. 140 °C), all common removers such as AZ® 100 Remover, DMSO or many other organic solvents (e.g. Acetone rinsed with Isopropanol) are suitable for removing the resist layer. For cross-linked resist structures, high-performance strippers such as the NMP-free TechniStrip P1316 or AZ® 920 Remover are recommended, and in the case of alkaline-sensitive substrate materials (such as aluminum), the TechniStrip MLO 07. Thinning / Edge Wall Removal If the resist is to be diluted for spin coating, PGMEA = AZ® EBR Solvent is the recommended solvent. PGMEA is the solvent for AZ® 10 XT anyway and is also recommended for edge wall removal if necessary.     Further Information Our safety data sheets and some of our technical data sheets are password-protected. You will receive the access data after completing the form. The access data for the data sheets are not your login data from our shop! MSDS: Safety Data Sheet AZ® 10XT (520cps) english Safety Data Sheet AZ® 10XT (520cps) german TDS: Technical Data Sheet AZ® 10XT (520cps) english Anwendungshinweis: Further Information about Photoresist Processing

AZ® 40XT Chemically Amplified Thick Photoresist   General Information AZ® 40XT is a chemically amplified, i-line sensitive ultra-thick photoresist for high aspect ratios.   Lines and spaces varying from 100 to 10 µm with a 40 µm thick AZ® 40XT at 400 mJ/cm2 exposure dose Product Features AZ® 40XT covers a resist film thickness range of approx. 15 - 50 µm. As a chemically amplified resist, the AZ® 40XT does not require rehydration between softbake and exposure, requires significantly lower exposure doses compared to non-chemically amplified resists of comparable thickness, does not release nitrogen during exposure (no bubble formation in the resist film during exposure), and has very high development rates for a thick resist. These properties help to make the entire process significantly faster and less prone to problems than with non-chemically amplified thick resists. Its good adhesion to all common substrate materials and its potential for steep resist sidewalls make it particularly suitable for galvanic molding for e.g. Cu, Ni or Au. In principle, the AZ® 40XT is only sensitive to i-line, but with correspondingly high exposure doses and resist film thicknesses, the h-line (405 nm) can also be used. It should be noted that with these chemically amplified photoresists, the post exposure bake is not optional but mandatory in order to complete the photo reaction induced during exposure and to enable subsequent development. If thinner photoresist layers than approx. 15 µm are desired, the AZ® 40XT can easily be diluted with PGMEA = AZ® EBR Solvent. If bubbles appear in the photoresist layer during the soft bake or post exposure bake, which can occur particularly with thicker photoresist layers, either a slow temperature ramp in these baking processes or a multi-stage baking process with increasing temperatures will help. If these measures are not an option, or if the formation of bubbles cannot be avoided despite this measure, we recommend using the ultra-thick photoresist AZ® IPS 6090, which is also chemically amplified. Developers TMAH-based developers such as the ready-to-use AZ® 326 MIF or AZ® 726 MIF are recommended for developing this chemically amplified photoresist. KOH- or NaOH-based developers such as the AZ® 400K or AZ® 351B are less suitable for the AZ® 40XT. Removers If the resist structures have not been thermally cross-linked by plasma processes, ion implantation or high temperatures (> approx. 140 °C), all common removers such as AZ® 100 Remover, DMSO or many other organic solvents (e.g. acetone rinsed with isopropanol) are suitable for removing the resist layer. For cross-linked resist structures, high-performance strippers such as the NMP-free TechniStrip P1316 or AZ® 920 Remover are recommended, and in the case of alkaline-sensitive substrate materials (such as aluminum), the TechniStrip MLO 07. Thinning/ Edge Wall Removal If the resist is to be diluted for spin coating, PGMEA = AZ® EBR Solvent is an option. PGMEA is the solvent for AZ® 40XT.anyway and is also recommended for edge wall removal if necessary.     Further Information Our safety data sheets and some of our technical data sheets are password-protected. You will receive the access data after completing the form. The access data for the data sheets are not your login data from our shop! MSDS: Safety Data Sheet AZ® 40XT Photoresist english Safety Data Sheet AZ® 40XT Fotolack german TDS: Technical Data Sheet AZ® 40XT Photoresist english Application Notes: Further Information about Photoresist Processing

AZ® 4533 Thick Resists with Optimized Adhesion   General Information The AZ® 4500 series (AZ® 4533 and AZ® 4562) are positive thick resists with optimized adhesion for common wet etching and plating processes. The AZ® 4500 series follows the AZ® 1500 series in the attainable and processable resist film thickness range. AZ® 4533 (3.3 µm resist film thickness at 4000 rpm) and AZ® 4562 (6.2 µm) have a lower photoinitiator con¬centration compared to thin resists. This makes it possible to process thick resist films over 10 µm without N2 bubble formation, but at the expense of a significantly lower development rate. Product Properties Optimized resist adhesion to all common substrate materials Broad process parameter window for stable and reproducible litho-processes Compatible with all common developers (KOH- or TMAH-based) Compatible with all common strippers (e.g. with AZ® 100 Remover, organic solvents, or aqueous alkaline) g-, h- and i-line sensitive (approx. 320 - 440 nm) Resist film thickness range approx. 2.5 - 5 µm Developers If metal ion containing developers can be used the KOH-based AZ® 400K in a 1:4 dilution or the finish diluted version AZ® 400K 1:4 (for higher resist film thicknesses 1:3.5 - 1:3 diluted possible) is a suited developer. If metal ion free developers have to be used, we recommend the TMAH-based AZ® 2026 MIF developer (undiluted). Removers For non cross-linked resist films the AZ® 100 Remover, DMSO or other common organic solvents can be used as stripper. If the resist film is cross-linked (e.g. by high temperature steps > 140°C, during plasma processes such as dry etching, or during ion implantation), we recommend the NMP-free TechniStrip P1316 as remover. AZ® 920 Remover can be a good choice as well, in case of harsh treated, hard to remove resist residuals. Further Information MSDS: Safety Data Sheet AZ® 4533 Photoresist english Sicherheitsdatenblatt AZ® 4533 Fotolack german TDS: Technical Data Sheet AZ® 4533 Photoresist english Application Notes: Further Information about Photoresist Processing

AZ® 4562 Thick Resists with Optimized Adhesion   General Information The AZ® 4500 series (AZ® 4533 and AZ® 4562) are positive thick resists with optimized adhesion for common wet etching and plating processes. The AZ® 4500 series follows the AZ® 1500 series in the attainable and processable resist film thickness range. AZ® 4533 (3.3 µm resist film thickness at 4000 rpm) and AZ® 4562 (6.2 µm) have a lower photoinitiator con¬centration compared to thin resists. This makes it possible to process thick resist films over 10 µm without N2 bubble formation, but at the expense of a significantly lower development rate. A resist film thicknes up to 30 µm can be achieved by single-coating with adjusted spin profiles (short spin times at medium spin speed). Higher layer thicknesses can be achieved by multiple coating. Higher film thickness attainable with multiple coating. Please note: Resist Film Thicknesses > 30 µm Generally, the AZ® 4562 can be coated and processed up to 30 µm and beyond. However, softbake, rehydration, exposure and development become very time-consuming in this thickness range. Additionally, even the rather transparent AZ® 4562 photoresist may form N2-bubbles during exposure when applied too thick. Therefore, for resist film thicknesses > 20 µm, we strongly recommend the chemically amplified AZ® 40XT. Product Properties Optimized resist adhesion to all common substrate materials Broad process parameter window for stable and reproducible litho-processes Compatible with all common developers (KOH- or TMAH-based) Compatible with all common strippers (e.g. with AZ® 100 Remover, organic solvents, or aqueous alkaline) g-, h- and i-line sensitive (approx. 320 - 440 nm) Resist film thickness range approx. 5 - 30 µm Developers If metal ion containing developers can be used the KOH-based AZ® 400K in a 1:4 dilution or the finish diluted version AZ® 400K 1:4 (for higher resist film thicknesses 1:3.5 - 1:3 diluted possible) is a suited developer. If metal ion free developers have to be used, we recommend the TMAH-based AZ® 2026 MIF developer (undiluted). Removers For non cross-linked resist films the AZ® 100 Remover, DMSO or other common organic solvents can be used as stripper. If the resist film is cross-linked (e.g. by high temperature steps > 140°C, during plasma processes such as dry etching, or during ion implantation), we recommend the NMP-free TechniStrip P1316 as remover. AZ® 920 Remover can be a good choice as well, in case of harsh treated, hard to remove resist residuals. Thinning/ Edge Bead Removal We recommend for thinning and edge bead removal AZ® EBR Solvent. Further Information MSDS: Safety Data Sheet AZ® 4562 Photoresist english Sicherheitsdatenblatt AZ® 4562 Fotolack german TDS: Technical Data Sheet AZ® 4562 Photoresist english Application Notes: Further Information about Photoresist Processing

AZ® IPS-6090 Positive Thick Resist   General Information AZ® IPS-6090 for 30 - 150 µm Resist Film Thickness (i-line) The chemically amplified AZ® IPS-6090 is, comparable to the AZ® 40XT, an ultra thick resist whose high viscosity allows very large resist film thicknesses via a single coating. It does not require rehydration, requires low light doses, releases no nitrogen during exposure, and develops very rapidly, thus permitting significantly shorter process times compared to standard thick resist films. However, the AZ® IPS-6090 necessarily requires a post exposure bake to be developed. It has been developed for use as patterning in semiconductors advanced packaging application (3DIC/TSV, CU Pillar, WLCSP, MEMS).   IPS 6050 (80 µm resist film thickness) Product Properties Very high resolution High aspect ratio Low exposure dose for the thickness of the film Straight pattern profile and footing free i-line sensitive, 330 – 390 nm Film thickness range: 30 - 150 µm Suited for applications such as electro chemical deposition / plating of Cu RDL in WLCSP process Electro chemical deposition / plating of Cu, Ni, Sn, SnAg, Au for 3DIC, FO and Flipchip processing Sacrificial layer for Si etching process in TSV Sacrificial layer for SiO2 or SiN etching process in CMOS sensor processing Developers We recommend AZ® 326 MIF Developer or AZ® 726 MIF Developer (this one contains surfactants) for the photoresist AZ® IPS-6090. Removers For non cross-linked resist films the AZ® 100 Remover, DMSO or other common organic solvents can be used as stripper. If the resist film is cross-linked (e.g. by high temperature steps > 140°C, during plasma processes, such as dry etching, or during ion implantation), we recommend the NMP-free TechniStrip P1316 as remover or the TechniStrip P1331. Thinning/ Edge Bead Removal We recommend for thinning and edge bead removal AZ® EBR Solvent or PGMEA. AZ® EBR70/30 Solvent is possible as well for edge bead removal. Further Information MSDS: Safety Data Sheet AZ® IPS-6090 Photoresist english Sicherheitsdatenblatt AZ® IPS-6090 Fotolack german TDS: Technical Data Sheet AZ® IPS-6090 english Information AZ® IPS-6090 english Application Notes: Further Information about Photoresist Processing

AZ® P4110 Positive Thick Resist - AZ® P4110, AZ® P4330, AZ® P4903, AZ® P4620   General Information The AZ® P4000 positive resist series with its members AZ® P4110, AZ® P4330, AZ® P4620 and AZ® P4903 have two main characteristics: An improved adhesion to all common substrates for a higher stability for e.g. wet etching or plating and a lower photo active compound concentration, which allows the application of thick and very thick resist films (approx. 1 - 30 µm). This resist series have a medium thermal stability and can be developed with common KOH or TMAH based developers. Product Properties Resist film thickness: 0.9 - 1.3 µm Steep wall profiles, high aspect ratios Sensitive to g-, h-, and i-line Recommended developers: KOH-based (e.g. AZ® 400K) or TMAH-based (e.g. AZ® 2026 MIF) Standard strippers (e.g. AZ® 100 Remover, TechniStrip P1316) Thinner and edge bead remover: AZ® EBR Solvent or PGMEA Developers If metal ion containing developers can be used the KOH-based AZ® 400K in a 1:4 dilution or the finish diluted version AZ® 400K 1:4 (for higher resist film thicknesses 1:3.5 - 1:3 diluted possible) is a suited developer. If metal ion free developers have to be used, we recommend the TMAH-based AZ® 2026 MIF developer (undiluted). Removers For non cross-linked resist films the AZ® 100 Remover, DMSO or other common organic solvents can be used as stripper. If the resist film is cross-linked (e.g. by high temperature steps > 140°C, during plasma processes, such as dry etching, or during ion implantation), we recommend the NMP-free TechniStrip P1316 as remover. AZ® 920 Remover can be a good choice as well in case of harsh treated or hard to remove resist residuals. Thinning/ Edge Bead Removal We recommend for thinning and edge bead removal AZ® EBR Solvent or PGMEA. AZ® EBR70/30 Solvent is possible as well for edge bead removal. Further Information MSDS: Safety Data Sheet AZ® P4110 Photoresist english Sicherheitsdatenblatt AZ® P4110 Fotolack german TDS: Technical Data Sheet AZ® P4000 Series english Information AZ® P400 Series english Application Notes: Further Information about Photoresist Processing

AZ® P4620 Positive Thick Resist - AZ® P4110, AZ® P4330, AZ® P4903, AZ® P4620   General Information The AZ® P4000 positive resist series with its members AZ® P4110, AZ® P4330, AZ® P4620 and AZ® P4903 have two main characteristics: An improved adhesion to all common substrates for a higher stability for e.g. wet etching or plating and a lower photo active compound concentration, which allows the application of thick and very thick resist films (approx. 1 - 30 µm). This resist series have a medium thermal stability and can be developed with common KOH or TMAH based developers.   AZ® P4620 (15µm holes at 24µm film thickness for Au plating) Product Properties Optimized resist adhesion to all common substrate materials Broad process parameter window for stable and reproducible litho-processes Compatible with all common developers (KOH- or TMAH-based) Compatible with all common strippers (e. g. with AZ® 100 Remover, organic solvents or aqueous alkaline) g-, h- and i-line sensitive (approx. 320 - 440 nm) Resist film thickness range approx. 5 - 30 µm Developers If metal ion containing developers can be used the KOH-based AZ® 400K in a 1:4 dilution or the finish diluted version AZ® 400K 1:4 (for higher resist film thicknesses 1:3.5 - 1:3 diluted possible) is a suited developer. If metal ion free developers have to be used, we recommend the TMAH-based AZ® 2026 MIF developer (undiluted). Removers For non cross-linked resist films the AZ® 100 Remover, DMSO or other common organic solvents can be used as stripper. If the resist film is cross-linked (e.g. by high temperature steps > 140°C, during plasma processes, such as dry etching, or during ion implantation), we recommend the NMP-free TechniStrip P1316 as remover. AZ® 920 Remover can be a good choice as well in case of harsh treated or hard to remove resist residuals. Thinning/ Edge Bead Removal We recommend for thinning and edge bead removal AZ® EBR Solvent or PGMEA. AZ® EBR 70/30 Solvent is possible as well for edge bead removal. Further Information MSDS: Safety Data Sheet AZ® P4620 Photoresist english Sicherheitsdatenblatt AZ® P4620 Fotolack german TDS: Technical Data Sheet AZ® P4620 Photoresist english Technical Data Sheet AZ® P4000 Series english Information AZ® P400 Series english Application Notes: Further Information about Photoresist Processing

AZ® P4903 Positive Thick Resist - AZ® P4110, AZ® P4330, AZ® P4903, AZ® P4620   General Information The AZ® P4000 positive resist series with its members AZ® P4110, AZ® P4330, AZ® P4620 and AZ® P4903 have two main characteristics: An improved adhesion to all common substrates for a higher stability for e.g. wet etching or plating and a lower photo active compound concentration, which allows the application of thick and very thick resist films (approx. 1 - 30 µm). This resist series have a medium thermal stability and can be developed with common KOH or TMAH based developers. Product Properties Optimized resist adhesion to all common substrate materials Broad process parameter window for stable and reproducible litho-processes Compatible with all common developers (KOH- or TMAH-based) Compatible with all common strippers (e.g. with AZ® 100 Remover, organic solvents or aqueous alkaline) g-, h- and i-line sensitive (approx. 320 - 440 nm) Resist film thickness range approx. 10 - 35 µm Developers If metal ion containing developers can be used the KOH-based AZ® 400K in a 1:4 dilution or the finish diluted version AZ® 400K 1:4 (for higher resist film thicknesses 1:3.5 - 1:3 diluted possible) is a suited developer. If metal ion free developers have to be used, we recommend the TMAH-based AZ® 2026 MIF developer (undiluted). Removers For non cross-linked resist films the AZ® 100 Remover, DMSO or other common organic solvents can be used as stripper. If the resist film is cross-linked (e.g. by high temperature steps > 140°C, during plasma processes, such as dry etching, or during ion implantation), we recommend the NMP-free TechniStrip P1316 as remover. AZ® 920 Remover can be a good choice as well in case of harsh treated or hard to remove resist residuals. Thinning/ Edge Bead Removal We recommend for thinning and edge bead removal AZ® EBR Solvent or PGMEA. AZ® EBR70/30 Solvent is possible as well for edge bead removal. Further Information MSDS: Safety Data Sheet AZ® P4903 Photoresist english Sicherheitsdatenblatt AZ® P4903 Fotolack german TDS: Technical Data Sheet AZ® P4000 Series english Information AZ® P400 Series english Application Notes: Further Information about Photoresist Processing

AZ® PL 177 Positive Thick Resist   General Information AZ® PL 177 is a positive tone liquid photoresist for the application in various coating techniques, especially for printed circuit boards manufacturing. AZ® PL 177 is dyed with a blue/violet colour for easy inspection after coating. It can be used for spin coating as well as for dip coating or for spray- or roller-coating. It is especially suited for wet chemical etching due to its outstanding adhesion properties and chemical stability. It is a general purpose resist and fits to all applications where high resolution and high thermal stability are not important. The AZ® PL 177 is a more inexpensive resist for lower demands regarding resolution and sidewall steepness. With a resist film thickness of approx. 5 µm at 4000 rpm, a resolution of approx. 4 - 5 µm is possible. Product Properties Good drying behaviour Aqueous-alkaline process ability PGMEA based formulation Very good adhesion properties to many types of substrates Blue/violet coloured for easy inspection Compatible with all common strippers (e.g. with AZ® 100 Remover, organic solvents, or aqueous alkaline) g-, h- and i-line sensitive (approx. 320 - 440 nm) Resist film thickness range approx. 4 - 8 µm Developers As a developer, we recommend the NaOH-based AZ® 351B, the KOH-based AZ® 400K or TMAH-based devel¬oper such as the AZ® 2026 MIF. AZ Developer and even simple aqueous KOH or NaOH solutions can be used. Removers For non cross-linked resist films the AZ® 100 Remover, DMSO or other common organic solvents can be used as stripper. If the resist film is cross-linked (e.g. by high temperature steps > 140°C, during plasma processes, such as dry etching, or during ion implantation), we recommend the NMP-free TechniStrip P1316 as remover. AZ® 920 Remover can be a good choice as well in case of harsh treated or hard to remove resist residuals. Thinning/ Edge Wall Removal We recommend for thinning and edge bead removal AZ® EBR Solvent, PGMEA or MEK. AZ® EBR 70/30 Solvent is possible as well for edge bead removal. Further Information Our safety data sheets and some of our technical data sheets are password-protected. You will receive the access data after completing the form. The access data for the data sheets are not your login data from our shop! MSDS: Safety Data Sheet AZ® PL177 Photoresist english Safety Data Sheet AZ® PL177 Photoresist german TDS: Technical Data Sheet AZ® PL177 Photoresist english Application Notes: Further Information about Photoresist Processing
